24V Vacuum Pump 3–6LPM Low Vibration -70kPa Miniature Diaphragm Air Pump BD-03VB BODENFLO

Designed for compact suction, air sampling, and negative-pressure applications, the BD-03VB Series combines a 24V brushless motor, 3–6 L/min airflow, and up to –70 kPa vacuum in a compact diaphragm pump platform. Three performance options are available for different vacuum and airflow requirements.

BD-03V3L Technical Specifications:

• Name: 24V Vacuum Pump
• Model: BD-03V3L
• Rated Voltage: 24V DC
• Current: ≤0.15 A
• Max Vacuum: ≥–65 kPa (–0.065 MPa / –9.43 psi)
• Max Flow: ≥3 L/min (3 LPM / 180 L/H)
• Noise: ★

BD-03V4L Technical Specifications:

• Name: Miniature Diaphragm Air Pump
• Model: BD-03V4L
• Rated Voltage: 24V DC
• Current: ≤0.2 A
• Max Vacuum: ≥–70 kPa (–0.07 MPa / –10.15 psi)
• Max Flow: ≥4 L/min (4 LPM / 240 L/H)
• Noise: ★★

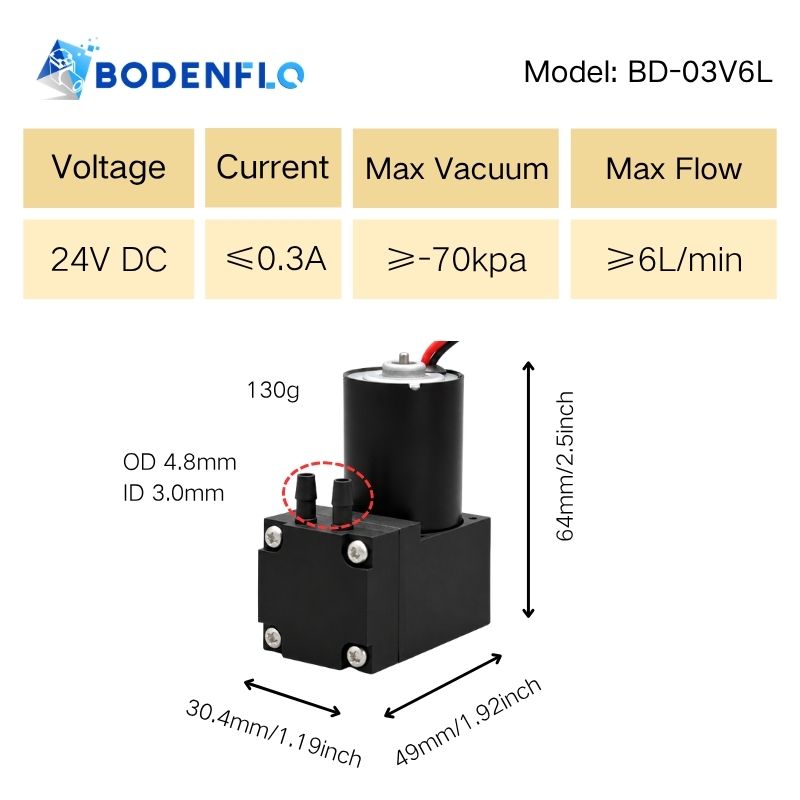

BD-03V6L Technical Specifications:

• Name: Micro Air Pump
• Model: BD-03V6L
• Rated Voltage: 24V DC
• Current: ≤0.3 A
• Max Vacuum: ≥–70 kPa (–0.07 MPa / –10.15 psi)
• Max Flow: ≥6 L/min (6 LPM / 360 L/H)
• Noise: ★★★

Important: Maximum flow and maximum vacuum represent different operating points. The pump does not deliver its maximum rated flow at maximum vacuum. For final selection, use the required working flow at the actual system vacuum level.

General Specifications

• Motor Type: DC Brushless Motor
• Pump Head: Nlyon
• Valve/Diaphragm Material: EPDM

• Life Time: 3000-5000 Hours
• Noise: ≤58-65dB

• Working Mode: Intermittent
• Dimension: 64 × 49 × 30 mm (2.52 × 1.93 × 1.18 inch)
• Weight: Approx. 130 g
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

Product Showcase Video

Video link: BD-03VB Brushless Vacuum Pump Youtube video

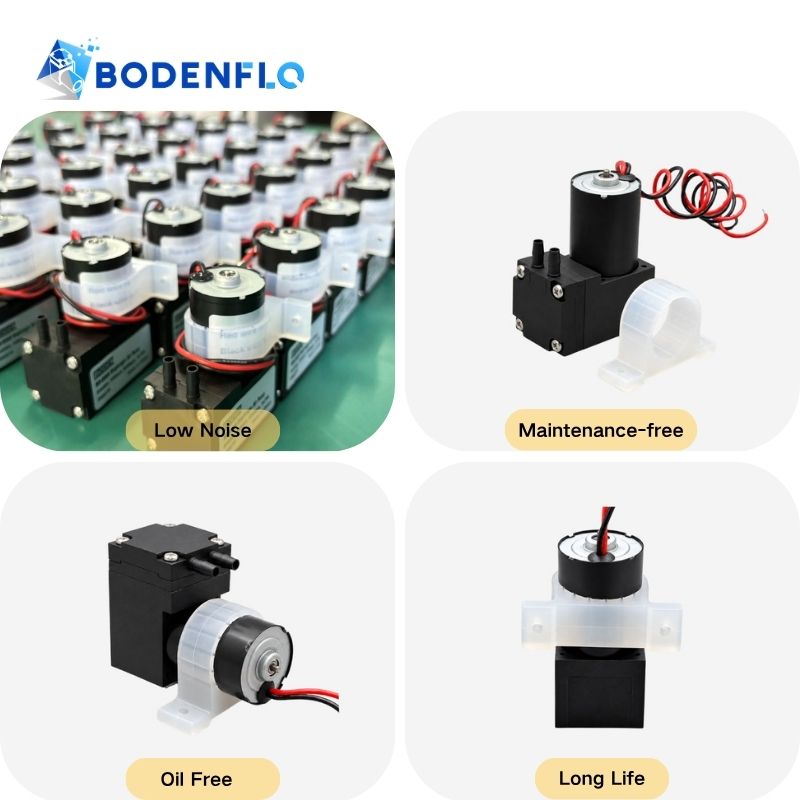

Key Features of 24V Brushless Vacuum Pump

• Longer Service Life: Brushless DC motor reduces motor wear and provides a service life of 3,000–5,000 hours.
• Up to –70 kPa Vacuum: Provides strong suction for compact vacuum, sampling, and air-extraction systems.
• 3–6 L/min Flow Options: Choose from 3, 4, or 6 L/min models to match different vacuum and airflow requirements.

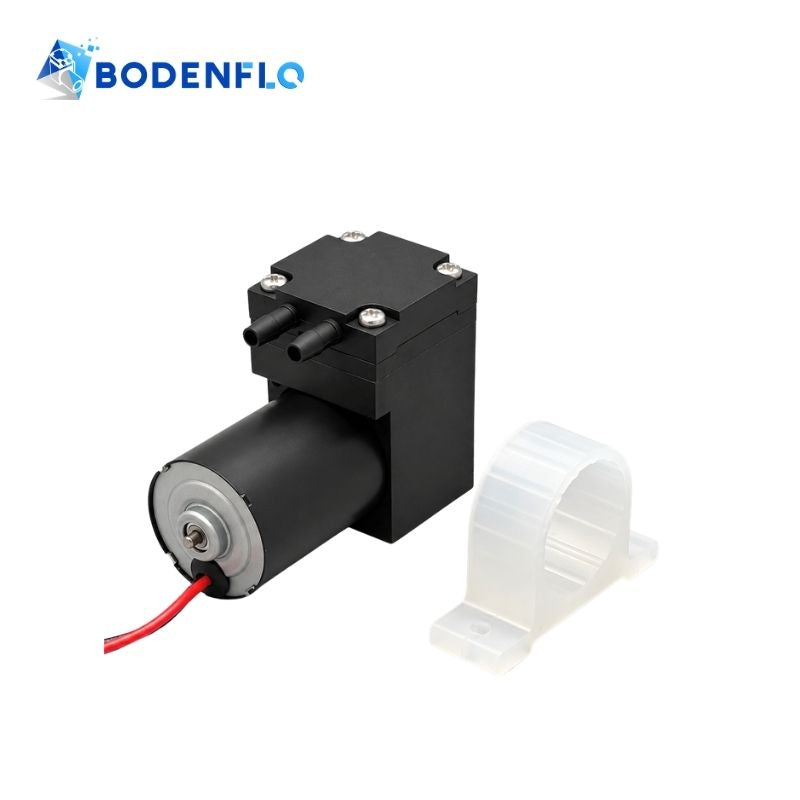

• Easy Installation: Includes a silicone mounting bracket for flexible mounting positions and orientations.
• Reduced Vibration & Noise: Silicone mount helps isolate pump vibration and reduce noise transmitted to the equipment.
• Oil-Free Air Path: No lubricating oil is required in the pumping chamber, helping maintain a clean air path.


Common Applications:

• Air & Gas Sampling: Provides vacuum and airflow for environmental monitoring, gas analysis, and sampling equipment.
• Compact Vacuum Systems: Generates negative pressure for small vacuum and air-extraction systems.
• Vacuum Holding: Provides suction for lightweight holding and handling applications within the pump's operating range.
• Testing & Analytical Equipment: Supplies vacuum and controlled airflow for instruments and measurement systems.

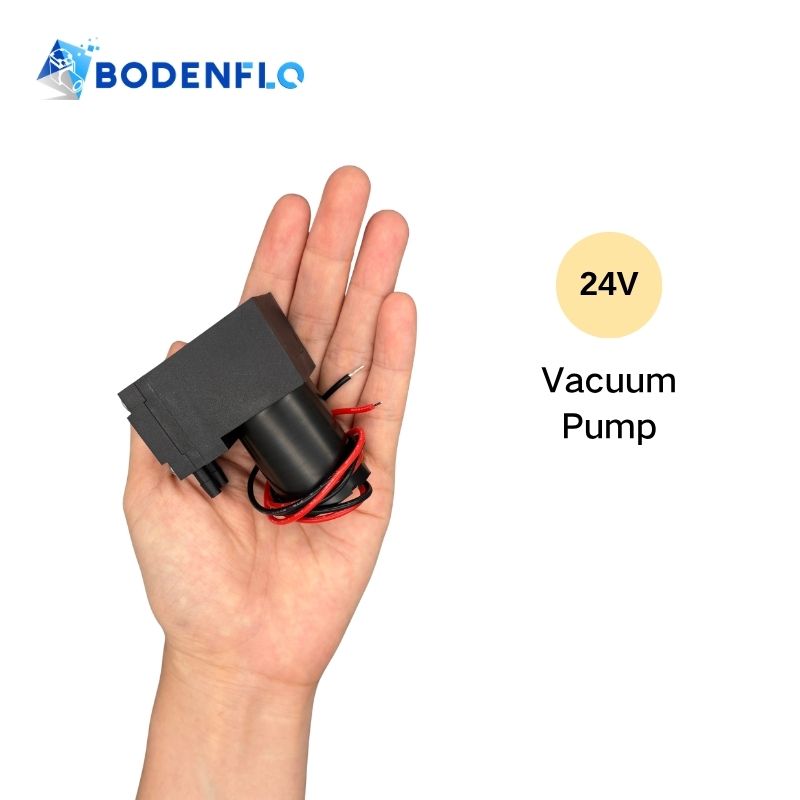

• Portable Equipment: Compact size and 24V DC power simplify integration into space-limited devices.


Package & Shipping

• Package Includes: 1 × Micro Vacuum Pump + 1 × Silicone Mounting Bracket
• Lead Time: Typically 3–5 working days for standard orders.
• Shipping: DHL or FedEx express shipping available.
