5V Micro Sampling Pump with Ultra-Small for Analyzer BD-05T02500B BODENFLO

The BD-05T02500B is a 5V brushless micro diaphragm gas sampling pump designed for precision applications. With ultra-low power consumption and a compact structure, it is ideal for gas analyzers, environmental monitoring, and laboratory instruments. The pump ensures stable flow, low noise, and long lifespan, making it perfect for continuous sampling needs. Built with an EPDM diaphragm and brushless motor, it provides reliable and oil-free operation, ensuring clean gas transfer.

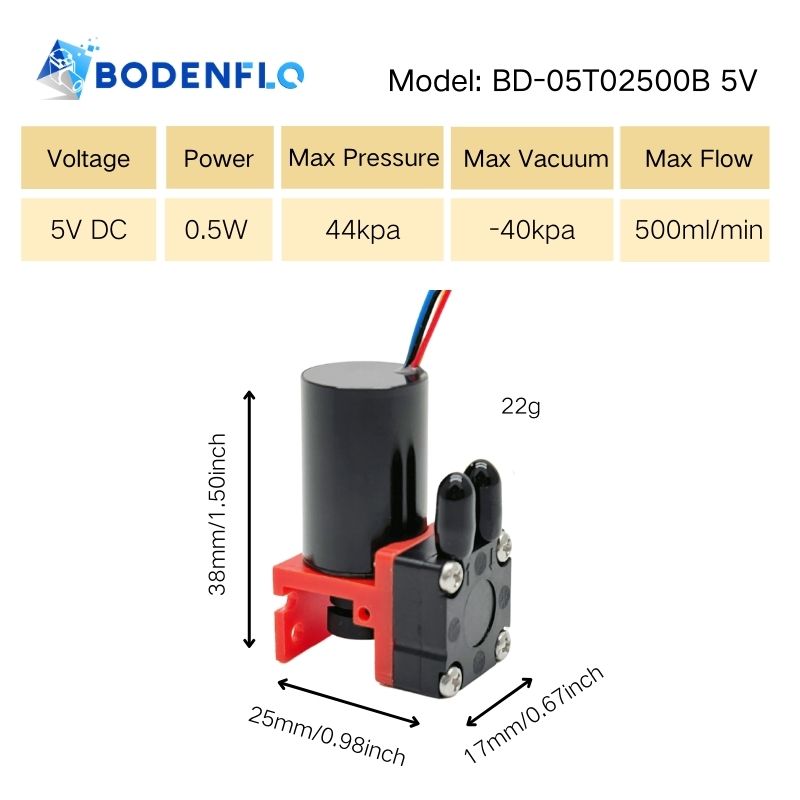

BD-05T02500B 5V Technical Specifications:

• Name: Gas Sample Pump
• Model: BD-05T02500B 5V
• Rated Voltage: 5V DC
• Power: 0.5W
• Max Pressure: ≥44 kPa ( 0.44bar/ 0.44MPa / 6.3816psi)
• Max Vacuum: ≥-40 kPa ( -300mmHg /0.04MPa )
• Max Flow: ≥500ml/min ( 0.5LPM / 30L/H)
• Noise:★

General Specifications

• Motor Type: DC Brushless Motor
• Diaphragm Material: EPDM
• Life time: 8000 Hours
• Noise: ≤55dB
• Dimension: 38*17*25mm
• Weight: 22g(approx.)
• Storage temperature: -40℃~60℃
• Operating environment: -20℃~50℃

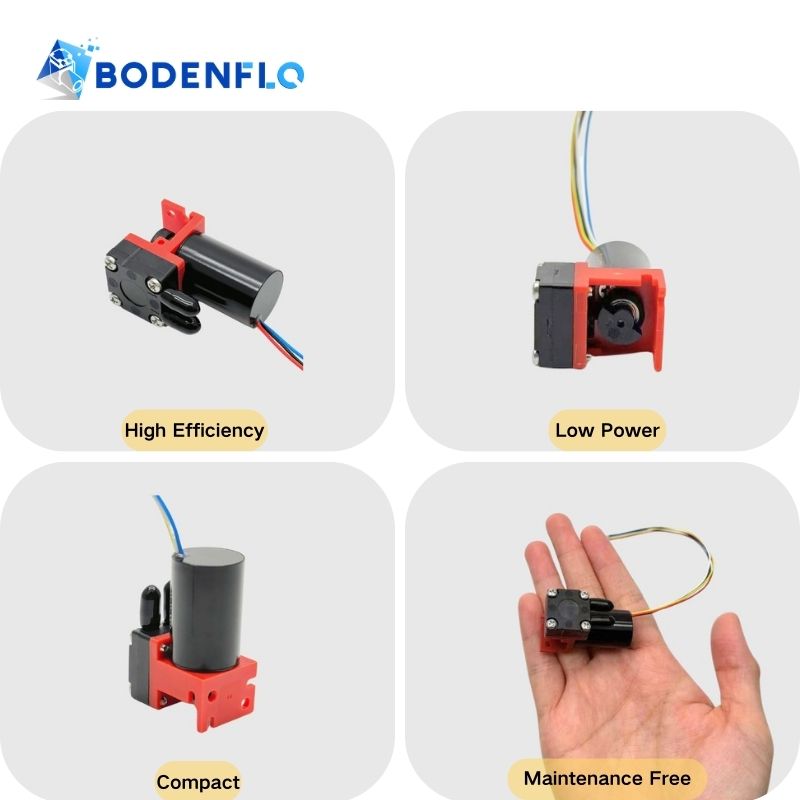

Key Features of Gas Sample Pump:

• Wide Operating Temperature Range: Designed to function effectively in diverse environments.
• Stable & Consistent Flow: Ensures reliable vacuum pressure for precise applications.
• Ultra-Small Size: Space-saving design allows for easy installation in tight spaces.
• Brushless Motor Design: Ensures longer lifespan, low maintenance, and stable operation.
• Low Noise Levels: Engineered for quieter operation with minimal vibration.

Common Applications:

• Portable Air Samplers: Enables compact air sampling devices to collect and analyze airborne particles for environmental and workplace safety assessments.
• Gas Leak Detection Systems: Enhances real-time monitoring in industrial plants, residential buildings, and gas pipelines to detect hazardous leaks.
• Environmental Monitoring Equipment: Integrated into air quality monitoring systems to detect pollutants and ensure regulatory compliance.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
