5V Micro Sampling Pump Ultra Compact for Portable Analyzers BD-05T02500 BODENFLO

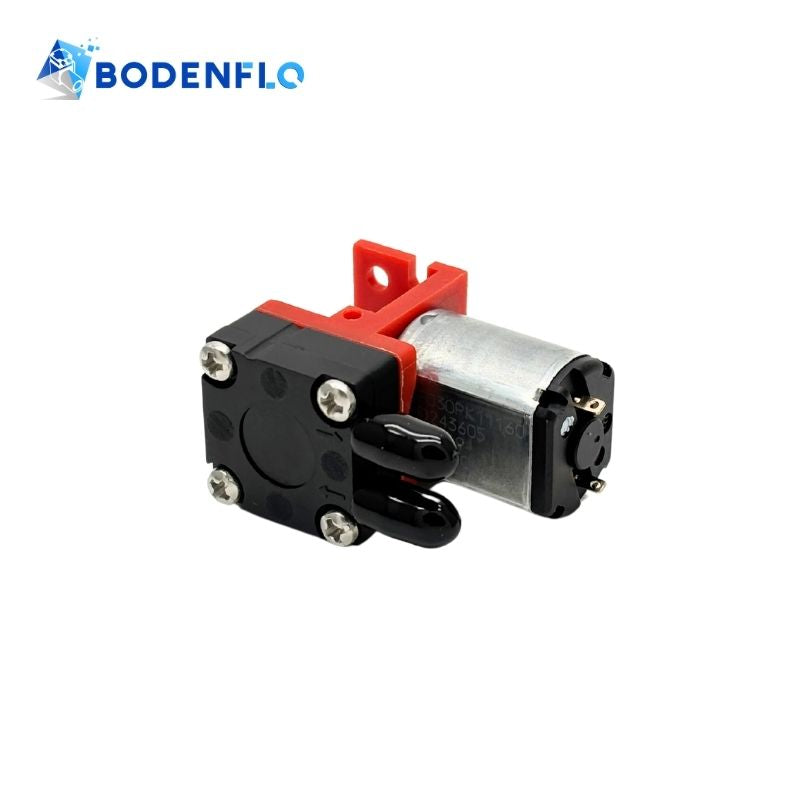

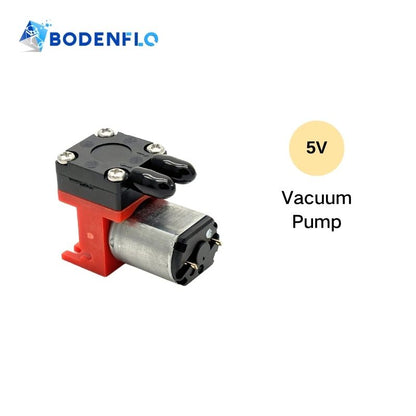

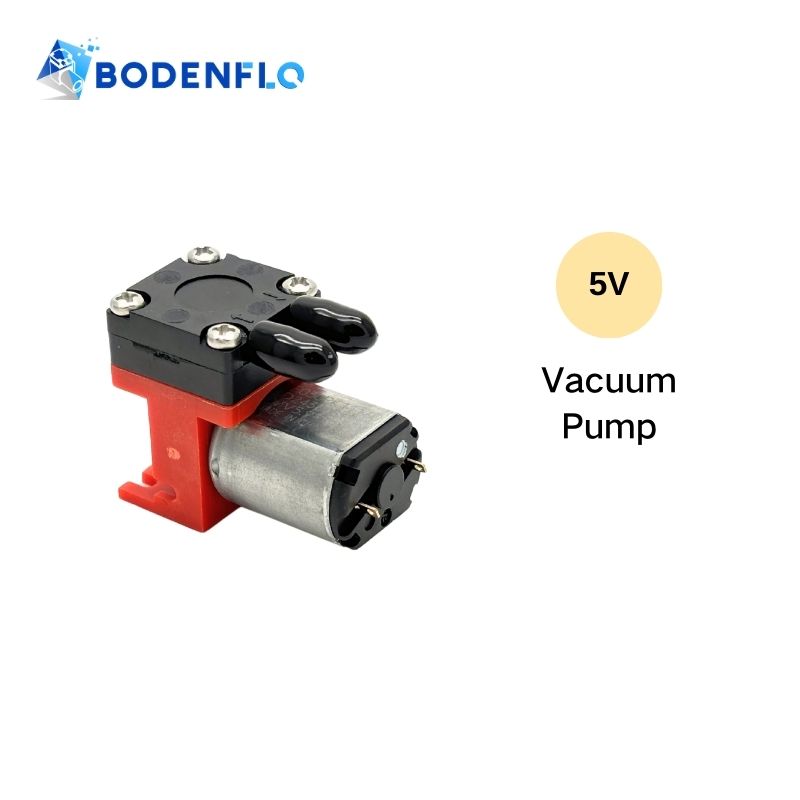

The BD-05T02500 is an ultra-compact 5V micro diaphragm gas sampling pump designed for precise air sampling in portable analyzers and handheld detectors. Weighing only 16g and with a body size of just 31×17×25mm, this small gas sample pump is engineered for low-power, low-noise, and long-term stable performance. Ideal for applications requiring micro negative pressure and stable flow, it is a trusted solution for air quality monitoring, gas detection, and other precision instruments.

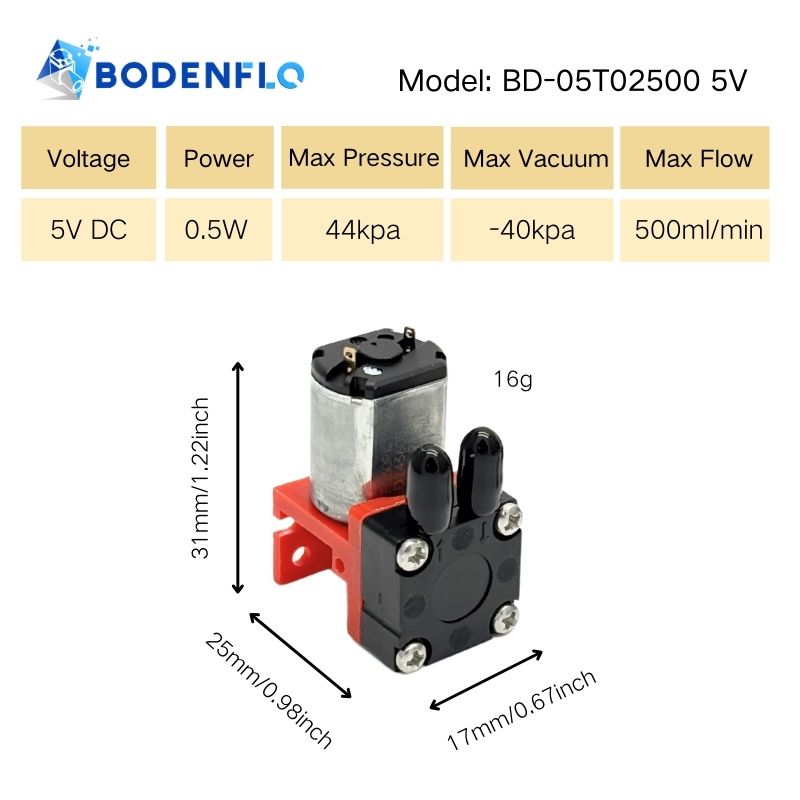

BD-05T02500 5V Technical Specifications:

• Name: Micro Sample Pump
• Model: BD-05T02500 5V
• Rated Voltage: 5V DC
• Power : 0.5W
• Max Pressure: >44 kPa ( 0.44bar/ 0.44MPa / 6.3816psi)
• Max Vacuum: >-40 kPa ( -300mmHg /0.04MPa )
• Max Flow: > 500ml/min ( 0.5LPM / 30L/H)
• Noise:★

General Specifications

• Motor Type: DC Brushed Motor
• Diaphragm Material: EPDM
• Life Time: 2000 Hours
• Noise: ≤55dB
• Dimension: 31*17*25mm
• Weight: 16g(approx.)
• Storage Temperature: -40℃~60℃
• Operating Environment: -20℃~45℃

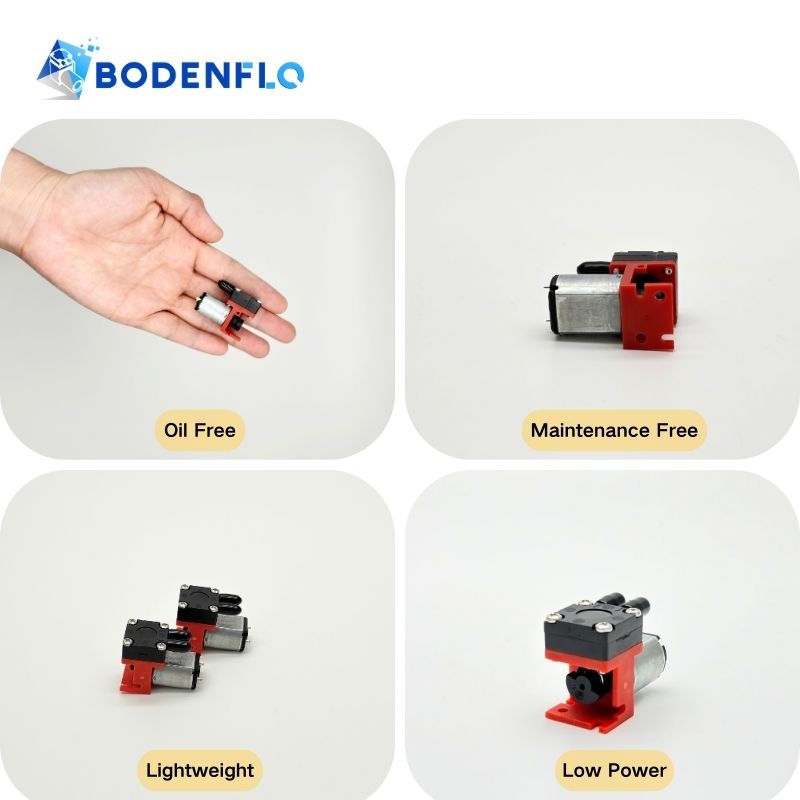

Key Features of Small Gas Sample Pump:

• Extremely compact: Designed for space-limited equipment and handheld instruments.
• Lightweight build: Reduces the load of portable and wearable gas analyzers.
• Low energy consumption: Ideal for battery-powered and mobile devices.
• Quiet operation: Generates minimal noise for use in sensitive or indoor environments.
• Stable air suction: Ensures consistent performance for gas sensor readings.
• Oil-free diaphragm system: Delivers clean and uncontaminated air samples.

Common Applications:

• Handheld air quality analyzers: Built into portable gas detectors to provide consistent air intake for real-time analysis.
• VOC detection devices: Draws ambient air to detect volatile organic compounds in industrial or indoor environments.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China
