6V Diaphragm Liquid Pump Compact Design Liquid Analysis BD-02WB BODENFLO

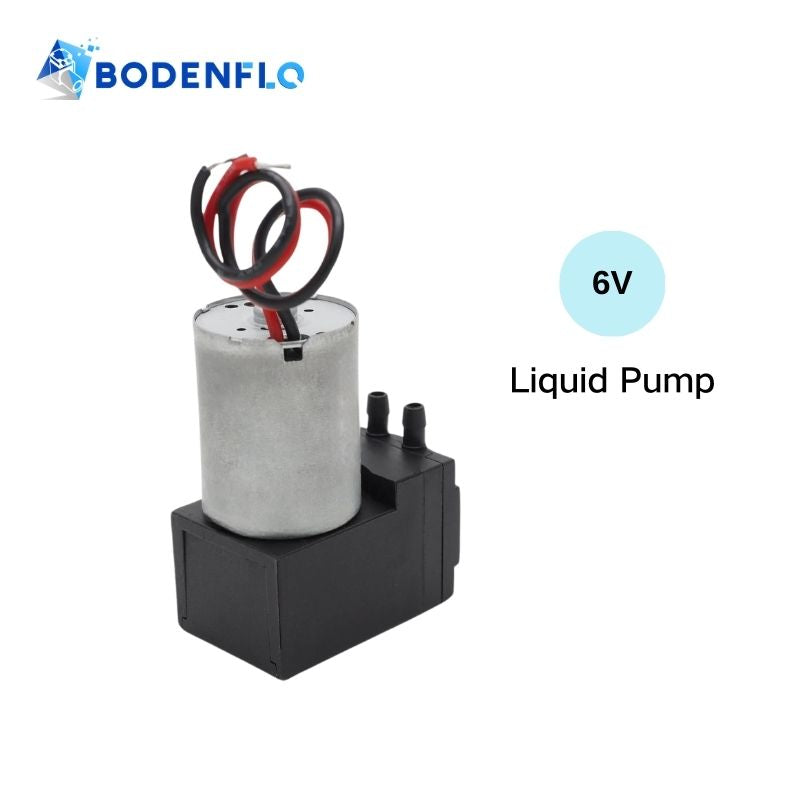

BD-02WB micro water pump is engineered for high efficiency and reliability in a compact form factor. Featuring a brushless motor and EPDM diaphragm, this pump delivers a maximum flow rate of 300 ml/min while maintaining a low noise level of ≤50 dB. With a robust design suitable for various applications, it operates effectively within a temperature range of 0-40℃. Ideal for both commercial and personal use, this micro pump is the perfect solution for projects requiring precise fluid handling in tight spaces.

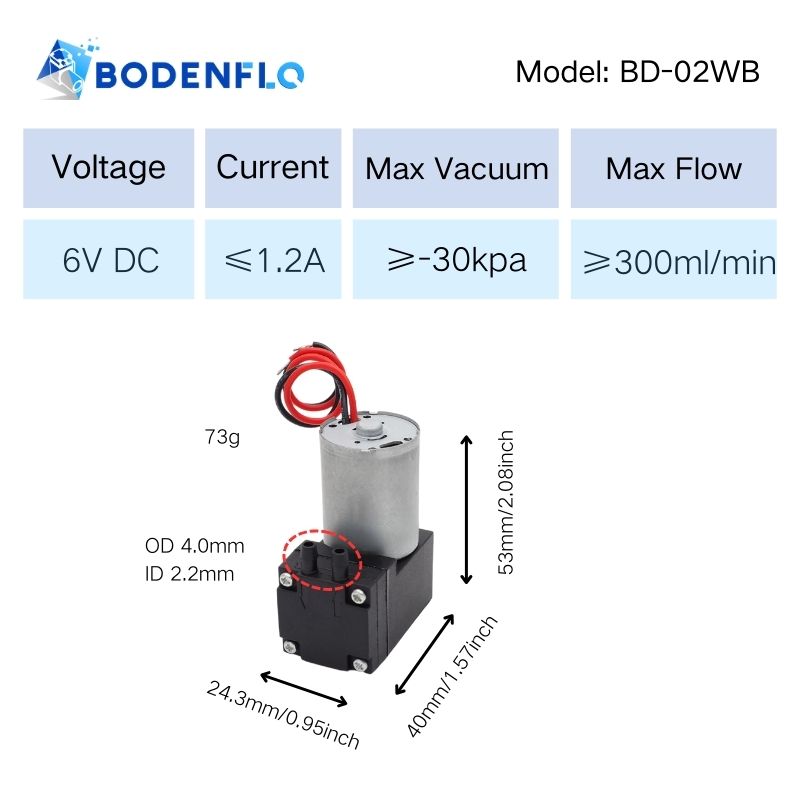

BD-02WB Technical Specifications:

• Name: Micro Water Pump
• Medium: Water
• Model: BD-02WB
• Rated Voltage: 6V DC
• Current : ≤1.2A
• Max Vacuum: ≥-30 kPa ( -0.03 MPa / -4.3511 psi)
• Max Flow: ≥300 ml/min (0.3 LPM / 18 L/H)
• Noise:★

General Specifications

• Motor Type: DC Brushless Motor
• Diaphragm Material: EPDM
• Life time: 3000 Hours
• Noise: ≤50dB(with silencer can be reduce 1-3dB)
• Dimension: 53x40x24.3mm
• Weight: 73(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

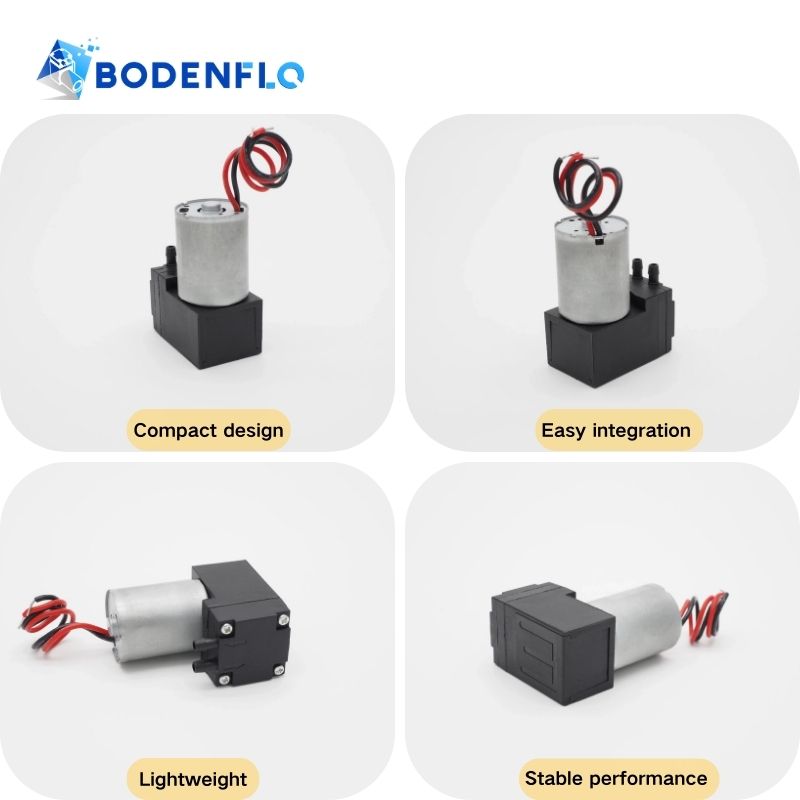

Key Features of Micro Water Pumps:

• Compact Design: Perfect for integration into small devices and tight spaces.
• Quiet Operation: Maintains low noise levels, making it suitable for noise-sensitive environments.
• Long Service Life: Engineered for durability, reducing the need for frequent replacements.
• Energy Efficient: Operates with minimal power consumption, promoting sustainability.
• Versatile Applications: Adaptable to a wide range of fluid handling needs across various industries.

Common Applications:

• Liquid Analysis and Monitoring: Used in systems for precise measurement and control of fluid parameters in laboratories.
• Personal Care Devices: Utilized in facial steamers and other beauty appliances for effective hydration.
• IVD Instrument Waste Liquid Disposal: Used to efficiently remove and dispose of waste liquids in diagnostic instruments, ensuring clean chambers for accurate testing results.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
