6V Mini Gas Pump Quiet Brushless Air Pump for Gas Analyzers BD-02AB3L BODENFLO

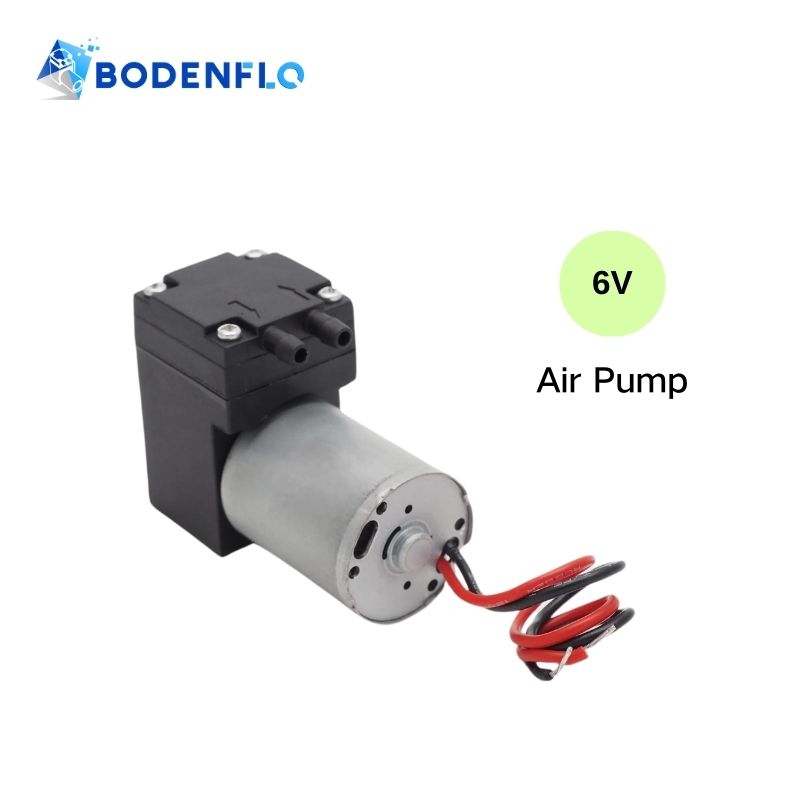

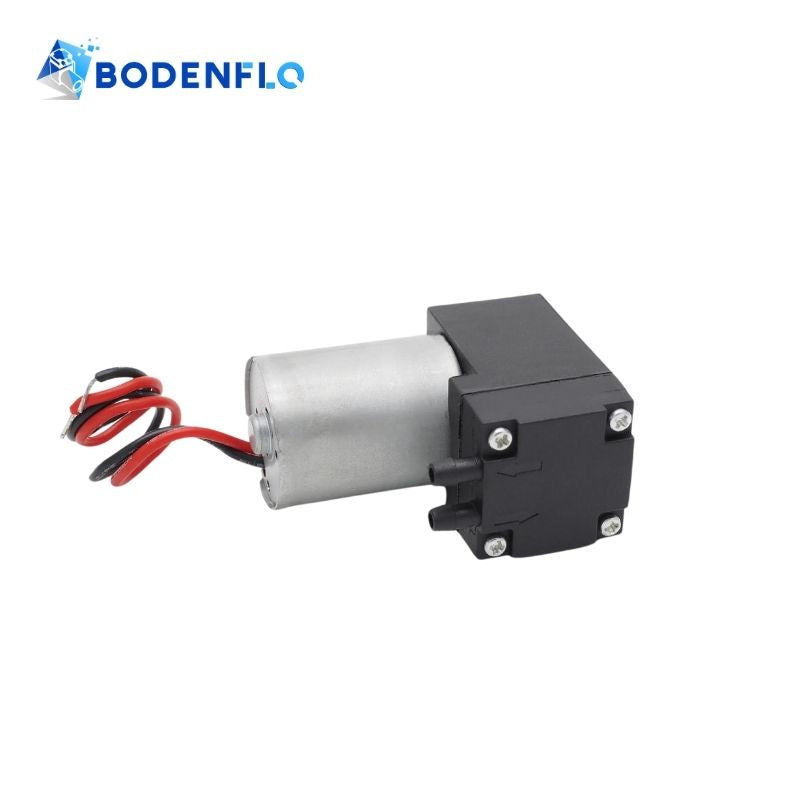

BD-02AB3L Mini Gas Pump by BODENFLO is engineered for high efficiency and versatility, making it ideal for various applications. Operating on 6V DC, this compact brushless air pump achieves a maximum pressure of ≥150 kPa with flow rates of ≥3 L/min. Its low noise level and durable design ensure optimal performance in sensitive environments. With a lifespan of up to 3000 hours, the BD-02AB3L promises reliability and longevity for all your air pumping needs.

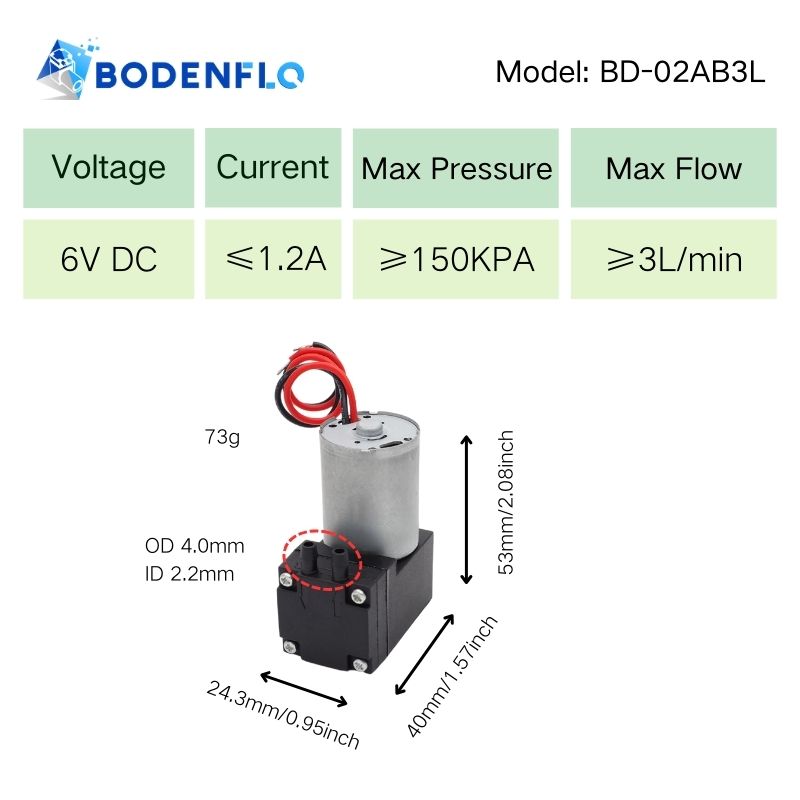

BD-02AB3L Technical Specifications:

• Name: Mini Gas Pump
• Model: BD-02AB3L
• Rated Voltage: 6V DC
• Current : ≤1.2A
• Max Pressure: ≥ 150 kPa(1.5 bar / 0.15 MPa / 21.7556 psi)
• Max Flow: ≥3 L/min (3 LPM / 180 L/H)
• Noise:★

General Specifications

• Motor Type: DC Brushless Motor
• Diaphragm Material: EPDM

• Life time: 3000 Hours
• Noise: ≤65dB(with silencer can be reduce 1-3dB)
• Dimension: 53x40x24.3mm
• Weight: 73g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

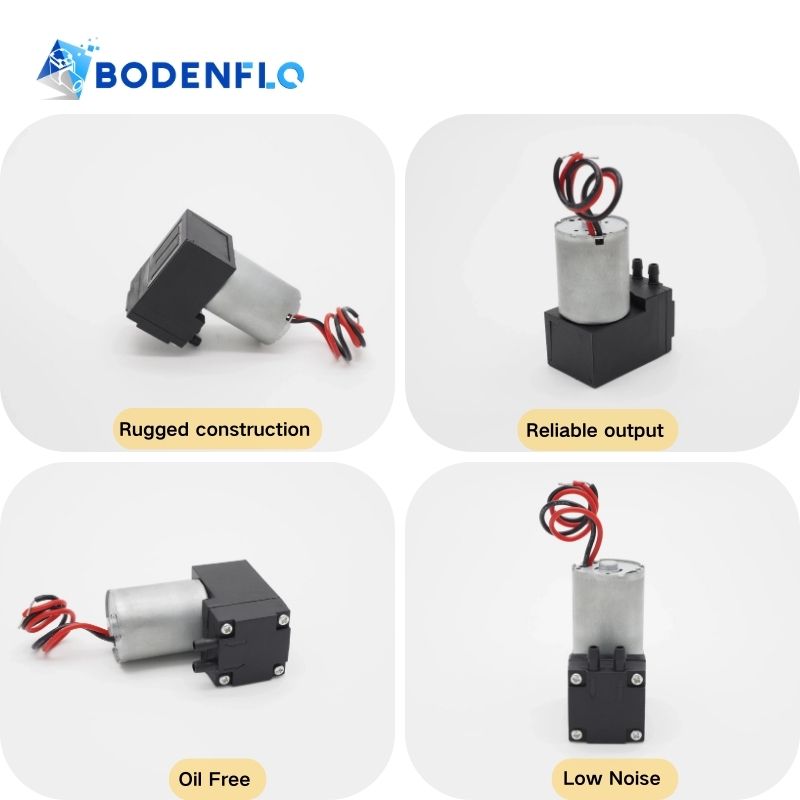

Key Features of Brushless Air Pump:

• Extended Lifespan: Brushless motor technology increases durability and longevity, reducing the frequency of replacements.
• Low Noise Levels: Operates quietly, making it ideal for applications in noise-sensitive environments like hospitals or offices.
• Stable Performance: Maintains consistent air pressure and flow rates, ensuring reliable operation across diverse applications.
• Minimal Maintenance: Requires less upkeep compared to brushed motors, lowering operational costs and downtime.
• Rapid Response Time: Quickly reaches the desired pressure and airflow, improving efficiency in time-sensitive tasks.

Common Applications:

• Gas Analyzers: Supports the operation of gas detection devices, allowing for precise air sampling.
• 3D Printers: Used in 3D printing setups for controlling airflow and cooling during the printing process.
• Portable Nebulizers: Used in medical nebulizers for administering medication via aerosol, enhancing patient comfort and treatment effectiveness.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
