7-24V PWM Signal Generator & Speed Controller 1Hz-100kHz for Brushless Micro Pumps | BD-P1 BODENFLO

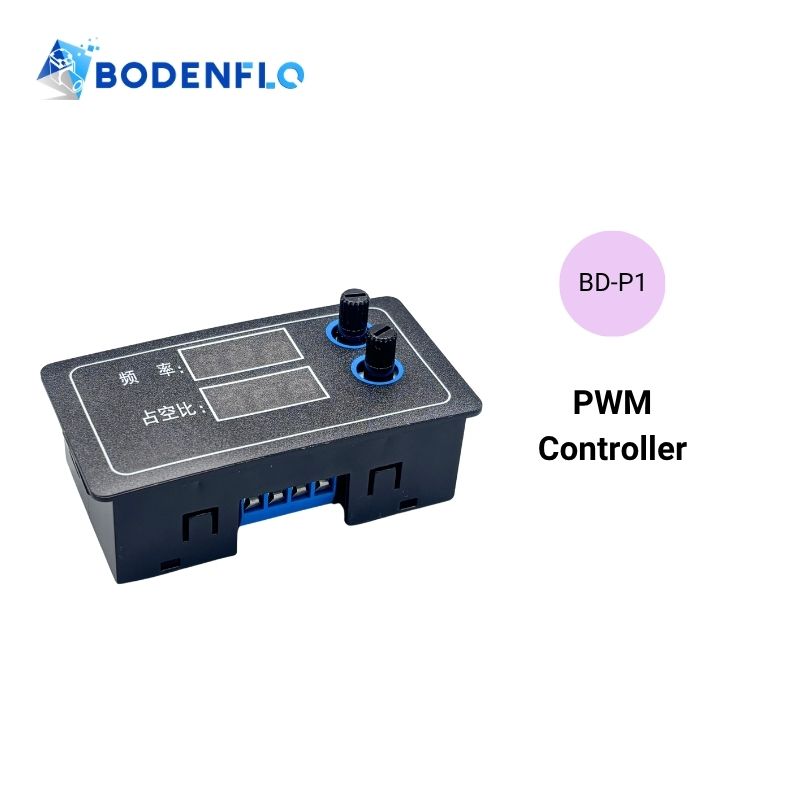

The BD-P1 PWM Signal Generator is designed for testing and adjusting the speed of compatible brushless DC micro pumps. Operating on a 7–24V DC power supply, this compact controller provides an adjustable PWM frequency of 1 Hz–100 kHz and a duty cycle range of 0–100%. Dual rotary knobs allow independent adjustments, while digital displays provide real-time frequency and duty cycle readings for pump testing, development, and system integration.

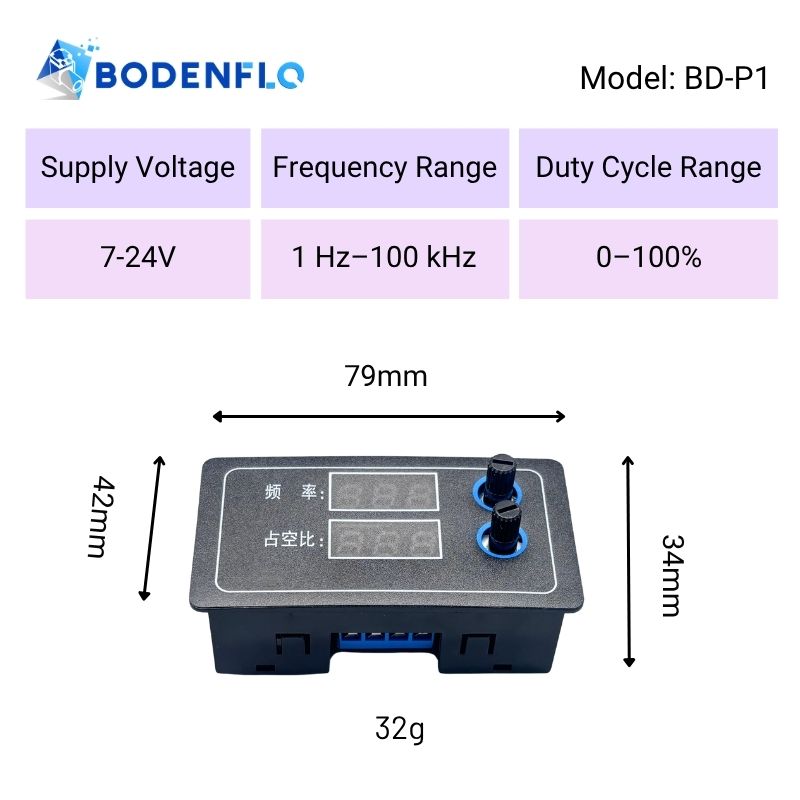

PWM Signal Generator BD-P1 Specifications

• Name: PWM Speed Controller
• Model: BD-P1
• Supply Voltage: 7–24V DC
• Frequency Range: 1 Hz–100 kHz, adjustable
• Duty Cycle Range: 0–100%, adjustable
• PWM Output Amplitude: Equal to the controller supply voltage
• Output Drive Current: Approx. 5 mA
• Adjustment Method: Dual rotary potentiometers
• Display: Digital frequency and duty cycle display
• Dimensions: Approx. 79 × 42 × 34 mm
• Weight: Approx. 32 g
• Compatible Pumps: Brushless DC pumps with a compatible PWM control input

Brushless Micro Pump PWM Controller Features

• Adjustable PWM Frequency: Supports frequency adjustment from 1 Hz to 100 kHz for different PWM control requirements.
• Precise Duty Cycle Adjustment: Provides a 0–100% adjustable duty cycle for testing and controlling compatible pump speed inputs.
• Dual Rotary Knobs: Allows independent adjustment of PWM frequency and duty cycle.
• Digital Display: Displays frequency and duty cycle values for convenient monitoring and adjustment.
• Compact Design: Lightweight 32 g construction with a compact enclosure for laboratory testing and equipment integration.
• Brushless Pump Compatibility: Suitable for brushless DC micro pumps equipped with compatible external PWM speed control inputs.

PWM Signal Generator Applications

• Brushless Micro Pump Testing: Adjust PWM frequency and duty cycle during pump performance evaluation.
• Pump Speed Control Development: Test compatible external PWM speed control inputs.
• OEM Prototype Testing: Support control signal evaluation during equipment development.
• Laboratory Testing: Generate adjustable PWM signals for compatible low-current control interfaces.

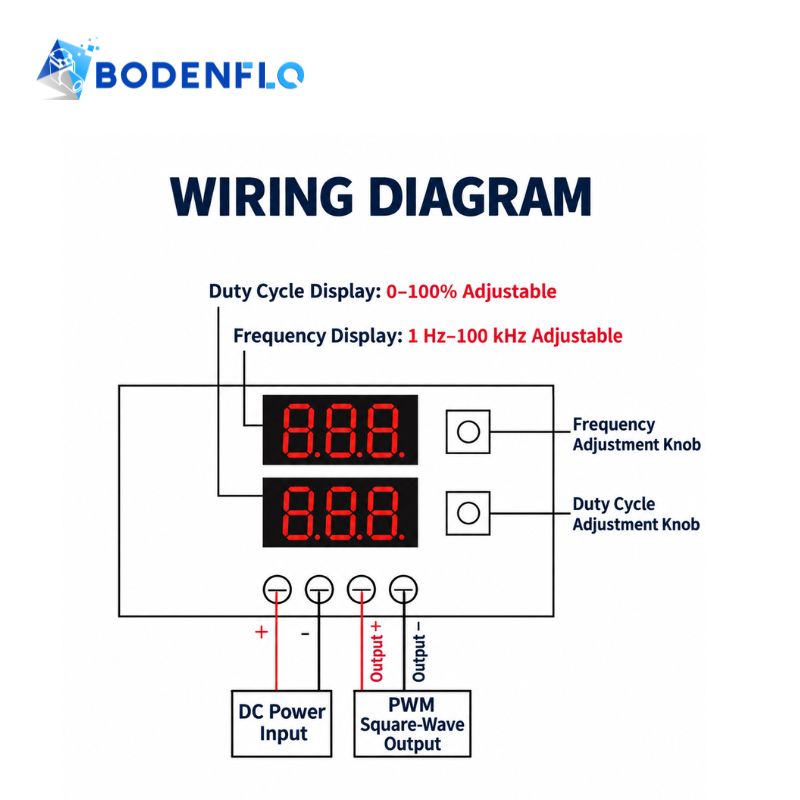

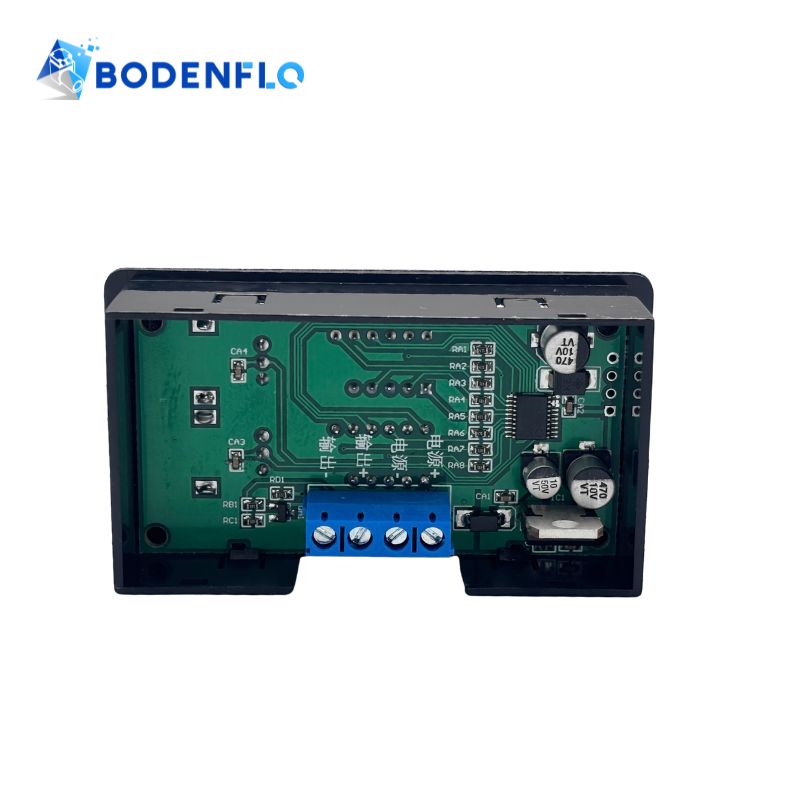

Connection Guidelines

• Power Supply: Connect a suitable 7–24V DC power source to the controller power input terminals according to the wiring diagram.
• PWM Signal Output: Connect the PWM output terminals to the compatible pump's PWM control interface.
• Frequency Adjustment: Use the frequency adjustment knob to set the required PWM signal frequency.
• Duty Cycle Adjustment: Use the duty cycle adjustment knob to adjust the PWM duty cycle according to the pump's control requirements.

Note: The BD-P1 provides a PWM control signal only. It does not directly power the pump motor. Ensure that the PWM signal voltage, frequency, and wiring are compatible with the pump's internal driver.

Important Notes

• This product is a PWM signal generator, not a direct motor power driver. The connected pump requires its own appropriate power supply.
• Confirm that the pump supports external PWM speed control before connecting the controller.
• The PWM output amplitude equals the controller supply voltage. Verify the pump's PWM input voltage requirements before use.
• Actual pump speed response depends on the pump's internal driver, supported PWM frequency, and duty cycle characteristics.
• Follow the wiring diagram and verify electrical connections before applying power.

Package & Shipping

• Package Includes: 1 × BD-P1 PWM Signal Generator
• Lead Time: Typically 3–5 working days for standard in-stock orders.
• Shipping: DHL or FedEx express shipping available.

Manufacturer Information

Brand: BODENFLO

Manufacturer: Shenzhen Boden Technology Development Co., Ltd.

Country of Origin: China
