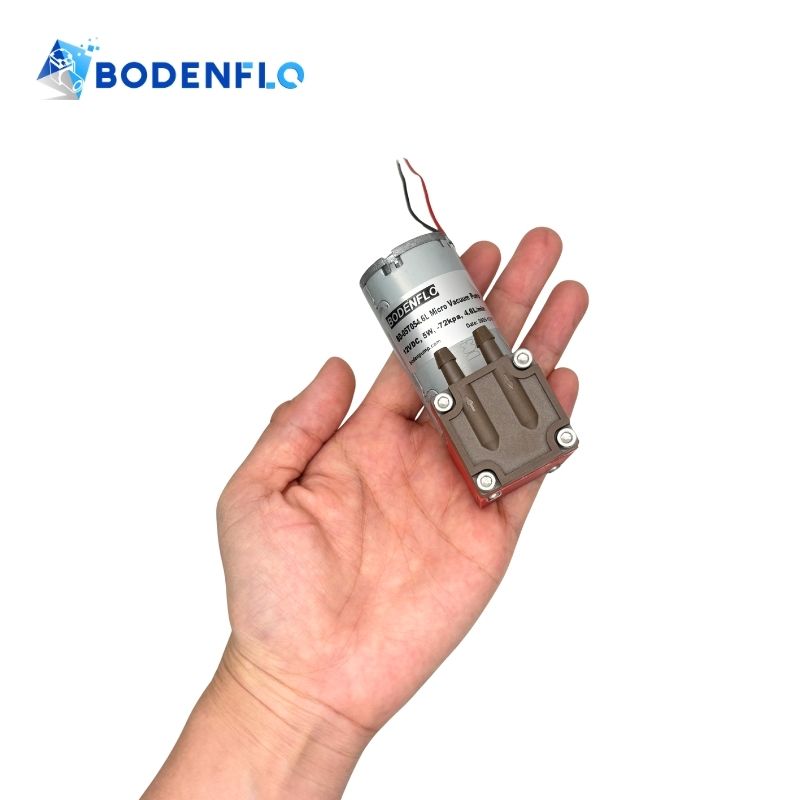

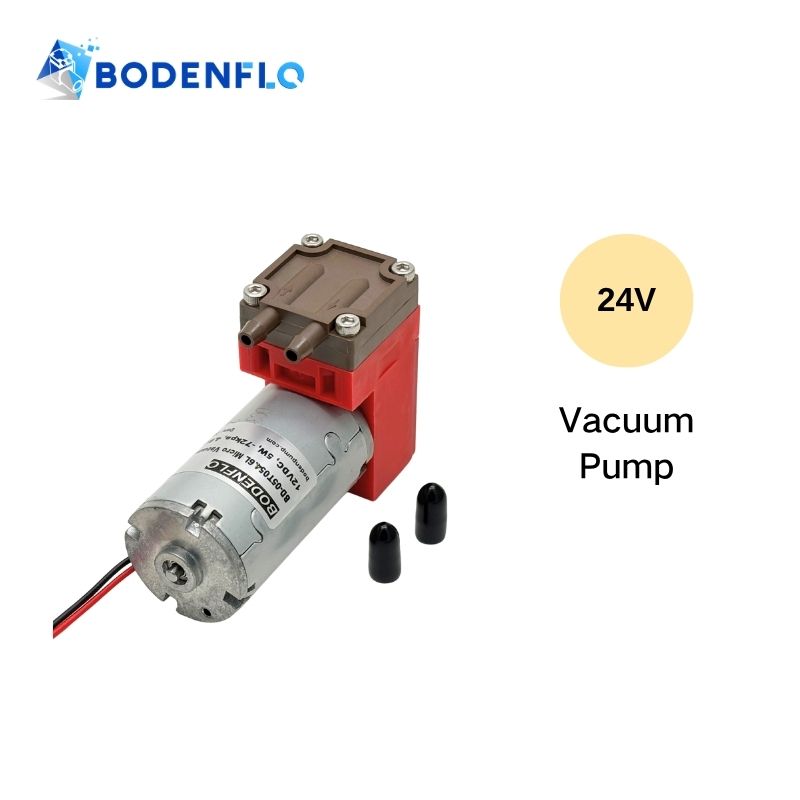

Air Sampling Pump High Vacuum -75kpa for Gas Analysis 24V Vacuum Pump BD-05T054.6L BODENFLO

Optimize your system with the BD-05T054.6L from BODENFLO. This Air Sampling Pump delivers reliable suction and smooth airflow in a compact, energy-efficient design. Its durable construction ensures stable operation for precision instruments, environmental monitoring, and small pneumatic systems, providing dependable performance in demanding applications.

BD-05T054.6L Technical Specifications

• Name: 24V vacuum pump
• Model: BD-05T054.6L
• Rated Voltage: 24V DC
• Max Power: 5 W
• Max Pressure: 1.0-1.5 bar (100-150 kPa / 0.1-0.15 MPa / 14.5-21.8 psi)
• Max Vacuum: –72 kPa (-540 mmHg/–0.072 MPa)

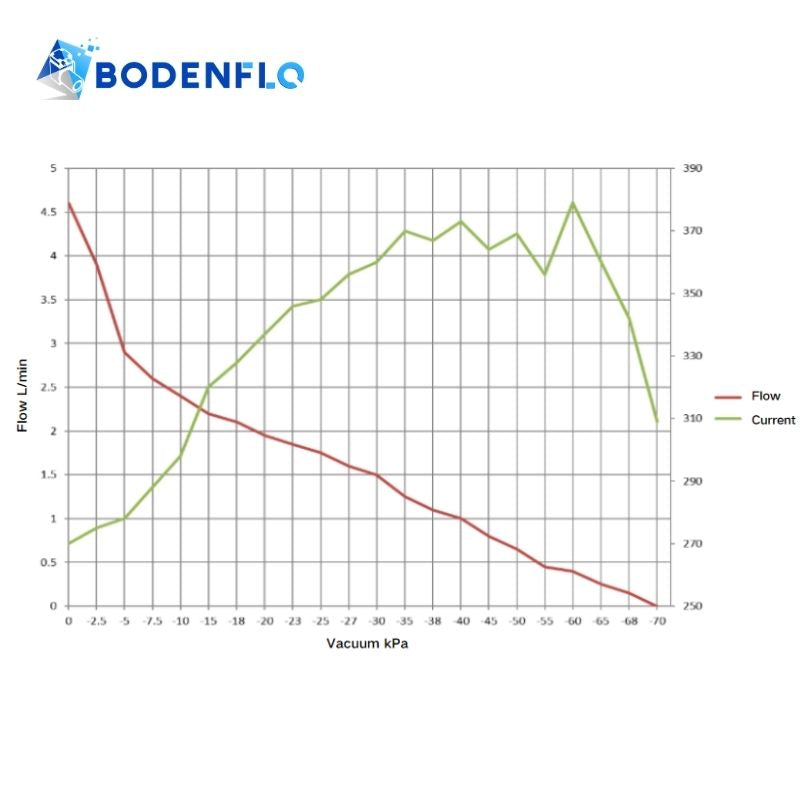

• Max Flow: 4.6 L/min (4.6 LPM / 276 L/H)

General Specifications

• Medium: Air/Gas
• Motor Type: Brushed DC Motor
• Waterproof Lever: IP40
• Pump Head Material: PPS
• Valve Material: EPDM
• Diaphragm Material: EPDM
• Life Time: 2500 hours
• Noise: 60dB

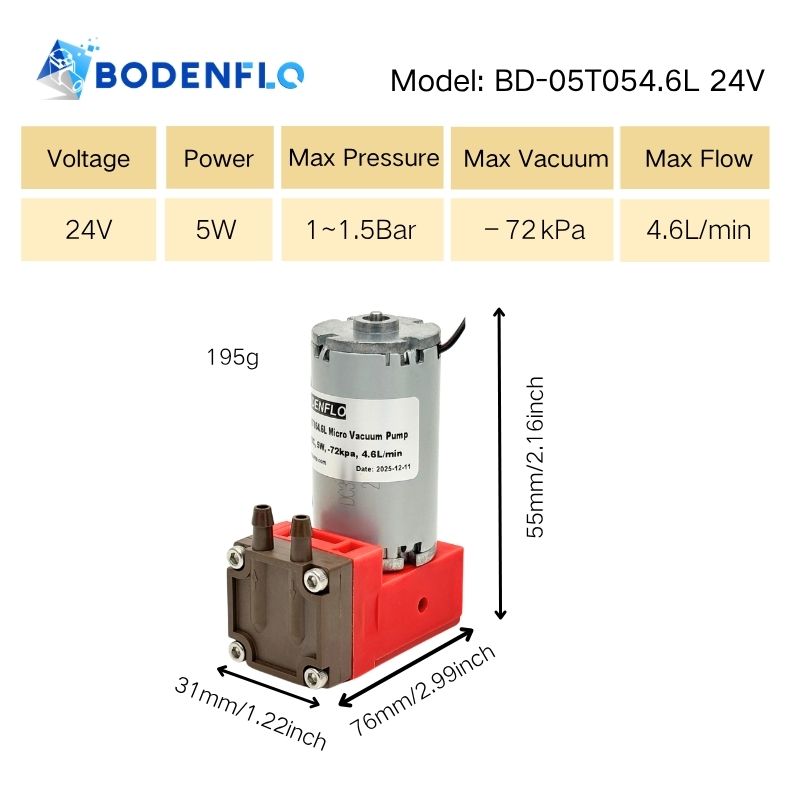

• Dimensions: 76x31x55 mm（2.99x1.22x2.17 inch）
• Weight: 195g (approx.)
• Storage Temperature: –40 ℃ ~ 60 ℃
• Storage Temperature: –20 ℃ ~ 45 ℃
• Medium Temperature: –10 ℃ ~ 45 ℃

Product Showcase Video

Video link: BD-05T054.6L  Diaphragm Air Pump Youtube video

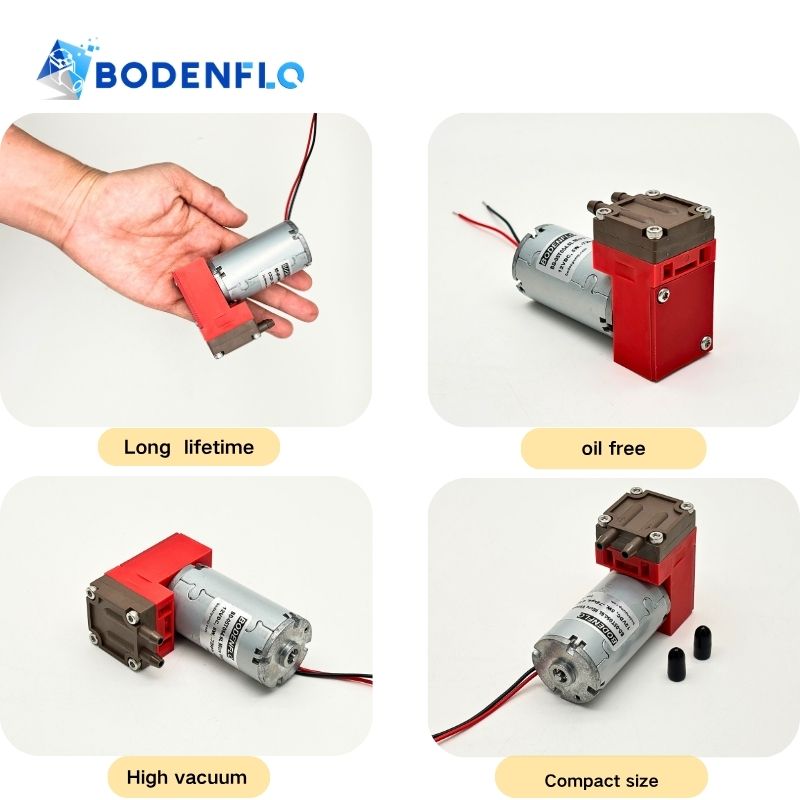

Key Features of 24V Air Sampling Pump

• High Vacuum Performance: Provides strong and stable suction, ensuring reliable operation for gas sampling and analytical systems.
• Compact Design: Small footprint allows easy integration into space-limited instruments or portable equipment.
• Stable Flow: Delivers consistent airflow to support accurate measurements and dependable operation in both laboratory and field devices.
• Energy Efficient: Low power consumption reduces energy costs while maintaining high performance over extended operation.
• Durable & Reliable: Robust diaphragm and brushed DC motor design ensure long service life and stable performance in continuous or intermittent use.

Applications

•  Analytical & Laboratory Instruments

Perfect for VOC detection instruments, gas chromatography systems, laboratory gas analysis devices, and other scientific testing equipment, where precise suction and compact size are critical.

•  Environmental Monitoring Devices

Supports ambient air monitoring stations, portable pollution detectors, and continuous gas sampling instruments, providing stable and reliable gas transfer for accurate monitoring.

•  Industrial Automation Equipment

Supplies vacuum or airflow to small pneumatic modules, automated sampling machines, vacuum handling systems, and compact air transfer solutions for industrial automation and process control.

Manufacturer Information

Brand: BODENFLO

Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
