12V Liquid Pump BD-03W High-Efficiency Micro Water Pumps for Atomization BODENFLO

The BD-03W Micro Liquid Pump operates at 12V DC, delivering a maximum flow of 500ml/min and a vacuum of ≥-30 kPa. Compact and lightweight, this pump is designed for efficient performance in various demanding environments.

 BD-03W Technical Specifications:

• Name: Diaphragm Liquid Pump Mini
• Medium: Water
• Model: BD-03W
• Rated Voltage: 12V DC
• Motor Type: DC Brush Motor
• Current Consumption: ≤0.3A

• Max Vacuum: ≥-30 kPa  ( -0.03 MPa / -4.3511 psi)
• Max Flow: ≥500 ml/min (0.5 LPM / 30 L/H)

General Specifications

• Motor Type: DC Brush Motor
• Diaphragm Material: EPDM
• Life time: 800-1000 Hours
• Noise: ≤50 dB (with silencer can be reduced by 1-3dB)
• Dimension: 76x49x30mm
• Weight: 140g (approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

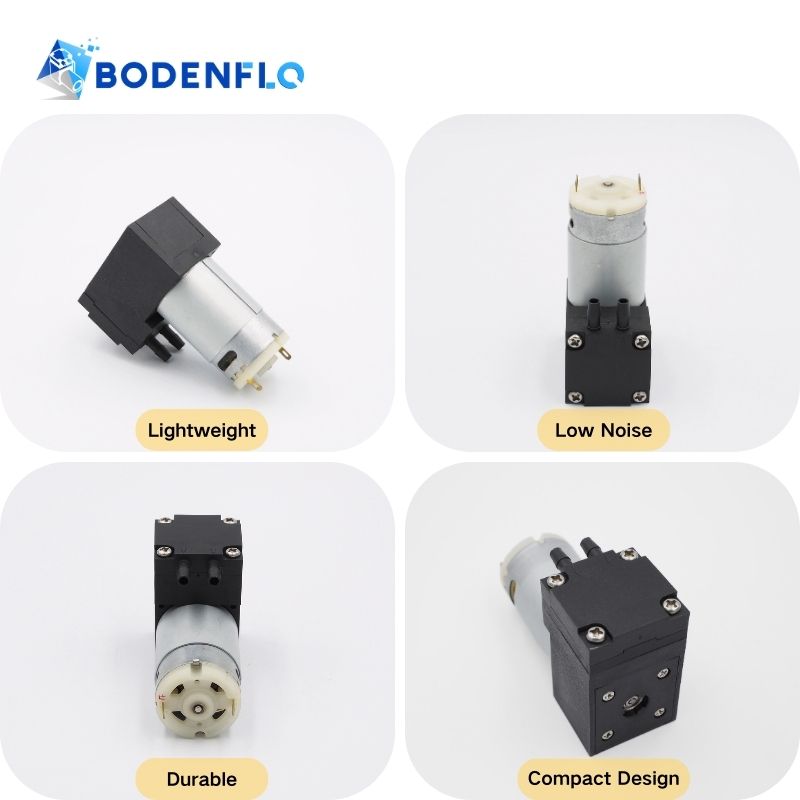

Key Features of Micro Diaphragm Liquid Pumps:

• Precision Control: Delivers accurate fluid transfer, essential for sensitive applications.
• Lightweight Construction: Easily integrates into portable devices without adding significant weight.
• Robust Sealing: Prevents leakage, ensuring consistent performance and reliability.
• Quick Response Time: Provides immediate pressure changes for dynamic flow control.
• Low Maintenance: Designed for minimal upkeep, allowing for hassle-free operation over time.

Common Applications:

• Atomization: Facilitates fine mist production for humidification, air purification, and disinfection applications.
• Spraying Systems: Provides reliable liquid spray in precision cleaning, misting, and cooling systems, ensuring uniform output.
• Laboratory Instruments: Facilitates fluid transfer in analytical and research applications.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
