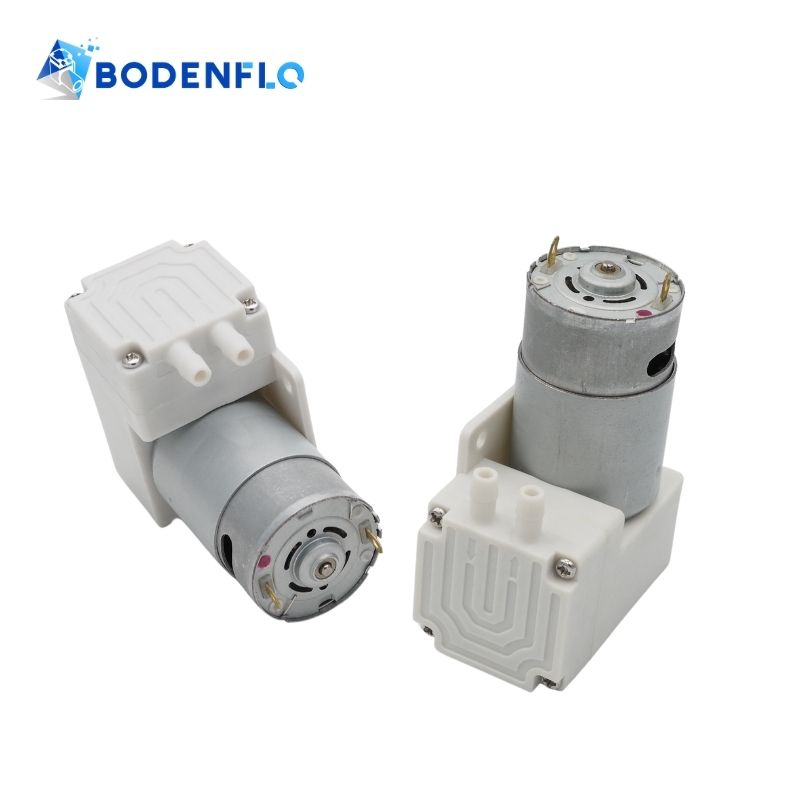

12V Micro Diaphragm Liquid Pump 1.5L BD-04W for Water Circulation BODENFLO

BD-04W Micro Water Pump is engineered for efficiency and reliability in various applications. With a rated voltage of 12V DC, it delivers a maximum vacuum of ≥-30 kPa and a flow rate of ≥1.5 L/min, all while maintaining low noise levels. This compact and lightweight pump is designed for long-term operation, making it an ideal solution for your liquid transfer needs.

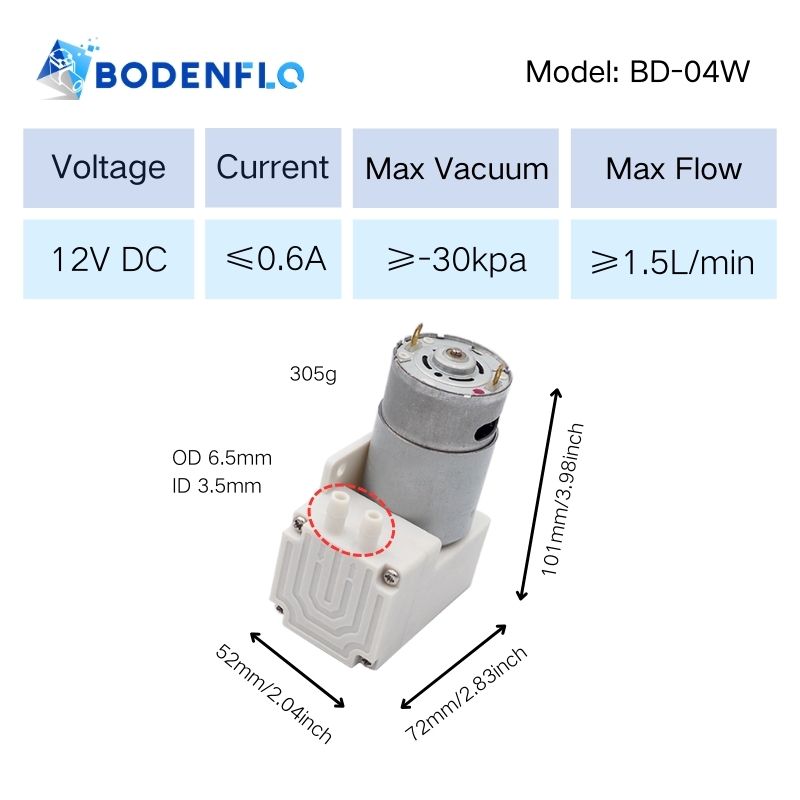

 BD-04W Technical Specifications:

• Name: DC Liquid Pump
• Medium: Water
• Model: BD-04W
• Rated Voltage: 12V DC
• Current : ≤0.6A
• Max Vacuum: ≥-30 kPa ( -0.03 MPa / -225 mmHg)
• Max Flow: ≥1.5 L/min (1.5 LPM / 90 L/H)
• Noise:★

General Specifications

• Motor Type: DC Brush Motor
• Life time: 1000 Hours
• Noise: 55dB
• Dimension: 101x72x52mm
• Weight: 305g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

Key Features of Micro Liquid Pumps:

• High Precision Control: Allows for accurate liquid dosing and transfer, essential in sensitive applications.

• Leak-Free Operation: Diaphragm design ensures no leakage, maintaining cleanliness and safety.

• Stable Flow Rate: Delivers a consistent flow, maintaining system reliability.

• Energy Efficient: Minimal energy usage makes it ideal for battery-operated and portable devices.

Common Applications:

• Water Circulation: Used in cooling systems and small fountains to ensure continuous water flow and prevent stagnation.
• Sprayers: Employed in humidifiers and agricultural sprayers to create fine mists with precise pressure control.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
