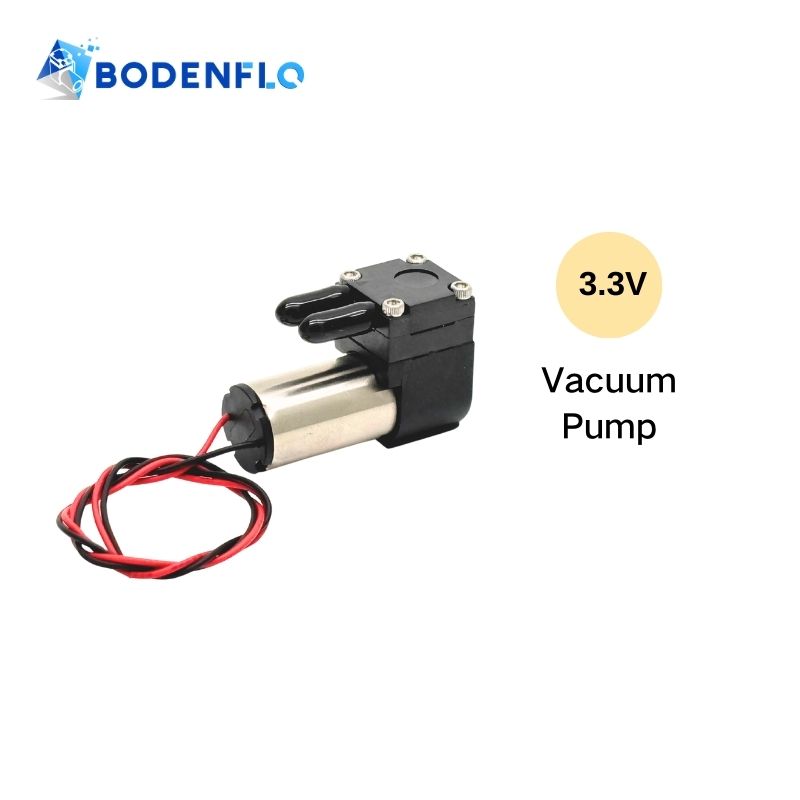

3.3V Mini Diaphragm Vacuum Pump Compact & Quiet for Medical Devices and Sampling BD-05T01530 BODENFLO

The BD-05T01530 is a compact mini diaphragm vacuum pump designed for low-voltage DC systems and highly space-constrained equipment. Based on an oil-free diaphragm structure, this DC vacuum pump delivers clean and stable air suction without contamination, making it well suited for precision air sampling tasks.

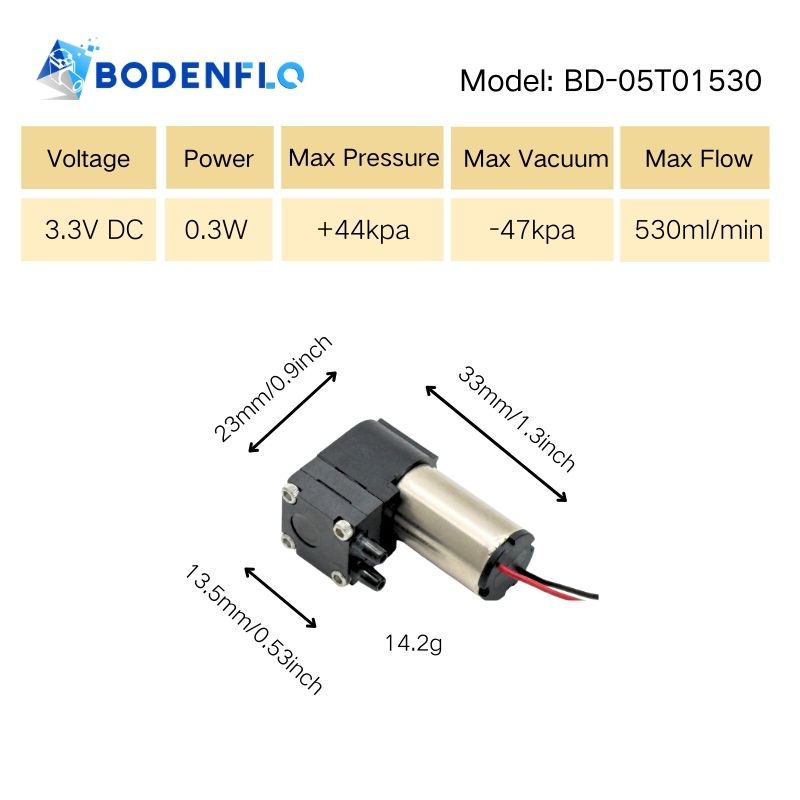

BD-05T01530 3.3V Technical Specifications:

• Name: 3.3V Diapharagm Vacuum Pump
• Model: BD-05T01530 3.3V
• Rated Voltage: 3.3V DC
• Power : 0.3W
• Max Pressure: >44 kPa ( 0.44 bar/ 0.044 MPa / 6.3816 psi)
• Max Vacuum: >- 47kPa ( -352mmHg /0.047 MPa )
• Max Flow: > 530ml/min ( 0.53LPM / 31.8L/H)
• Noise:★

General Specifications

• Motor Type: Brushed Motor
• Diaphragm Material: EPDM
• Life time: 6000-8000 Hours
• Noise: ≤58dB(with silencer can be reduce 1-3dB)
• Dimension: 33*23*13.5mm
• Weight: 14.2G(approx.)
• Storage temperature: -40℃~60℃
• Operating environment: -20℃~45℃

Product Showcase Video

• Video link:https://www.youtube.com/shorts/fEMHfHcXllY

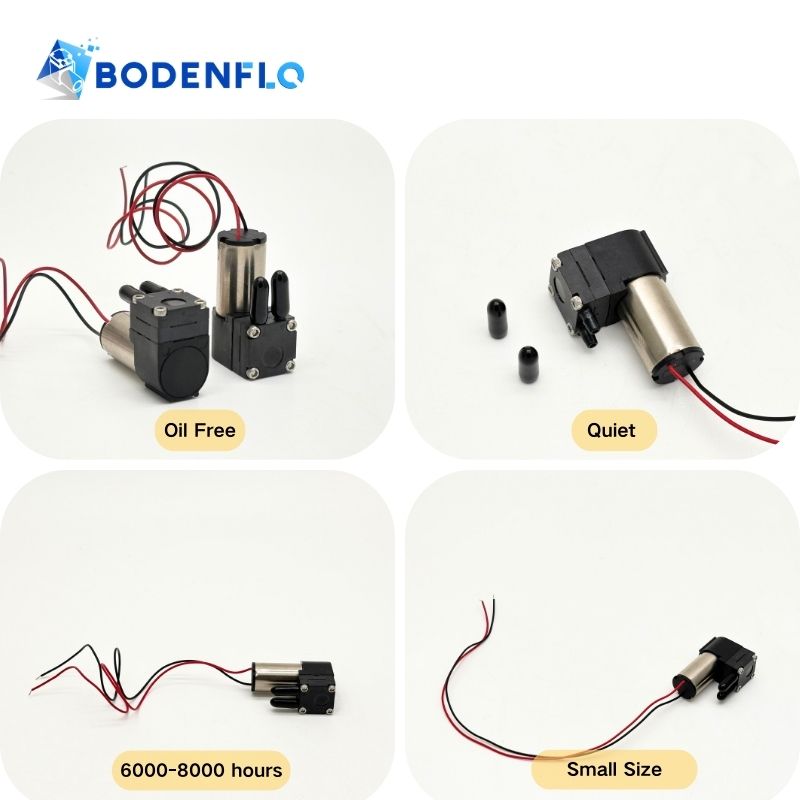

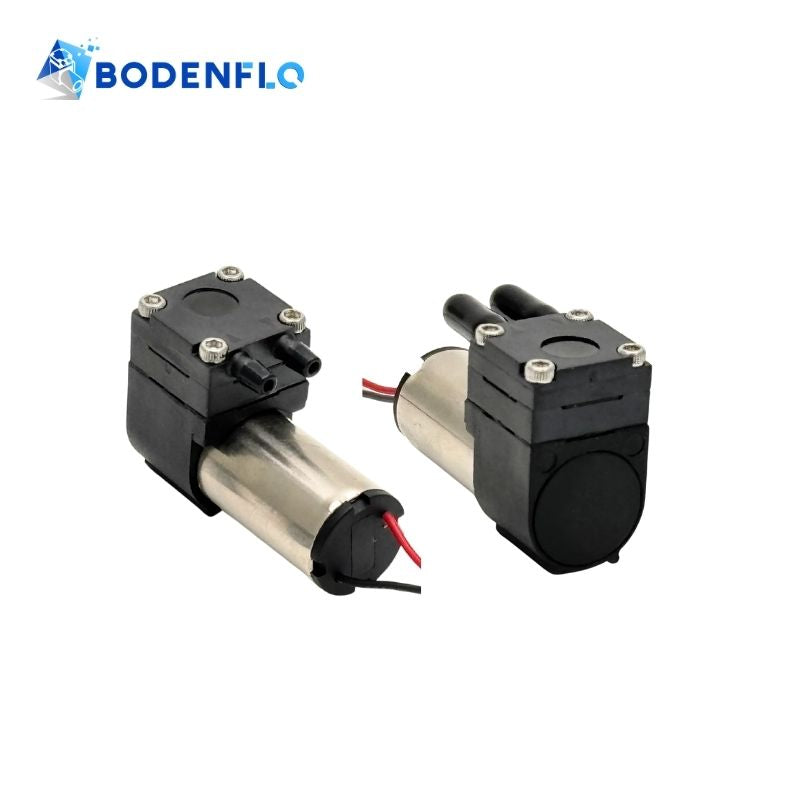

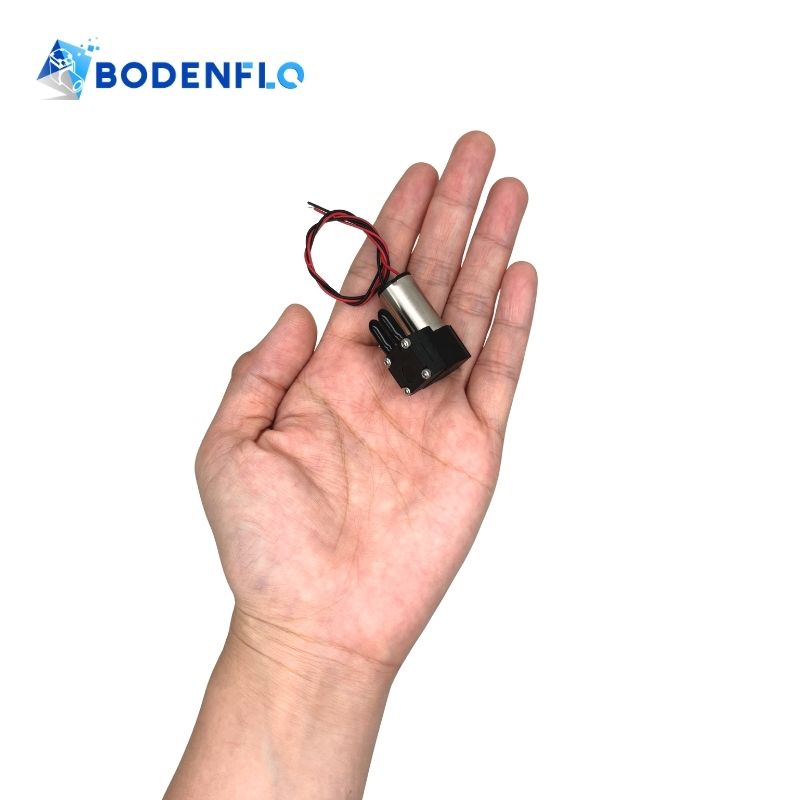

See the compact size, structure, and design of the BD-05T01530 mini diaphragm vacuum pump. Ideal for engineers and OEMs looking for a low-voltage, reliable, and lightweight vacuum solution.

Key Features of Diaphragm Vacuum Pump:

• Compact structural design: Optimized for installation in miniature housings and ultra-small electronic devices.
• Stable vacuum performance: Provides consistent negative pressure for accurate sampling and sensor response.
• Reliable long-term operation: Diaphragm motion offers predictable performance over extended service life.
• Wide environmental adaptability: Maintains functionality across varying temperature and operating conditions.

Common Applications:

• Medical Machines: Used for air handling and sampling in compact medical equipment.
• Food Processing Equipment: Assists inspection and monitoring processes in food production systems.
• Environmental Protection Systems: Enables continuous air sampling in environmental monitoring equipment.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
