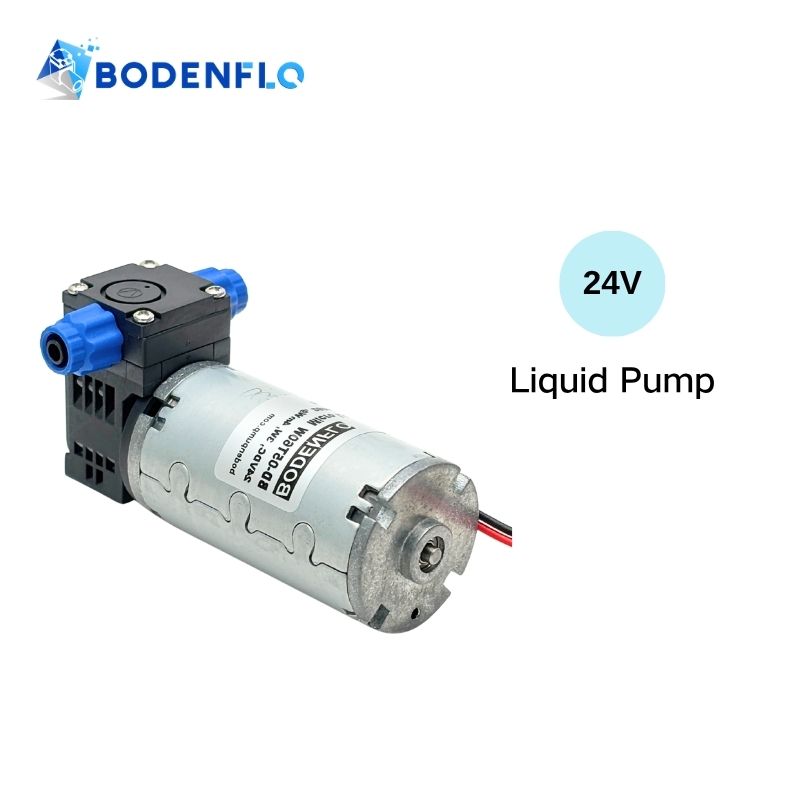

Diaphragm Liquid Pump 280 mL Low-Pulsation Micro Liquid Pump BD-05T60W BODENFLO

This compact diaphragm pump provides consistent, low-pulsation liquid flow with reliable suction, optimized for energy efficiency. Built with corrosion-resistant materials, it delivers dependable performance for medical rehabilitation devices, laboratory instruments, and small fluid handling systems in demanding applications.

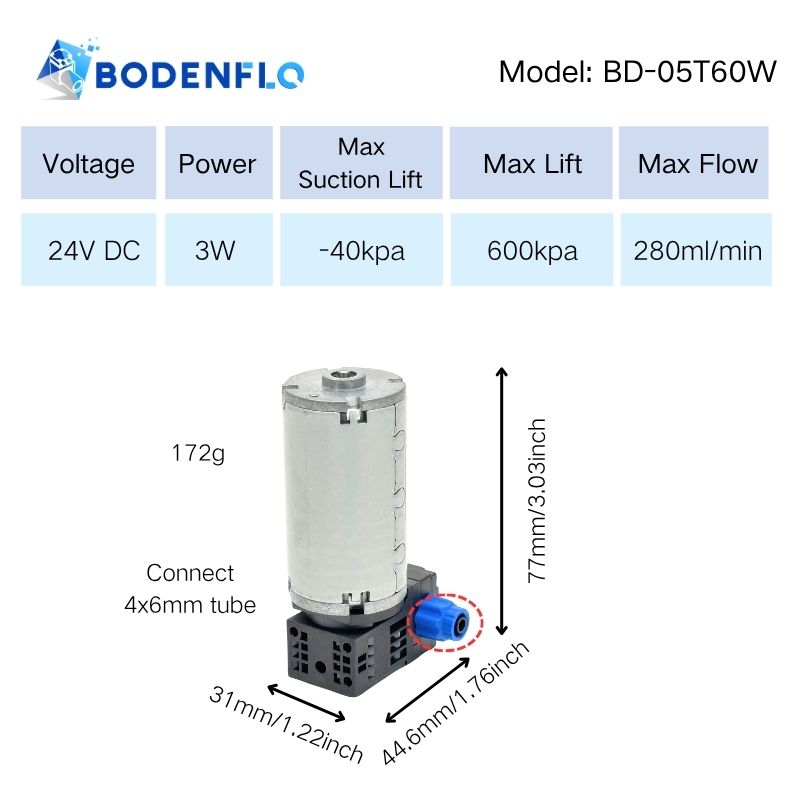

BD-05T60W Technical Specifications:

• Name: Micro liquid pump
• Model: BD-05T60W
• Rated Voltage: 24V DC
• Max Power: 3 W
• Maximum Lift: 60 mWg (6 bar / 0.6 MPa / 87 psi）(intermittent work)
• Maximum Suction Lift: 4 mWg (–40 kPa / –0.04 MPa)

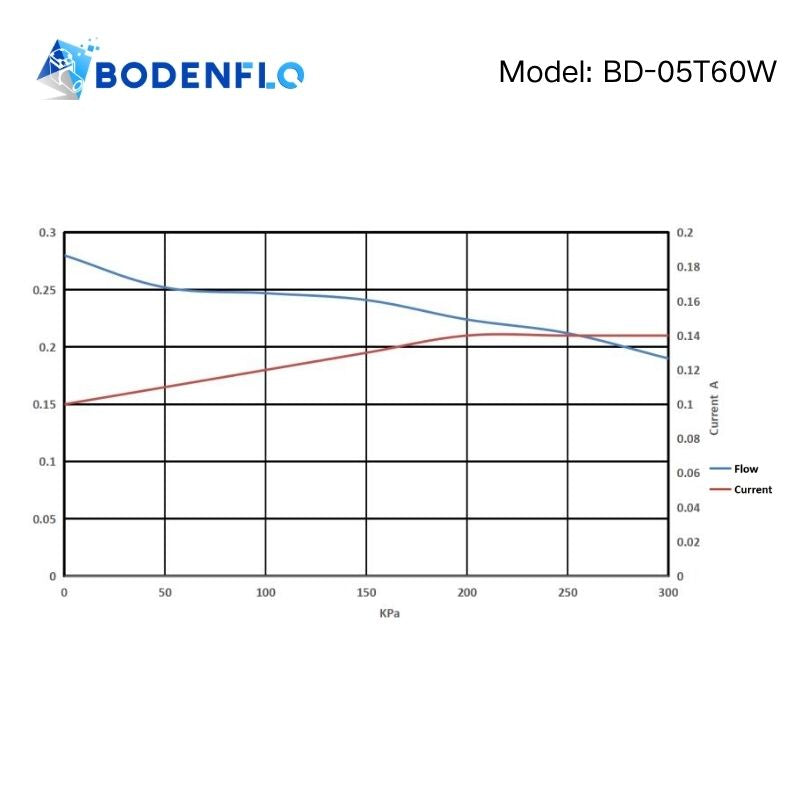

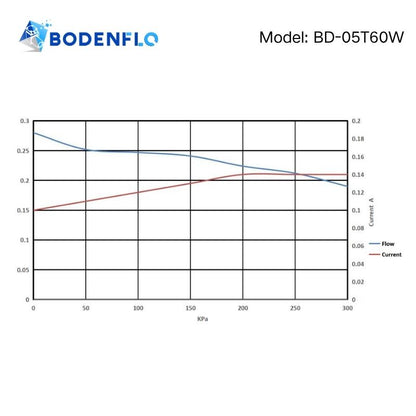

• Max Flow: 280 ml/min (0.28 LPM / 16.8 L/H）（Liquid flow, electronic flow meter）

General Specifications

• Medium: Water/Liquid
• Motor Type: Brush Motor
• Waterproof Lever: IP40
• Pump Head Material: PPS/PP
• Valve Material：EPDM
• Diaphragm Material: EPDM
• Life time: 2000 Hours
• Noise: ＜60dB
• Dimention: 77 × 31 × 44.6 mm (3.03 × 1.22 × 1.76 inch)
• Weight: 172g(approx.)
• Storage temperature: -40℃~60℃
• Operating environment: -20℃~45℃

Product Showcase Video

Video link: BD-05T60W  Diaphragm Liquid Pump Youtube video

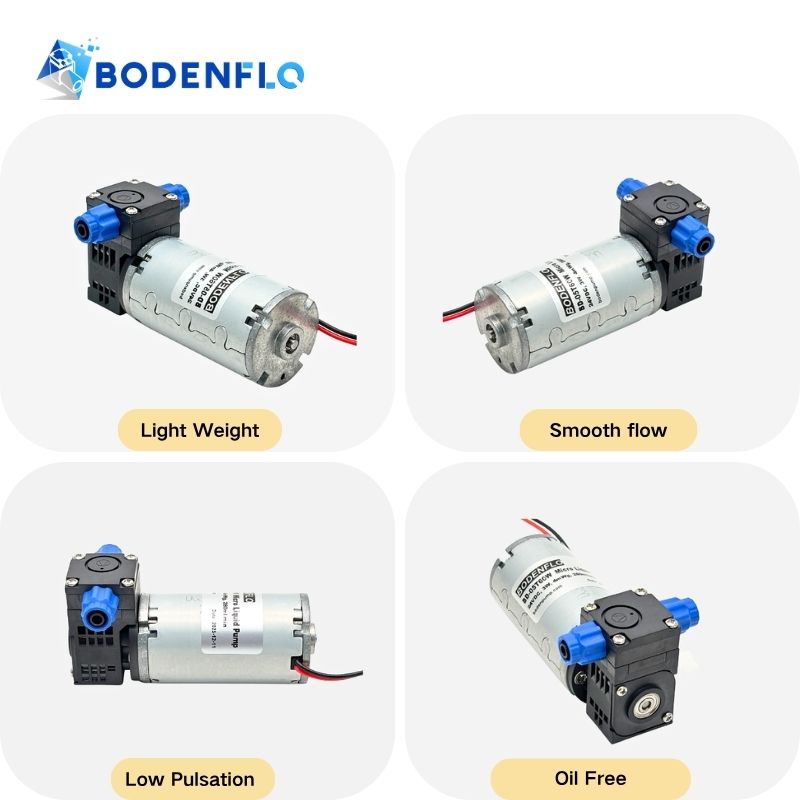

Key Features

• Stable Water Flow – Ensures precise liquid transfer for laboratory instruments, medical rehabilitation devices, and compact fluid systems.
• High Pressure Capacity – Handles intermittent high-lift operations without compromising performance, ideal for dosing, ink transfer, and mini automation modules.
• Low Pulsation Design – Reduces vibration and flow fluctuations to maintain accuracy in sensitive and precision systems.
• Corrosion-Resistant Materials – Pump head, diaphragm, and valves resist chemical wear, supporting long-term operation in aqueous and mild chemical environments.
• Durable & Long-Lasting – Brushed DC motor combined with a high-strength PA66 body extends service life under continuous or intermittent use, lowering maintenance needs.

Applications

• Digital Printing Equipment – Suitable for stable ink transfer and precise micro-fluid control in compact digital printing and marking systems.
• Biochemical Analyzers – Supports accurate liquid dosing and sample transport in automated biochemical analysis equipment.
• Chemical Analysis Systems – Enables reliable micro-liquid handling for reagent delivery and analytical testing processes.
• Liquid Sampling Devices – Ideal for controlled liquid collection and transfer in portable or embedded sampling instruments.
