12V Brushless Liquid Pump 280ml Micro Fluid Pump for Precision Liquid Transfer | BODENFLO BD-05T60WB

Enhance your fluid control systems with the BD-05T60WB 12V brushless liquid pump, engineered for precision, low pulsation, and long operational life. Designed with an advanced diaphragm liquid pump structure, this compact micro fluid pump delivers stable and contamination-free liquid transfer, making it ideal for high-reliability OEM applications.

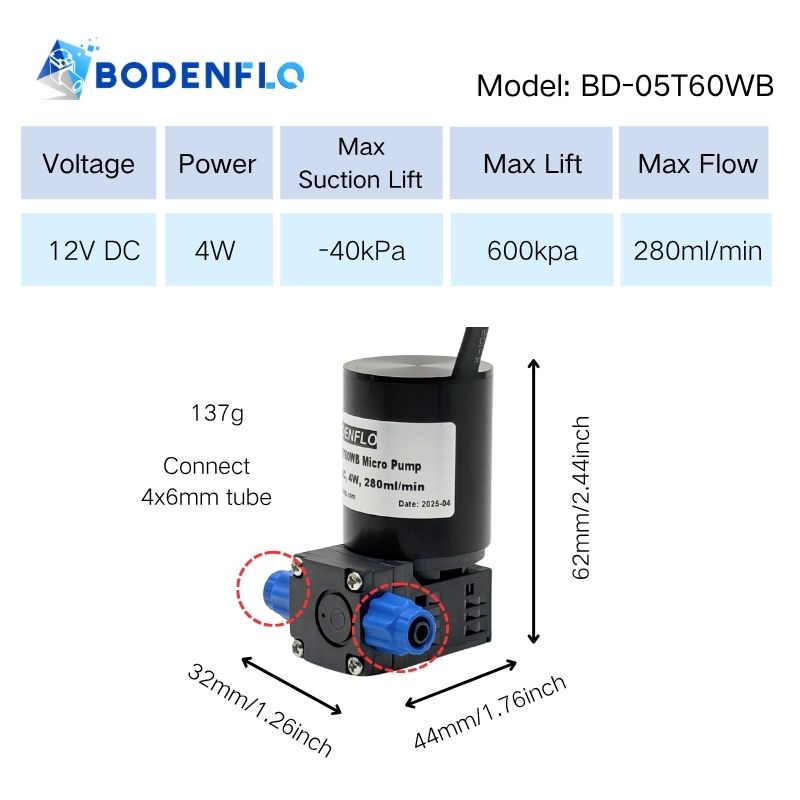

BD-05T60WB Technical Specifications

• Name: Brushless Liquid Pump
• Model: BD-05T60WB
• Voltage Range: 12V DC
• Max Power: 4W
• Maximum Lift: 60 mWg (6bar/0.6MPa/87 psi)(intermittent operation)
• Maximum Suction Lift: 4 mWg(-40kPa/-0.04MPa)
• Maximum Flow: 280 mL/min (0.28 LPM / 16.8L/H)（Liquid flow, electronic flow meter）

General Specifications

• Medium: Water/Liquid
• Motor Type: Brushless motor
• Waterproof Level: IP40
• Pump Head Medium: PPS
• Valve: EPDM
• Diaphragm Medium: EPDM
• Life Time: 8000 hours
• Noise: ≤60dB
• Dimensions: 62x32x44.6 mm（2.44x1.26x1.76 inch）
• Weight: 134 g(approx.)
• Storage Temperature: –40 ℃ ~ 60 ℃
• perating Temperature: –20 ℃ ~ 45 ℃

Product Showcase Video

Video link: BD-05T60WB Brushless Liquid Pump Youtube video

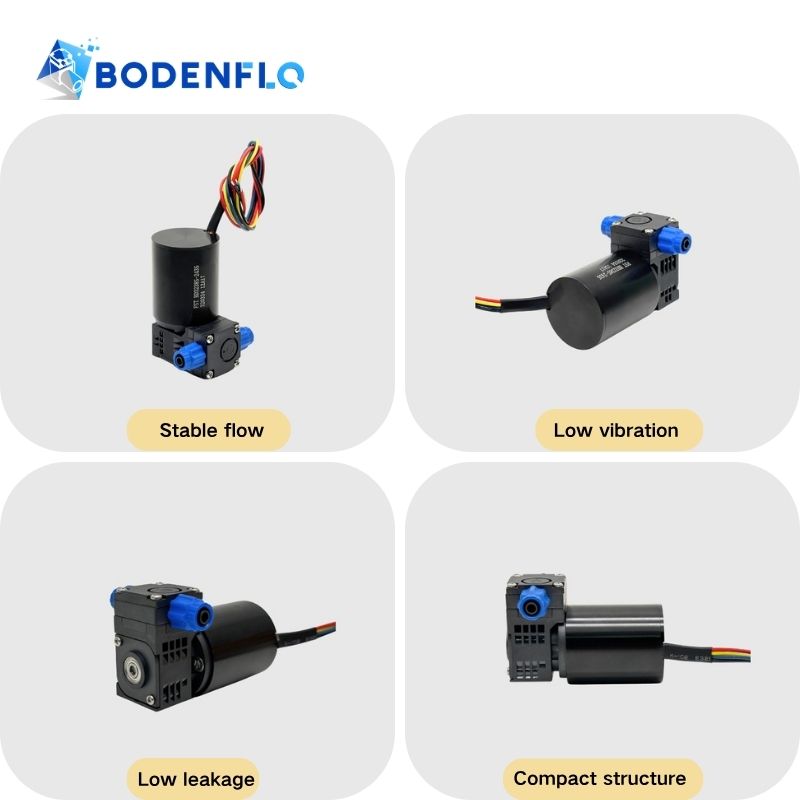

Key Features of 12V Brushless Motor

• 12V Brushless Motor for Long-Life Operation
  Eliminates brush wear, significantly extending service life while ensuring consistent torque and stable flow output for continuous-duty systems.
• Precision Micro Fluid Pump Performance
  Optimized for low flow applications requiring accurate dosing, stable flow curves, and repeatable liquid transfer.
• Advanced Diaphragm Liquid Pump Structure
  Oil-free, leak-resistant design ensures clean media handling, making it suitable for sensitive fluids and contamination-critical environments.
• Low Pulsation & Quiet Operation
  Engineered internal flow path reduces pulsation, improving system stability in analytical and printing applications.
• Compact & Energy Efficient Design
  With only 4W power consumption, this pump is ideal for portable, battery-powered, and embedded systems.

Applications

• Inkjet Printing Systems
  Provides stable, low-pulsation ink delivery to ensure precise droplet control and consistent print quality.
• Liquid Sampling Systems
  Enables accurate and repeatable sampling, making this micro fluid pump suitable for analytical instruments and monitoring devices.
• IVD & Diagnostic Equipment
  The diaphragm liquid pump design ensures contamination-free liquid transfer in medical and laboratory environments.
• Waste Liquid Transfer
  Reliable handling and discharge of chemical or biological waste fluids in controlled systems.
• Cooling & Circulation Modules
  Supports compact liquid circulation systems for thermal management in confined spaces.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

BODENFLO is a professional manufacturer of high-performance brushless liquid pumps, specializing in micro fluid pumps and diaphragm liquid pumps for OEM and industrial applications. With over 15 years of engineering experience, we provide reliable, customizable pump solutions tailored to global customers.

Our products comply with ISO9001, CE, RoHS, REACH, and FCC standards, ensuring consistent quality and international certification compliance.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
