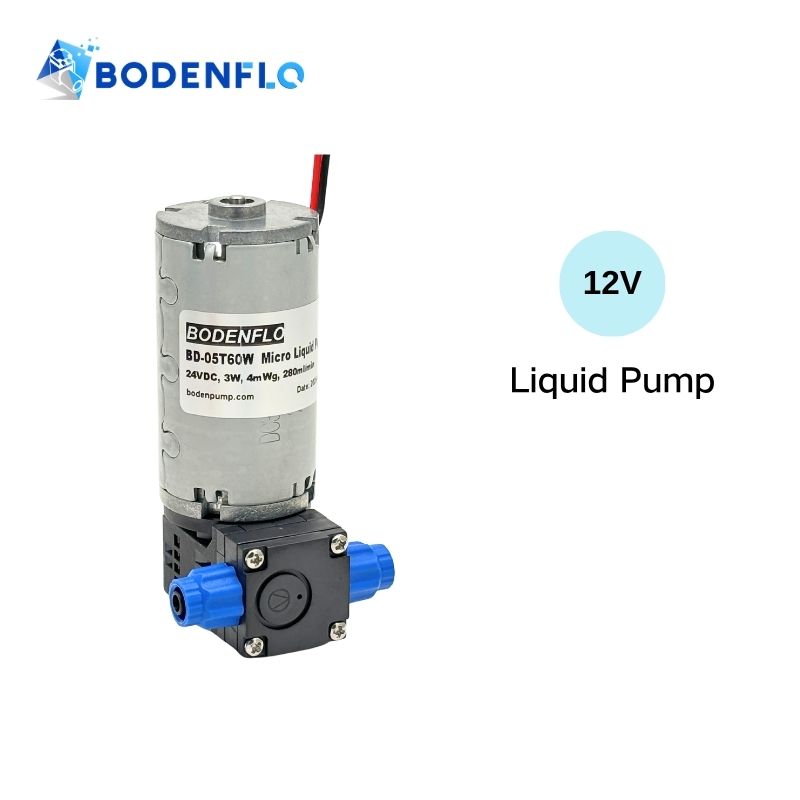

Diaphragm Liquid Pump 280ml Low Pulsation Micro Liquid Pumps BD-05T60W BODENFLO

This diaphragm pump delivers smooth, low-pulsation flow and reliable suction in a compact, energy-efficient design. Its corrosion-resistant construction ensures stable operation for medical rehabilitation devices, laboratory instruments, and small fluid handling systems, providing dependable performance in demanding applications.

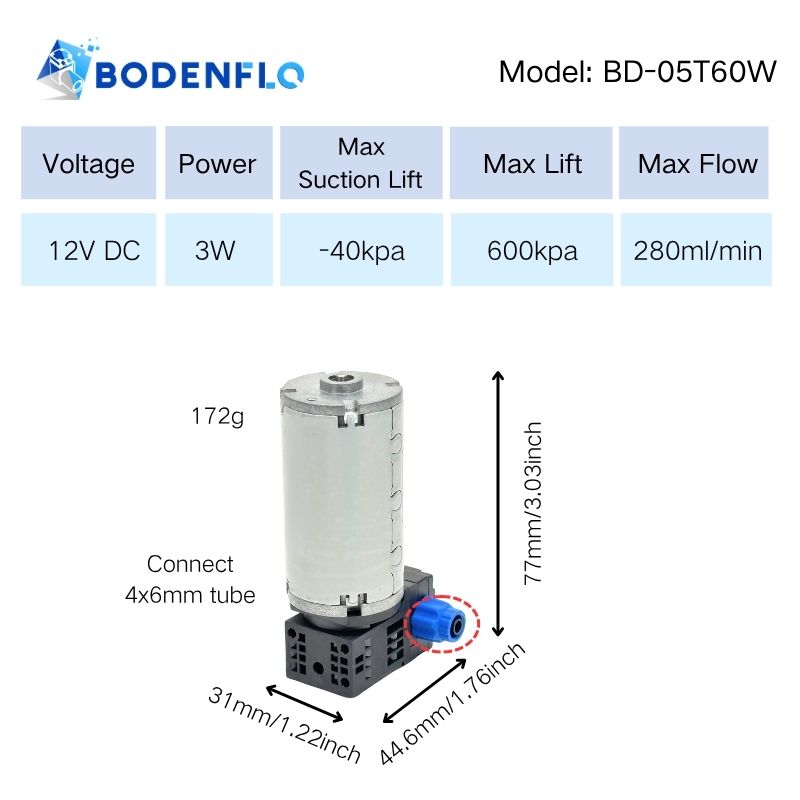

BD-05T60W Technical Specifications

• Name: Micro liquid pump
• Model: BD-05T60W
• Rated Voltage: 12V DC
• Max Power: 3 W
• Maximum Lift: 60 mWg (6 bar / 0.6 MPa / 87 psi）(intermittent work)
• Maximum Suction Lift: 4 mWg (–40 kPa / –0.04 MPa)
• Max Flow: 280 ml/min (0.28 LPM / 16.8 L/H）（Liquid flow, electronic flow meter）

General Specifications

• Medium: Water/Liquid
• Motor Type: Brush Motor
• Waterproof Lever: IP40
• Pump Head Material: PPS
• Valve Material：EPDM
• Diaphragm Material: EPDM
• Life time: 2000 Hours
• Noise: ＜60dB
• Dimention: 77 × 31 × 44.6 mm (3.03 × 1.22 × 1.76 inch)
• Weight: 172g(approx.)
• Storage temperature: -40℃~60℃
• Operating environment: -20℃~45℃

Product Showcase Video

Video link: BD-05T60W  Diaphragm Liquid Pump Youtube video

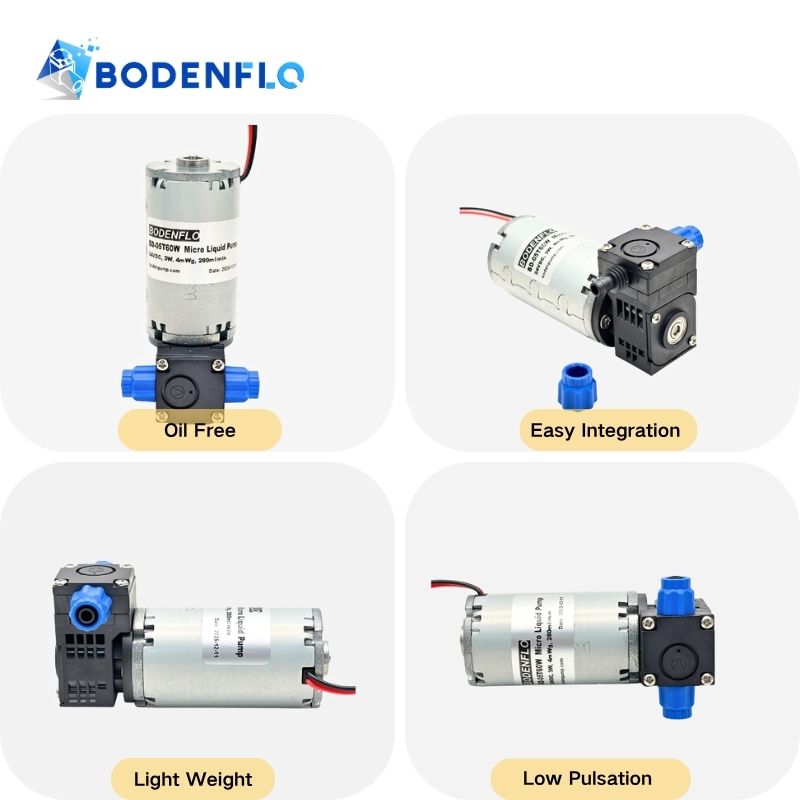

Key Features

• Smooth Water Flow: Delivers stable and consistent liquid transfer, ensuring precise operation for laboratory instruments, medical rehabilitation devices, and small fluid handling systems.
• High Pressure Resistance: Capable of handling intermittent high-lift demands without performance loss, suitable for dosing, ink transfer, and compact automation applications.
• Low Pulsation: Minimizes vibration and flow fluctuations, maintaining accuracy and reliability in sensitive systems and precision devices.
• Corrosion-Resistant: Pump head, diaphragm, and valve materials resist chemical wear, ensuring long-lasting operation in aqueous or mild chemical environments.
• Long Life: Durable DC brushed motor and high-strength PA66 body guarantee extended service life under continuous or intermittent use, reducing maintenance and replacement costs.

Applications

• Medical Rehabilitation Equipment: Ideal for fluid handling in small medical devices.
• Laboratory & Analytical Instruments: Supports precise liquid transfer in compact lab devices, analytical instruments, and testing equipment.
• Industrial & Automation Systems: Perfect for miniature dosing systems, ink transfer, and low-flow fluid handling modules in automation equipment.

Manufacturer Information

Brand: BODENFLO

Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
