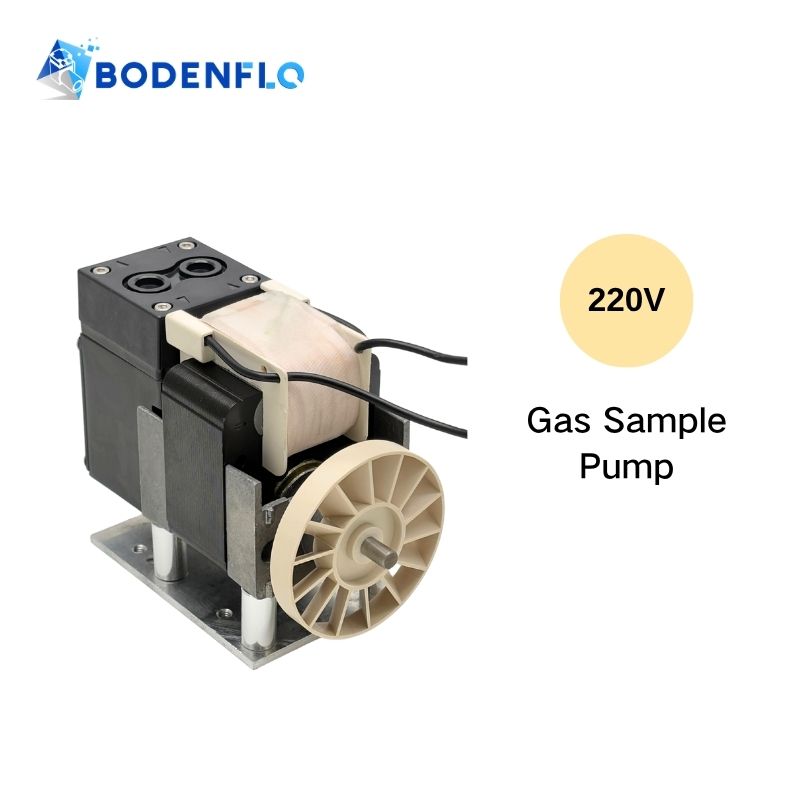

220V AC Gas Sampling Pump for CEMS Oil-Free Diaphragm Vacuum Pump

Designed for CEMS and continuous gas sampling systems, the BD-05T0610AC is a 220V AC gas sampling pump combining up to 7.5 L/min airflow, ≥ –85 kPa negative pressure, and 2.5 bar positive pressure in a compact diaphragm pump structure. The pump uses a shaded pole AC motor, PPS pump head, and configurable diaphragm and valve materials to support stable gas transfer in fixed analytical and monitoring equipment.

Gas Sampling Pump BD-05T0610AC Technical Specifications:

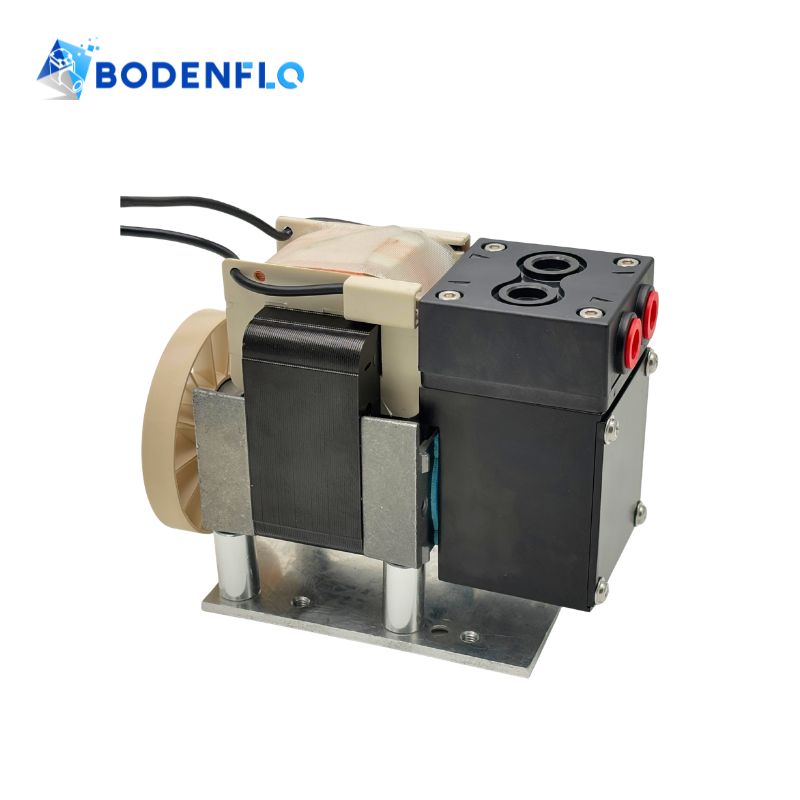

• Name: Micro Sample Pump
• Model: BD-05T0610AC
• Rated Voltage: 220V AC / 50Hz
• Max Power: 50 W

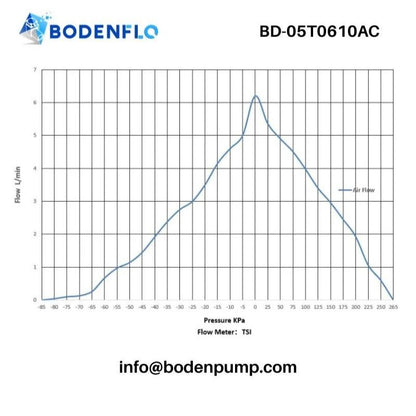

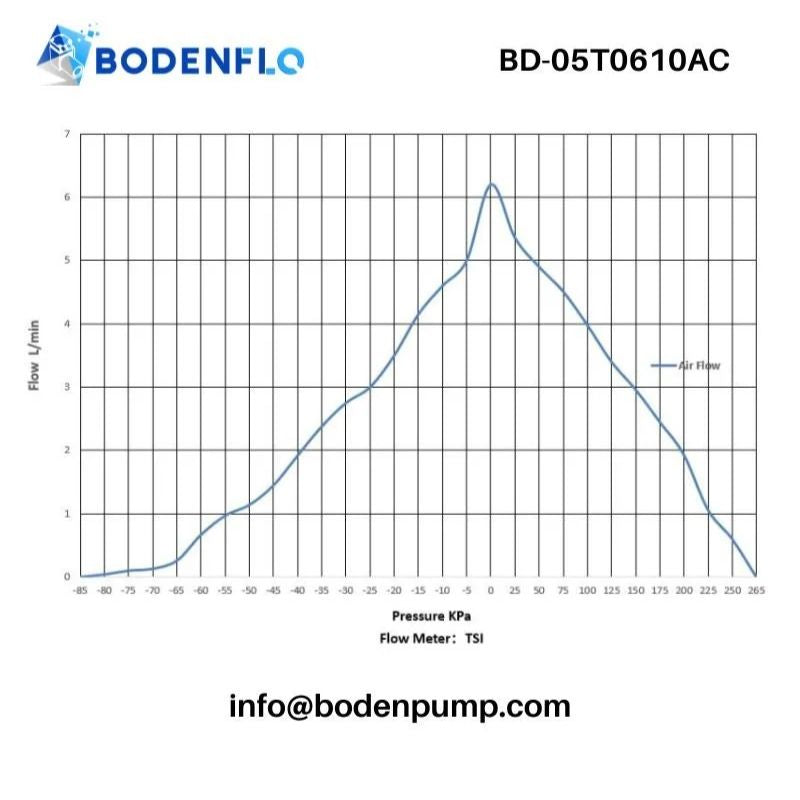

• Max Flow: 7.5 L/min (float flowmeter) / 6.2 L/min (electronic flowmeter)
• Max Negative Pressure: ≥ –85 kPa (–0.085 MPa / –0.85 bar / –12.3 psi)
• Max Positive Pressure: 2.5 bar (250 kPa / 0.25 MPa / 36.3 psi)

Diaphragm Vacuum Pump General Specifications:

• Motor Type: Shaded Pole Motor
• Waterproof Level: IP00
• Pump Head Material: PPS
• Diaphragm / Valve Material: EPDM
• Pump Body: Aluminum Alloy with Electrophoretic Coating
• Life Time: Over 8,000 Hours

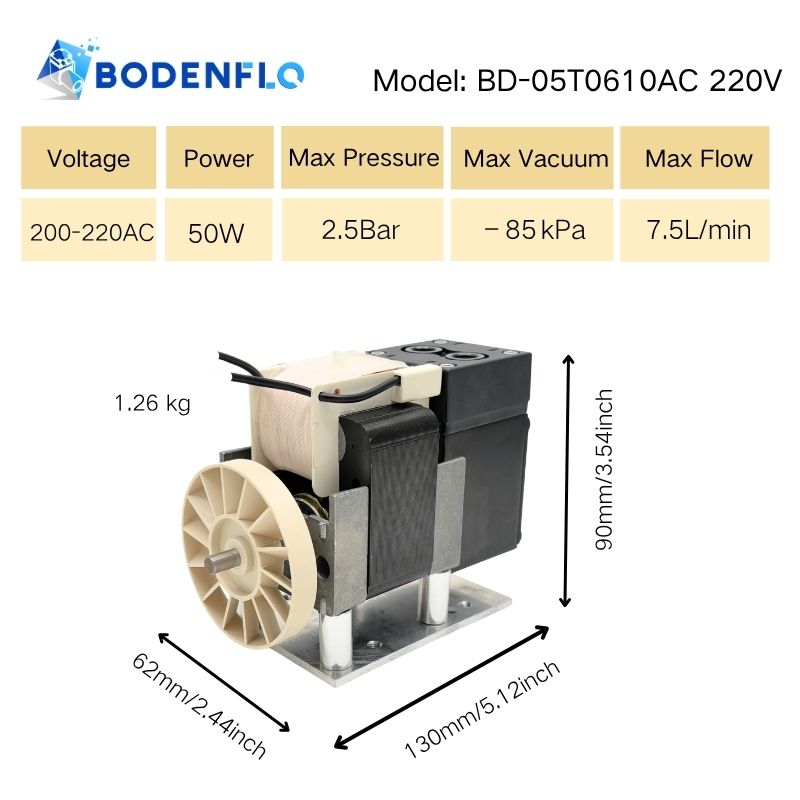

• Dimension: 130 × 62 × 90 mm (5.12 × 2.44 × 3.54 inch)
• Weight: 1.26 kg (2.78 lb approx.)
• Storage Temperature: –40℃ to 60℃
• Operating Environment: 0℃ to 45℃

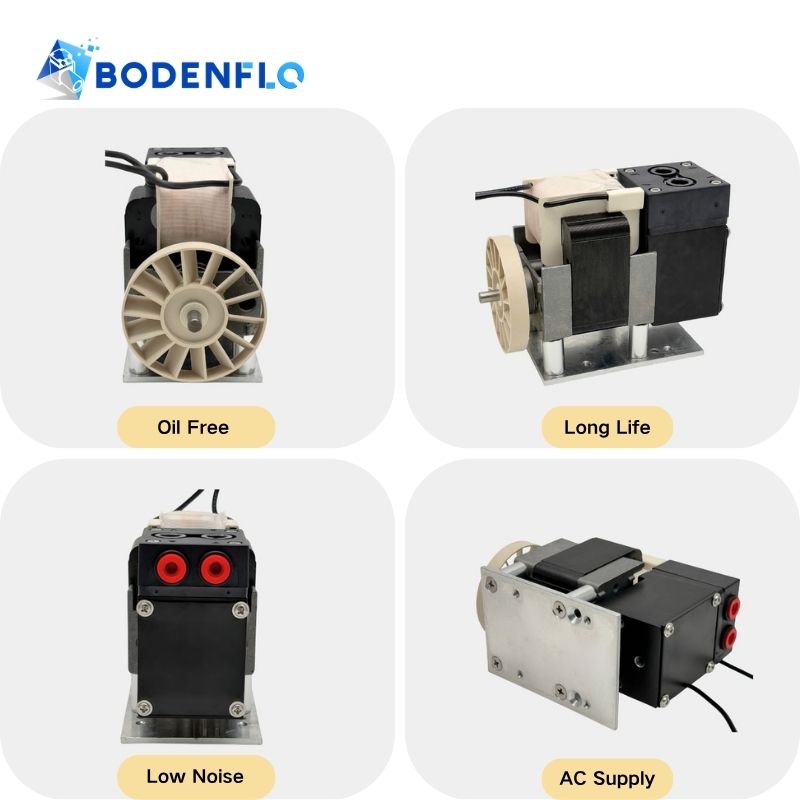

Key Features

• Strong Vacuum Performance – Delivers maximum negative pressure of ≥ –85 kPa for continuous gas extraction and sampling applications.
• Up to 7.5 L/min Sampling Flow – Provides up to 7.5 L/min airflow to support continuous gas sampling and transfer in monitoring and analytical equipment.
• 2.5 Bar Positive Pressure – In addition to vacuum operation, the diaphragm pump can generate up to 2.5 bar positive pressure for gas transfer and circulation.
• 220V AC / 50Hz Operation – Uses a shaded pole AC motor designed for direct operation from a standard 220V AC / 50Hz power supply.
• Low Vibration Design – The dynamically balanced pump structure helps reduce vibration while maintaining stable airflow during operation.
• Over 8,000 Hours Service Life – The shaded pole motor with ball-bearing construction is designed for more than 8,000 hours of operation under suitable conditions.
• Low-Leakage Gas Path – The dedicated sealing structure helps minimize gas leakage and maintain stable sampling performance.
• EPDM Diaphragm and Valve – Uses EPDM diaphragm and valve components with a PPS pump head for reliable gas-handling performance.

Applications

• CEMS Gas Sampling – Provides continuous sample extraction for continuous emission monitoring systems and transfers gas toward downstream conditioning and analysis components.
• Industrial Gas Analyzers – Supplies stable suction and airflow for fixed gas analyzers requiring active sample extraction.
• Emission Monitoring Equipment – Supports continuous gas intake and transfer in industrial exhaust and emission monitoring systems.
• Environmental Monitoring Equipment – Delivers sampled gas to internal sensors and measurement chambers in stationary monitoring devices.
• Gas Sampling Systems – Suitable for equipment requiring continuous suction, gas transfer, or internal gas circulation.
• Analytical and Measurement Equipment – Provides stable airflow with relatively low vibration for laboratory and industrial analytical instruments.
