Liquid Micro Pump 300 mL 24V Electric Diaphragm Water Pump Mini BD-05TF300WB BODENFLO

Designed for precision liquid transfer, this liquid micro pump delivers smooth and stable flow performance with low pulsation and strong suction capability. As a high-efficiency electric diaphragm water pump mini, the BD-05TF300WB is engineered for demanding fluid control tasks in digital printing, laboratory automation, biochemical systems, and compact industrial equipment.

Liquid Micro Pump BD-05TF300WB Technical Specifications:

• Name: Brushless Liquid Pump
• Model: BD-05TF300WB
• Rated Voltage: 24V DC
• Max Power: 15 W
• Max Suction Lift: 6 mWg (–60 kPa / –0.06 MPa / –8.7 psi)
• Max Flow: 300 mL/min (0.30 LPM / 18 L/H)（Liquid flow, water）
• Air Flow: 2.6 L/min (2.6 LPM / 156 L/H)
• Max Vacuum: –60 kPa (–0.06 MPa / –8.7 psi)
• Max Continuous lift Head: 10 mWg (1 bar / 0.1 MPa / 14.5 psi)
• Max Instantaneous lift Head: 17 mWg (1.7 bar / 0.17 MPa / 24.7 psi) (intermittent work)
• Max Pressure: 1.7Bar (170kPa / 0.17 MPa)

Electric Diaphragm Water Pump Mini General Specifications:

• Medium: Water / Liquid / Air
• Motor Type: Brushless Motor
• Waterproof Lever: IP40
• Pump Head Material: PPS
• Valve Material: EPDM
• Diaphragm Material: EPDM
• Life time: 6000–8000 Hours
• Noise:  ＜60dB
• Dimention: 69 × 30 × 58 mm (2.72 × 1.18 × 2.28 inch)
• Weight: 170g (approx.)
• Storage temperature: -40℃~60℃
• Operating environment: -20℃~45℃

Product Showcase Video

Video link: BD-05TF300WB 2.6L  Miniature Liquid Pump Youtube video

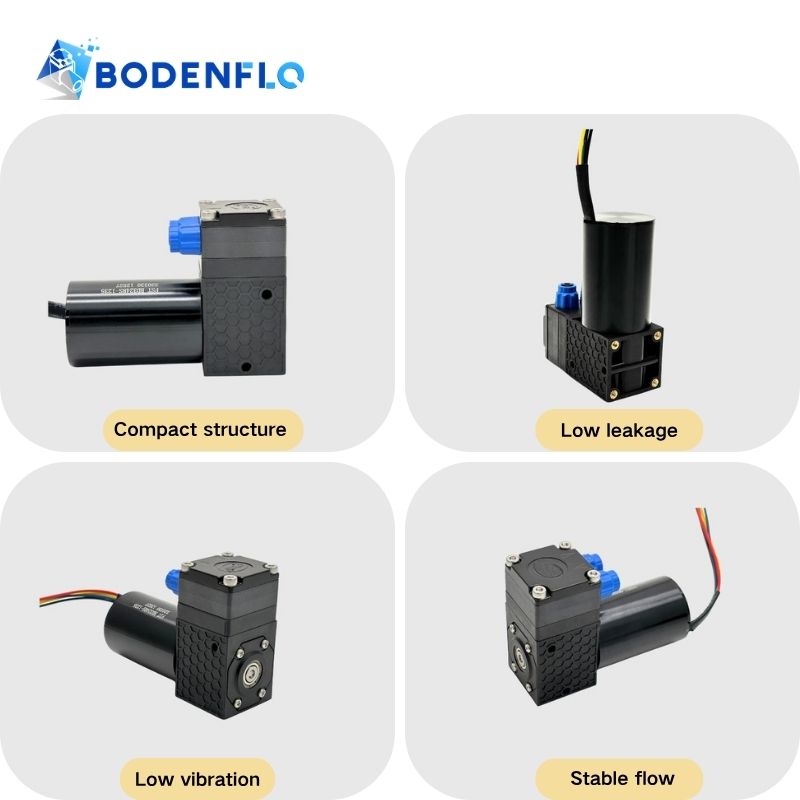

Key Features

• Precision Liquid Delivery – This liquid micro pump provides highly stable 300 mL/min flow performance, making it suitable for systems requiring accurate dosing and continuous liquid circulation.
• Low Pulsation Fluid Output – The optimized diaphragm chamber minimizes flow fluctuation, helping improve dispensing consistency in sensitive equipment such as printers and analyzers.
• Strong Pressure & Suction Performance – With up to 1.7 bar pressure and –60 kPa vacuum capability, this electric diaphragm water pump mini supports both suction transfer and pressurized liquid delivery.
• Brushless Long-Life Operation – The high-efficiency brushless motor significantly extends service life while reducing heat generation and maintenance frequency.
• Chemical Resistance Structure – Equipped with PPS pump head and customizable diaphragm materials, the pump supports long-term use with water-based liquids, ink, and mild chemical media.
• OEM Customization Available – BODENFLO supports customized voltage, interface, flow tuning, diaphragm materials, and project-based OEM integration.

Applications

• Digital Printing Equipment – Suitable for stable ink transfer and precise micro-fluid control in compact digital printing and marking systems.
• Biochemical Analyzers – Supports accurate liquid dosing and sample transport in automated biochemical analysis equipment.
• Chemical Analysis Systems – Enables reliable micro-liquid handling for reagent delivery and analytical testing processes.
• Liquid Sampling Devices – Ideal for controlled liquid collection and transfer in portable or embedded sampling instruments.

Manufacturer Information:

Brand: BODENFLO
Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
