Metal Spring Shock Absorber Vibration Isolator for BD-07 High Pressure Air Pumps | BD-M1 BODENFLO

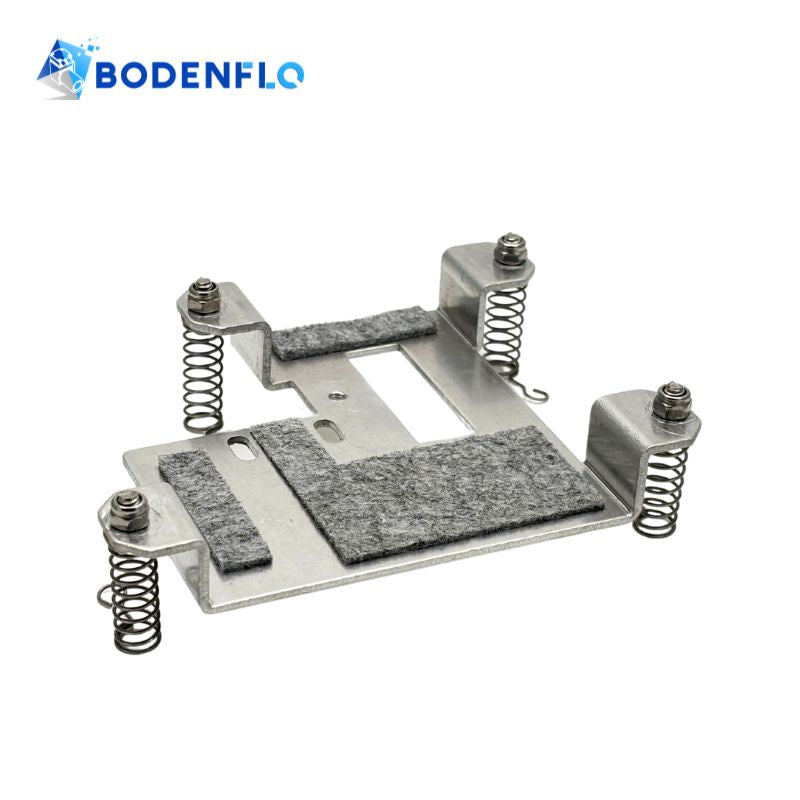

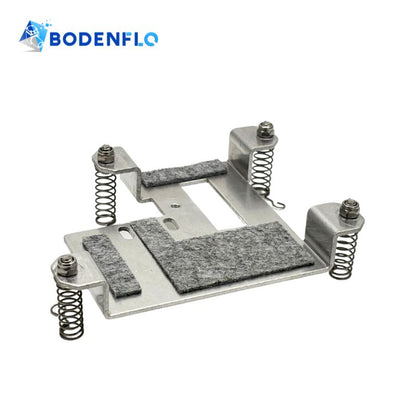

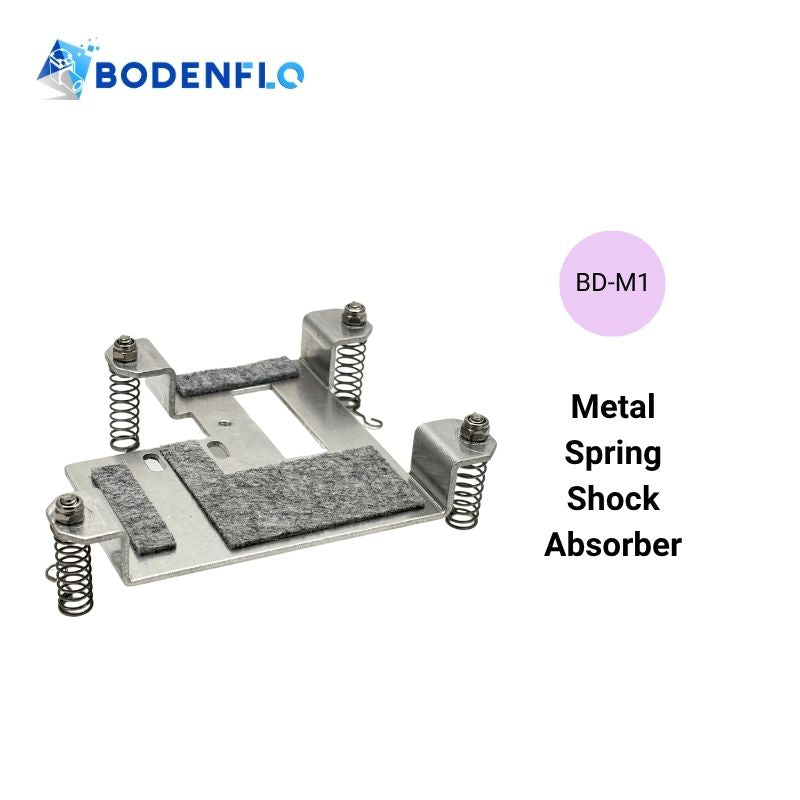

The BD-M1 Metal Spring Shock Absorber is designed to reduce vibration and structure-borne noise in BODENFLO BD-07 series high-pressure air pump systems. Featuring an aluminum-alloy base plate, stainless-steel springs, and felt pads, this anti-vibration pump mount helps absorb operating shock and isolate mechanical vibrations. Its compact, lightweight construction supports stable pump installation in OEM equipment and industrial applications.

Metal Spring Shock Absorber BD-M1 Specifications

• Name: Air Pump Vibration Isolator
• Model: BD-M1
• Recommended Pump Pressure: 4–7 bar
• Material: Aluminum-alloy base plate, stainless-steel springs, and felt pads

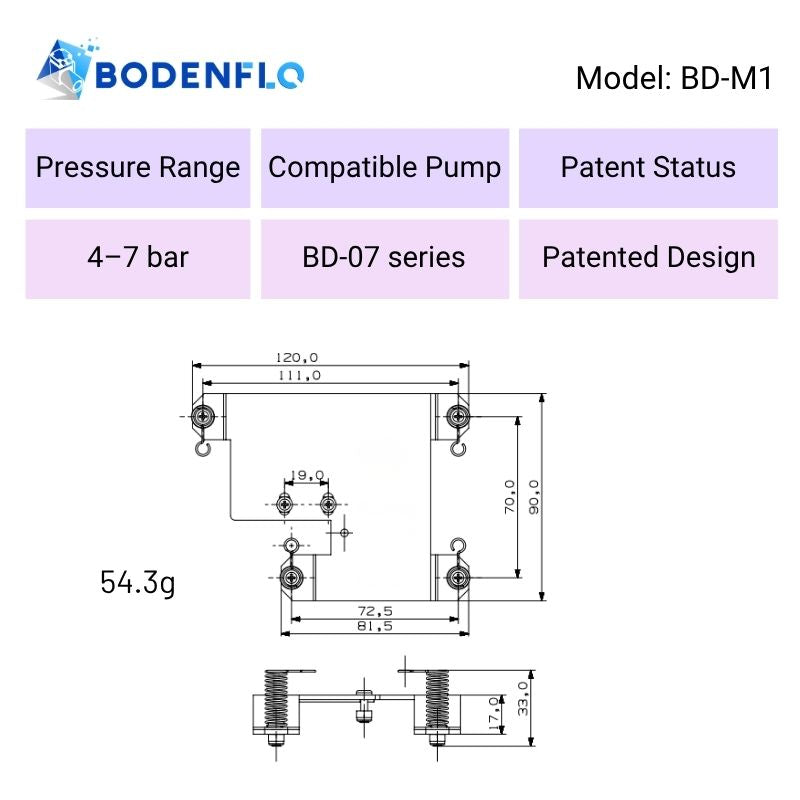

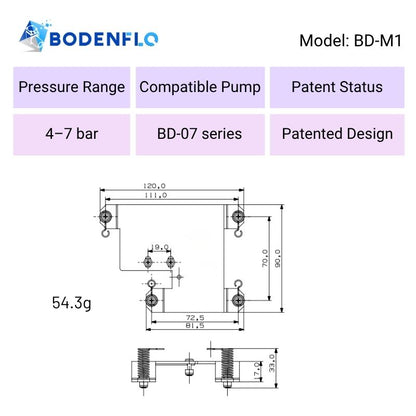

• Dimensions: Approx. 120 × 90 × 33 mm
• Weight: Approx. 54.3 g
• Compatible Pumps: BD-07 Series
• Patent Status: Patented Design

Anti-Vibration Pump Mount Features

• Vibration Isolation: Helps reduce mechanical vibration transmitted from the pump to the equipment structure.
• Spring Shock Absorption: Stainless-steel springs absorb operating shock and help minimize vibration during pump operation.
• Structure-Borne Noise Reduction: Helps reduce noise caused by vibration transfer through mounting surfaces.
• Durable Construction: Combines an aluminum-alloy base plate, stainless-steel springs, and felt pads for mechanical support and vibration damping.
• Compact Design: Lightweight 54.3 g construction supports integration into industrial equipment.
• BD-07 Pump Compatibility: Designed for BODENFLO BD-07 series high-pressure air pumps operating in the recommended 4–7 bar pressure range.

Installation Guidelines

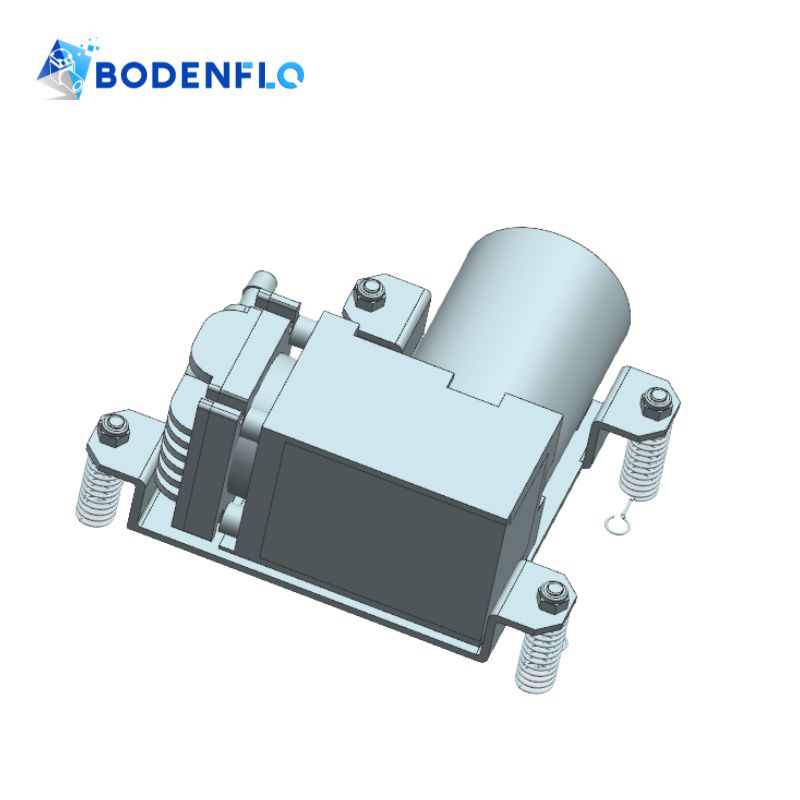

• Pump Mounting: Install the shock absorber between the compatible BD-07 pump and the equipment mounting surface.
• Spring Clearance: Leave sufficient clearance for the springs to move freely during pump operation.
• Avoid Over-Compression: Do not fully compress the springs during installation, as this may reduce vibration isolation effectiveness.
• Mounting Stability: Ensure the pump and mounting base are properly secured without restricting spring movement.

Important Notes

• Designed primarily for BODENFLO BD-07 series high-pressure air pumps. Confirm compatibility before use with other pump models.
• The recommended 4–7 bar range refers to the intended pump application, not the shock absorber's mechanical load capacity.
• Actual vibration reduction depends on pump operating conditions, mounting configuration, and equipment structure.
• Avoid excessive spring compression or installation interference that may limit vibration isolation performance.
• Inspect the mounting assembly periodically to ensure secure installation and proper spring movement.

Package & Shipping

• Package Includes: 1 × BD-M1 Metal Spring Shock Absorber
• Lead Time: Typically 3–5 working days for standard in-stock orders.
• Shipping: DHL or FedEx express shipping available.

Manufacturer Information

Brand: BODENFLO

Manufacturer: Shenzhen Boden Technology Development Co., Ltd.

Country of Origin: China
