Mini Air Pump Silencer Muffler | BD-001S BODENFLO

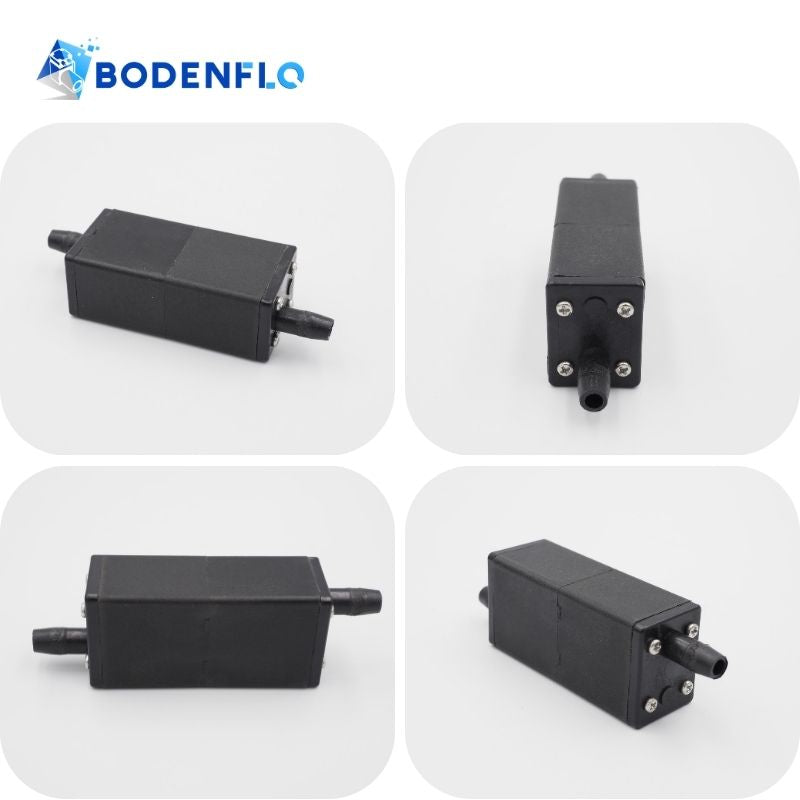

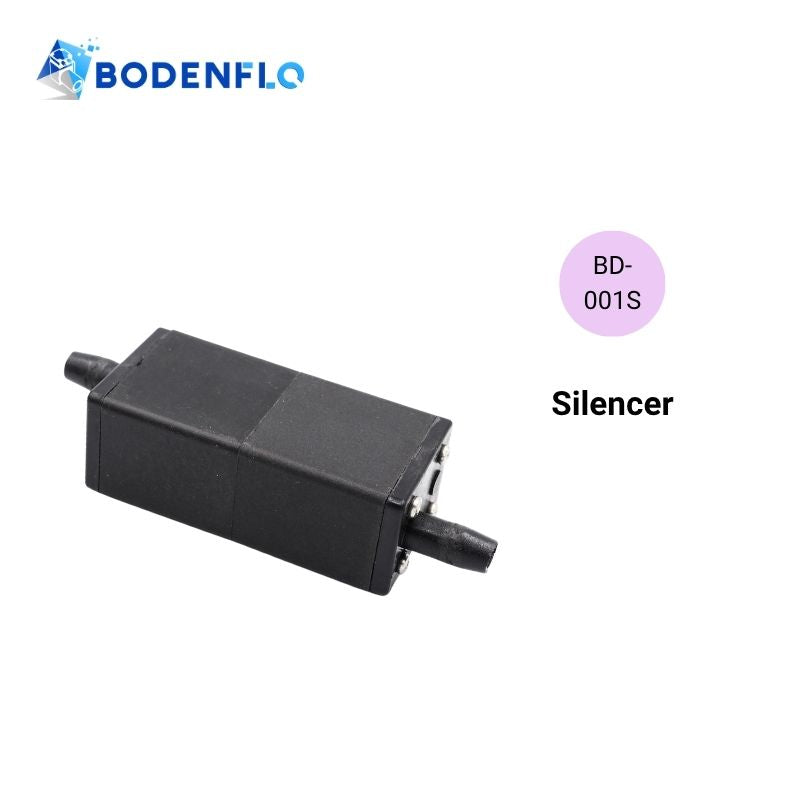

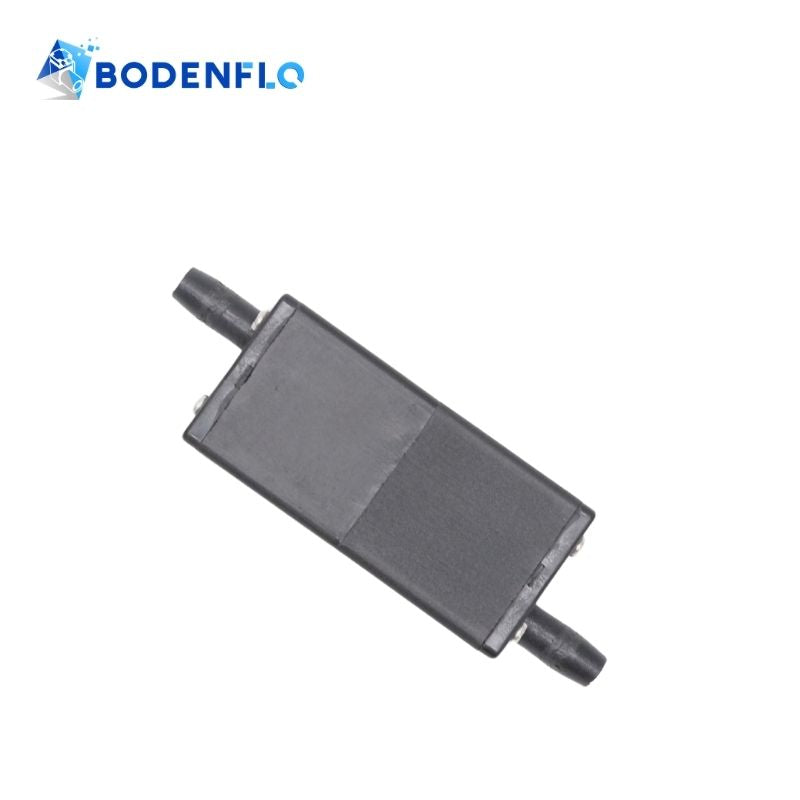

The BD-001S Mini Air Pump Silencer helps reduce airflow noise in miniature air pump and vacuum pump systems. This compact air pump muffler features a PPS housing and weighs approximately 38 g. It can be integrated into compatible BODENFLO BD-04, BD-07, and BD-08 series pumps to support noise reduction in OEM equipment and pneumatic systems.

Mini Air Pump Silencer BD-001S Specifications

• Name: Air Pump Muffler
• Model: BD-001S

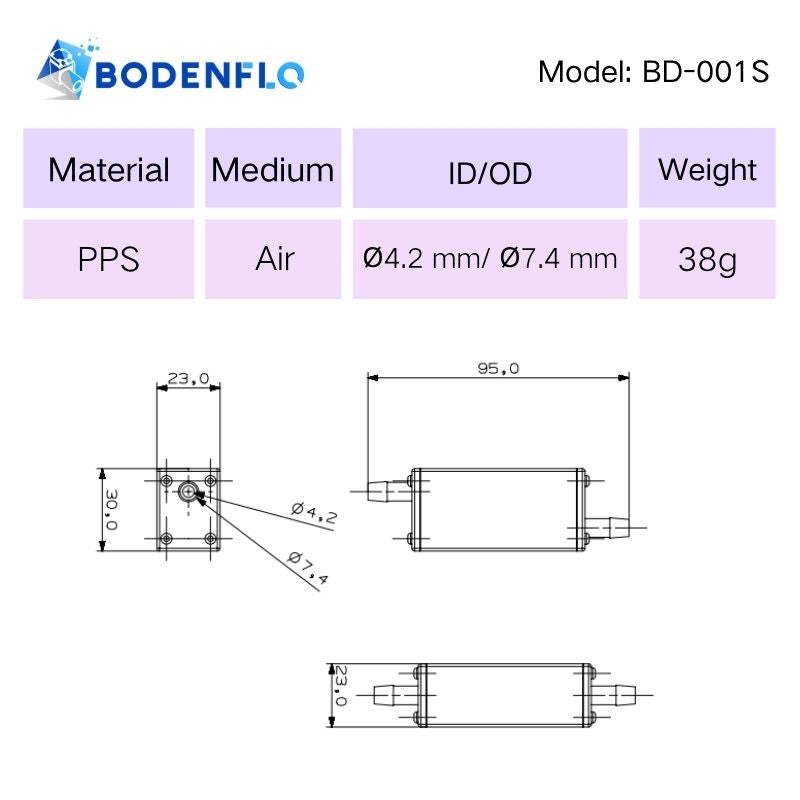

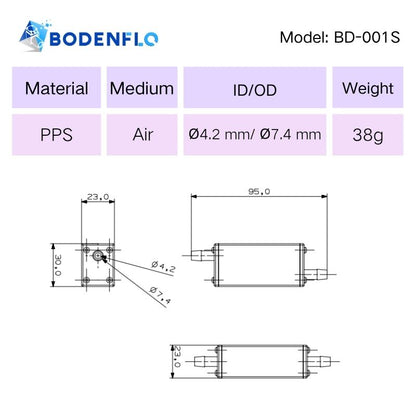

• Inlet/Outlet Diameter: Φ4.2 mm / Φ7.4 mm
• Dimensions: Approx. 95 × 23 × 30 mm
• Weight: Approx. 38 g
• Material: PPS
• Applicable Medium: Air
• Compatible Pump Series: BD-04, BD-07, BD-08

Micro Pump Noise Reducer Features

• Airflow Noise Reduction: Helps reduce airflow noise generated during pump operation.
• Compact Design: Lightweight construction allows integration into space-limited equipment.
• PPS Housing: Durable construction for use in air-handling systems.
• Pump Compatibility: Designed for selected BODENFLO micro air and vacuum pump series.

Installation Guidelines

• Positive-Pressure Operation: Connect the silencer to the pump inlet.
• Vacuum Operation: Connect the silencer to the pump outlet.
• Air Only: Prevent liquids, dust, and foreign particles from entering the silencer.

Pump Compatibility and Performance Considerations

The BD-001S air pump muffler is intended for selected BODENFLO BD-04, BD-07, and BD-08 series pumps. Compatibility should be confirmed based on the specific pump model, tubing connections, airflow, and installation requirements.

• Airflow: Noise reduction may be less noticeable in systems operating below 10 L/min.
• Operating Conditions: Actual acoustic performance depends on pump speed, airflow, pressure, and system configuration.
• Flow Resistance: Additional resistance in the air path may affect pump performance. Verify the installed system under actual operating conditions.
• Noise Sources: The silencer primarily addresses airflow-related noise and does not directly eliminate motor vibration or mechanical noise.

For applications with specific noise limits, we recommend evaluating the silencer together with the selected pump and complete pneumatic system.

Package & Shipping

• Package Includes: 1 × BD-001S Mini Air Pump Silencer
• Lead Time: Typically 3–5 working days for standard in-stock orders.
• Shipping: DHL or FedEx express shipping available.

Manufacturer Information

Brand: BODENFLO

Manufacturer: Shenzhen Boden Technology Development Co., Ltd.

Country of Origin: China

Engineered for Your Application. Built by BODENFLO.

Founded in Shenzhen in 2013, BODENFLO specializes in the development and manufacturing of miniature air pumps, vacuum pumps, compressors, rotary vane pumps, and liquid pumps, along with compatible accessories for OEM and industrial equipment.

In addition to our pump products, we offer airflow silencers and other pump accessories to support system integration, noise reduction, and reliable operation. Our engineering team assists customers with accessory selection, pump compatibility, tubing connections, and installation requirements for different applications.

Our manufacturing operations follow an ISO 9001:2015-certified quality management system, with CE and RoHS documentation available for applicable products.
