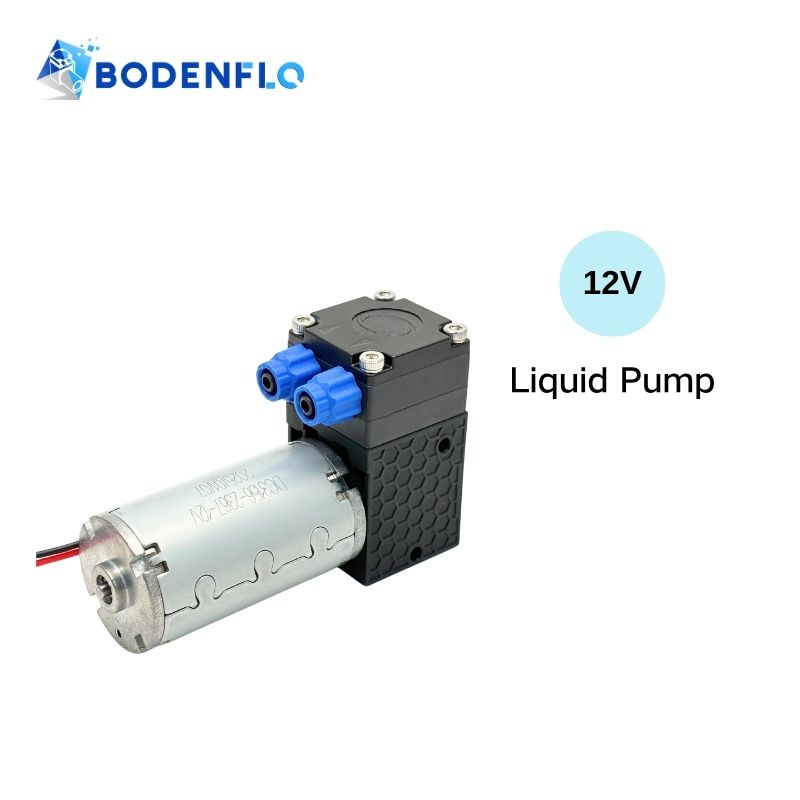

Micro Diaphragm Water Pump 300ml/min Small Suction Pump for Coding Machine BD-05TFD300W BODENFLO

This BD-05TFD300W micro diaphragm water pump delivers smooth, low-pulsation flow with reliable suction in a compact, energy-efficient design. Its chemical-resistant construction ensures stable operation in coding machines, laboratory instruments, and small fluid handling systems. Ideal for neutral and corrosive liquids, it provides dependable performance under continuous or intermittent use.

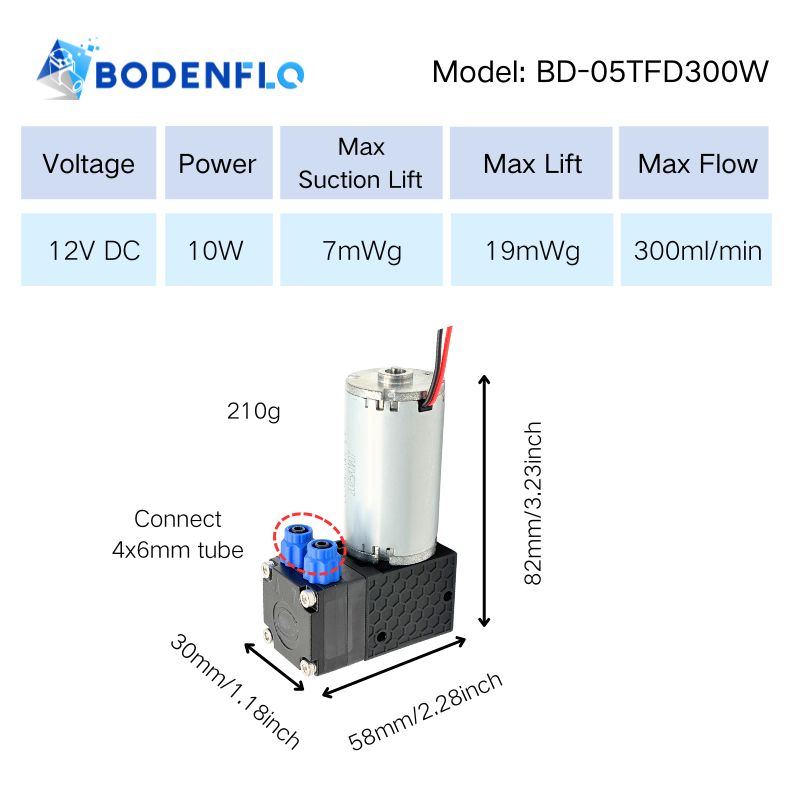

BD-05TFD300W Technical Specifications:

• Name: Liquid micro pump
• Model: BD-05TFD300W
• Rated Voltage: 12V DC
• Max Power: 10 W
• Maximum Lift: 19 mWg (1.9 bar / 0.19 MPa / 27.6 psi)
• Maximum Suction Lift: 7 mWg (–73 kPa / –0.073 MPa)
• Max Water Flow: 300 ml/min (0.3 LPM / 18 L/H)

General Specifications:

• Medium: Water/Liquid
• Motor Type: DC Brush Motor
• Waterproof Level: IP40
• Pump Head Material: PPS
• Valve Material: EPDM
• Diaphragm Material: EPDM
• Life Time: 2000 Hours
• Noise: ＜60dB
• Dimension: 82 × 30 × 58 mm(3.23 × 1.18 × 2.28 inch)
• Weight: 210 g (approx.)
• Storage Temperature: -40℃~60℃
• Operating Environment: -20℃~45℃

Product Showcase Video

Video link: BD-05TFD300W Micro Diaphragm Water Pump Youtube video

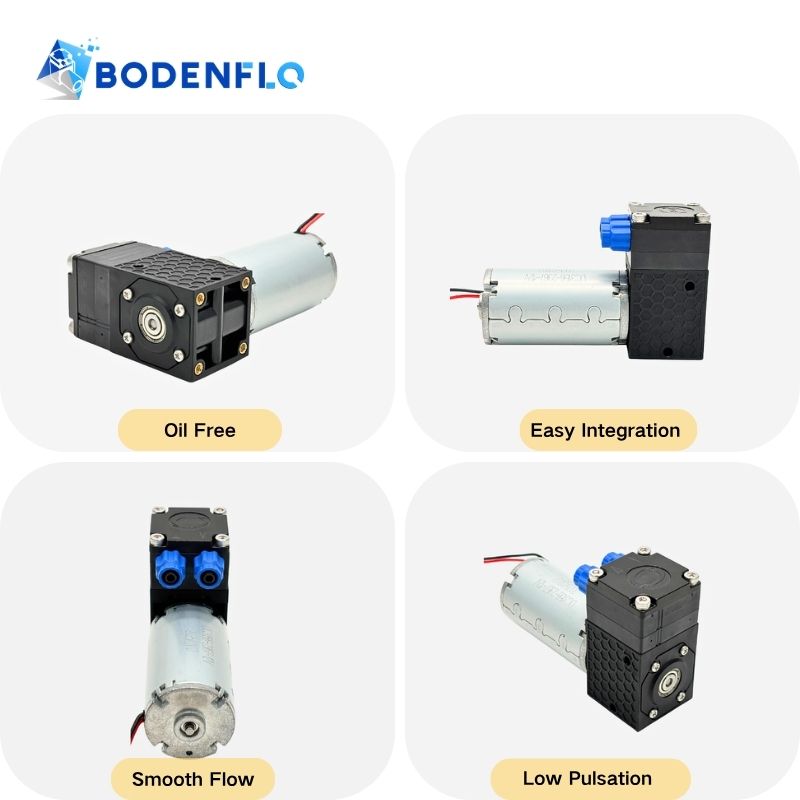

Key Features:

• Smooth Water Flow
  Delivers stable and consistent liquid transfer for coding machines, laboratory devices, and precision fluid handling systems.
• High Pressure Resistance
  Capable of handling intermittent high-lift demands without performance loss.
• Low Pulsation
  Minimizes vibration and flow fluctuations, ensuring accurate operation in sensitive systems.
• Corrosion-Resistant
  Pump head, diaphragm, and valve materials resist chemical wear for long-lasting operation in aqueous or mild chemical environments.
• Long Life
  Durable DC brush motor and high-strength PA66 body provide extended service life under continuous or intermittent use.

Applications:

• Coding & Inkjet Machines – Provides stable, low-pulsation liquid transfer for industrial coding systems, inkjet printers, and marking devices, ensuring precise dosing and consistent print quality even in high-speed production lines.
• Laboratory & Analytical Instruments – Ideal for microfluidic handling in lab equipment, chemical analyzers, and small-scale reagent dispensing systems, supporting accurate sample delivery and reliable suction in compact setups.
• Industrial Automation & Dosing Systems – Perfect for integration into miniature dosing pumps, automated liquid transfer modules, and low-flow fluid management systems in packaging, electronics manufacturing, or environmental monitoring devices.
• Medical & Rehabilitation Devices – Can be used in compact fluid handling modules for therapy mattresses, lymphatic treatment systems, or small medical instruments requiring precise, gentle liquid flow.

Manufacturer Information:

· Brand: BODENFLO

· Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
