Micro Pump Silicone Vibration Damper Mount 42mm ID for BD-07 Pumps | BD-S507 BODENFLO

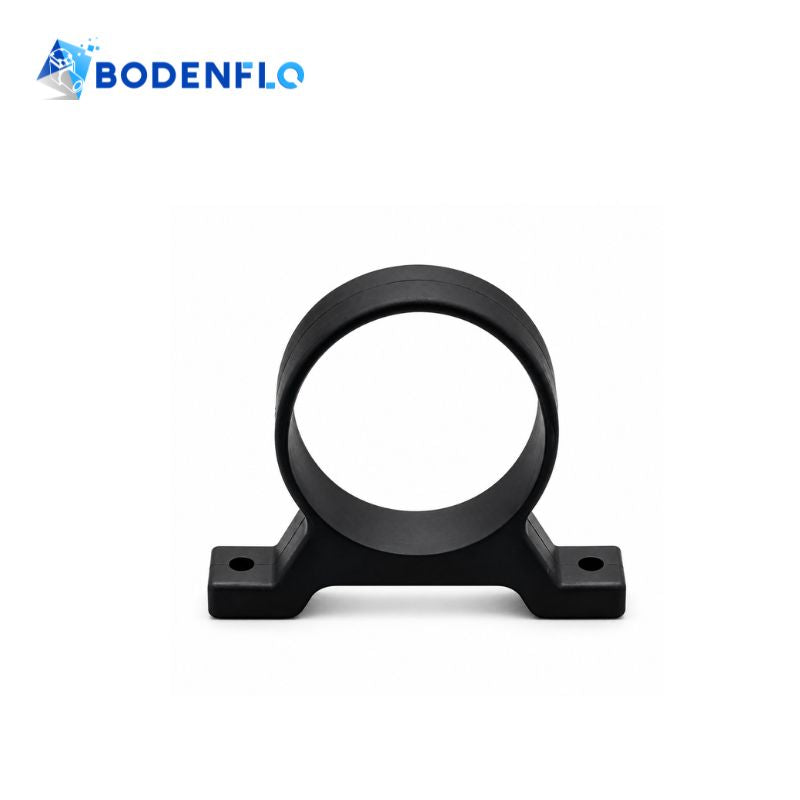

The BD-S507 Micro Pump Silicone Vibration Damper Mount is designed to support secure installation and vibration reduction for BODENFLO BD-07 series pumps. Made from flexible silicone with a 42 mm inner diameter, this lightweight silicone pump mount helps absorb operating vibration, reduce structure-borne noise, and minimize mechanical impact. Designed for use with two mounting brackets per pump, it provides stable support for BD-07 pumps in OEM equipment and industrial pneumatic systems.

Micro Pump Silicone Vibration Damper BD-S507 Specifications

• Name: Anti Vibration Pump Bracket
• Model: BD-S507

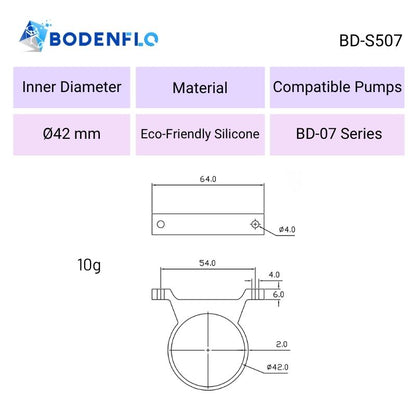

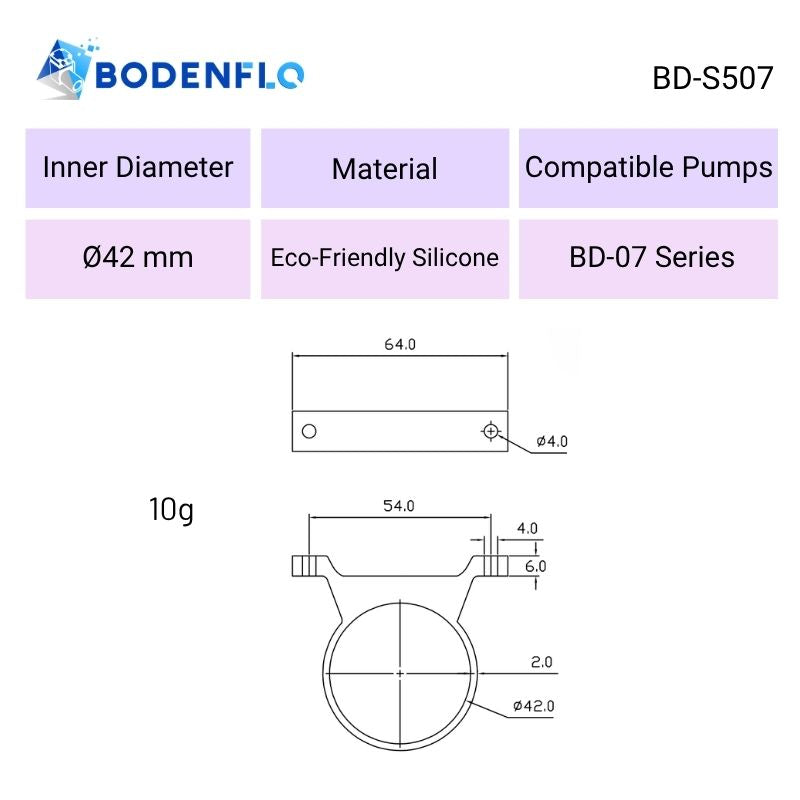

• Inner Diameter: Ø42 mm (1.65 in)
• Overall Dimensions: Approx. 64 × 12 × 53 mm (2.52 × 0.47 × 2.09 in)
• Weight: Approx. 10 g per bracket
• Material: Eco-Friendly Silicone
• Compatible Pumps: BODENFLO BD-07 Series
• Brackets per Pump: 2 pcs

Silicone Pump Mount Features

• Brushed & Brushless Compatibility: Designed for compatible BD-07 brushed and brushless micro pumps, supporting different motor configurations with one mounting bracket design.
• Flexible Motor Housing Fit: The Ø42 mm silicone opening accommodates Ø44.5 mm brushed motors through elastic stretching and Ø42 mm brushless motors with a nominal diameter match.
• Dual-Bracket Mounting Support: Two silicone brackets work together to support the pump and maintain its position within the equipment.
• Vibration and Noise Reduction: Flexible silicone helps absorb motor vibration and reduce structure-borne noise transmitted to equipment mounting surfaces.
• Compact and Lightweight: Each bracket measures approximately 64 × 12 × 53 mm and weighs 10 g, making it suitable for compact OEM and industrial equipment.


Installation Guidelines

• Motor Housing Compatibility: The BD-S507 silicone bracket features a Ø42 mm inner diameter and is designed for compatible BD-07 brushed motors with Ø44.5 mm housings and brushless motors with Ø42 mm housings.

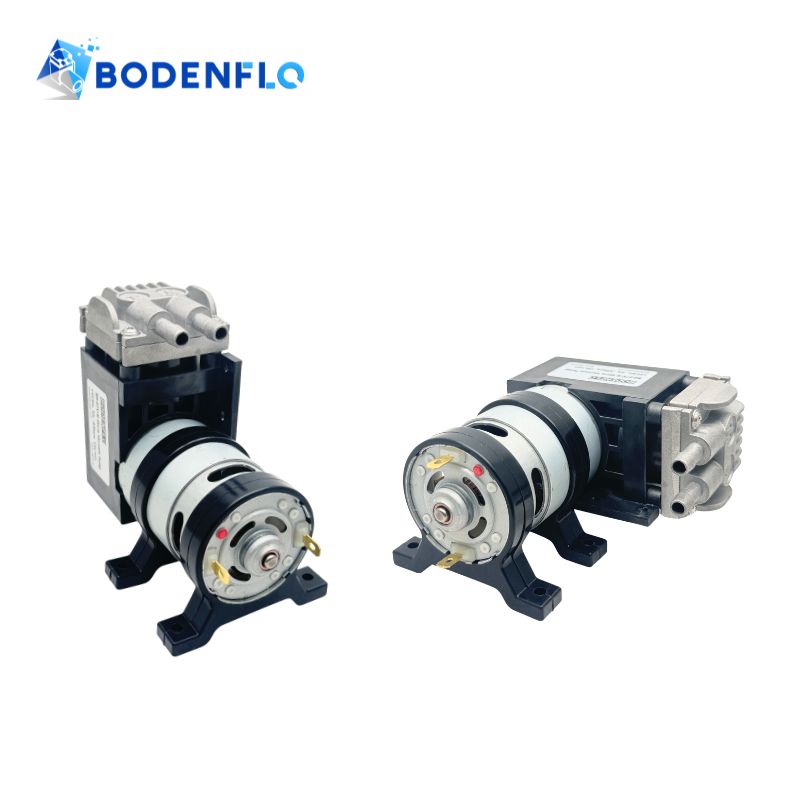

• Pump Installation: Position two BD-S507 silicone brackets around the designated motor mounting sections. For brushed motors, carefully stretch the silicone brackets around the Ø44.5 mm housing.
• Bracket Mounting: Secure both brackets to the equipment mounting surface using suitable mounting hardware. Verify the available installation space and mounting-hole positions before assembly.
• Vibration Isolation: Ensure the silicone brackets are correctly positioned without excessive stretching, compression, twisting, or interference with other pump components.

Compatibility with Other Miniature Pumps: For other miniature pumps, refer to the Ø42 mm bracket inner diameter and the motor housing dimensions of the compatible BD-07 pumps when evaluating suitability. Confirm the mounting dimensions, bracket fit, and installation space before use.

Important Notes

• Designed for BODENFLO BD-07 series pumps. Confirm mounting dimensions before use with other pump models.
• Two BD-S507 brackets are required per pump for the intended mounting arrangement.
• Confirm the pump's mounting diameter and installation dimensions before ordering.
• Actual vibration and noise reduction depend on pump operating conditions, mounting configuration, and equipment structure.
• Avoid excessive compression, stretching, or deformation of the silicone brackets during installation.
• Keep the brackets away from sharp edges and excessive mechanical stress that may damage the silicone material.
• Check the mounting connections periodically to ensure the pump remains securely installed.

Package & Shipping

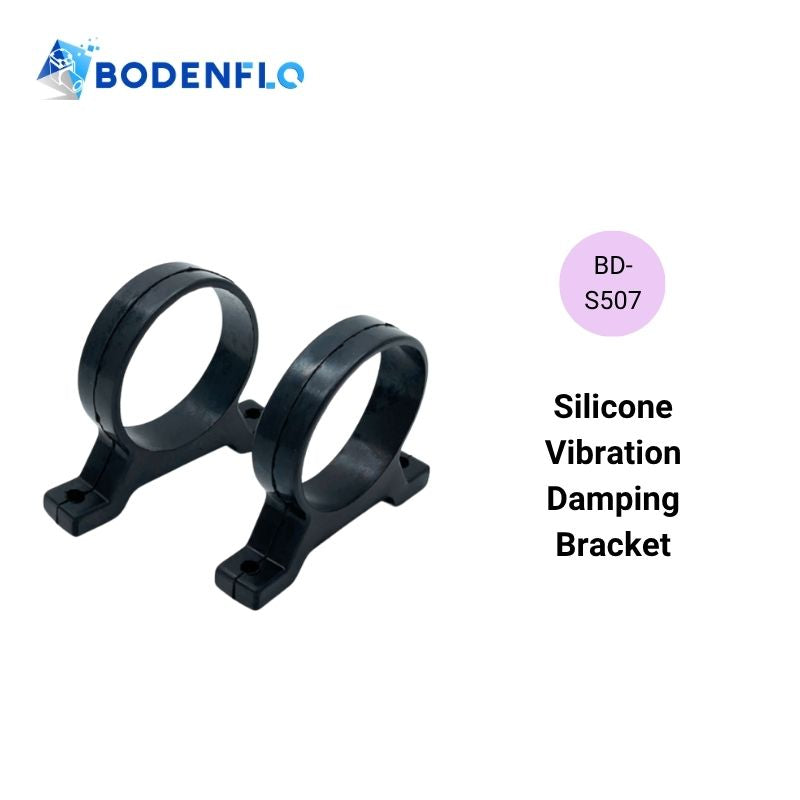

• Package Includes: 1 Pair (2 × BD-S507 Silicone Vibration Damper Mounts)
• Minimum Order Quantity: 1 Pair (2 pcs)
• Quantity Options: Single-pair and bulk orders available
• Lead Time: Typically 3–5 working days for in-stock items
• Express Shipping: DHL or FedEx express shipping available

Manufacturer Information

Brand: BODENFLO

Manufacturer: Shenzhen Boden Technology Development Co., Ltd.

Country of Origin: China

Engineered for Your Application. Built by BODENFLO.

Founded in Shenzhen in 2013, BODENFLO specializes in the development and manufacturing of miniature air pumps, vacuum pumps, compressors, rotary vane pumps, and liquid pumps, along with compatible accessories for OEM and industrial equipment.

In addition to our micro pump products, we offer a range of micro pump accessories to support system integration, installation, and reliable operation. Our engineering team assists customers with accessory selection, pump compatibility, connection requirements, and system integration for different applications.

Our manufacturing operations follow an ISO 9001:2015-certified quality management system.

For product compatibility inquiries or technical assistance, visit BODENFLO.
