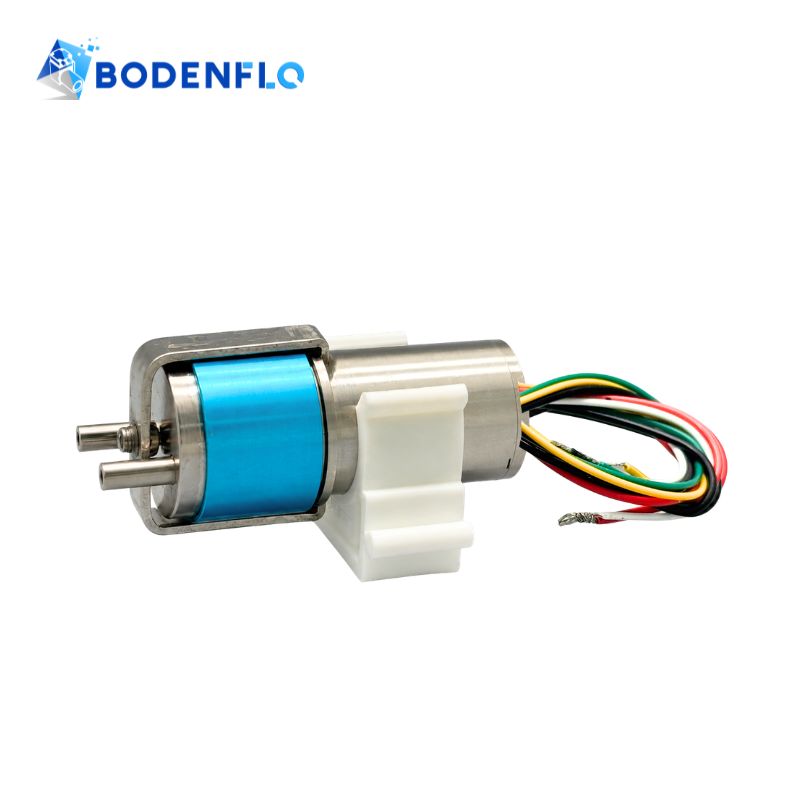

6V Micro Rotary Vane Pump 5.5 L/min ±12 kPa Brushless Vacuum Pump BD-05T01HR5LB BODENFLO

Designed for gas sampling, medical, and analytical equipment, the BD-05T01HR5LB micro rotary vane pump combines a 6V brushless motor with up to 5.5 L/min airflow and ±12 kPa pressure capability.

Its oil-free rotary vane mechanism provides smooth airflow with low pulsation and vibration, while PWM speed control and FG feedback support adjustable pump operation and system monitoring in compact OEM equipment.

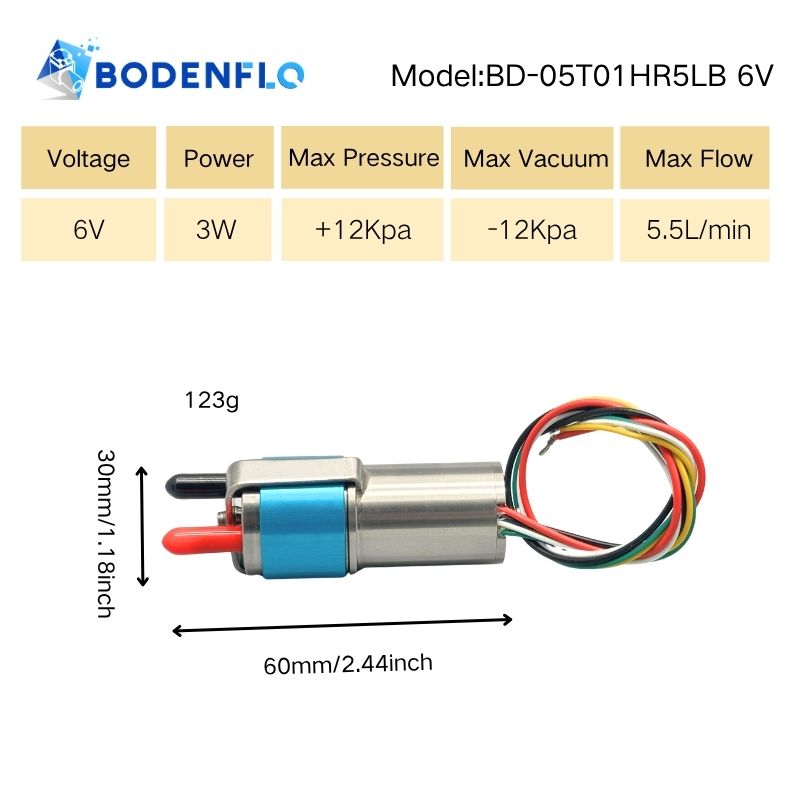

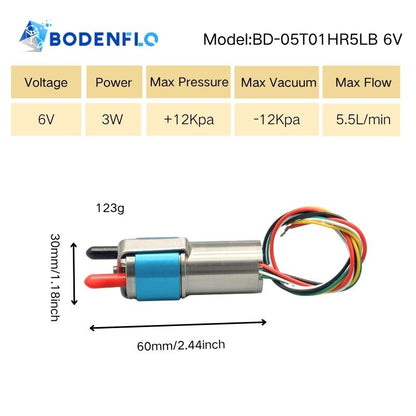

Micro Rotary Vane Pump BD-05T01HR5LB Specifications:

• Name: Micro Vane Pump
• Model: BD-05T01HR5LB
• Rated Voltage: 6V DC
• Max Power: 3 W
• Max Flow: 5.5 L/min (5.5 LPM / 330 L/H)
• Max Vacuum: –12 kPa (–0.012 MPa / –0.12 bar / –1.74 psi)
• Max Positive Pressure: +12 kPa (0.012 MPa / 0.12 bar / 1.74 psi)

Important: Maximum flow, maximum vacuum, and maximum positive pressure represent different operating points. Actual airflow depends on system pressure, tubing, filters, and other flow restrictions.

6V Vacuum Pump General Specifications:

• Motor Type: Brushless DC Motor
• Speed Control: PWM
• Speed Feedback: FG
• Protection Class: IP20
• Pump Head Material: 304 Stainless Steel
• Case Material: 304 Stainless Steel
• Vane Material: Graphite
• Life Time: 6000–8000 Hours

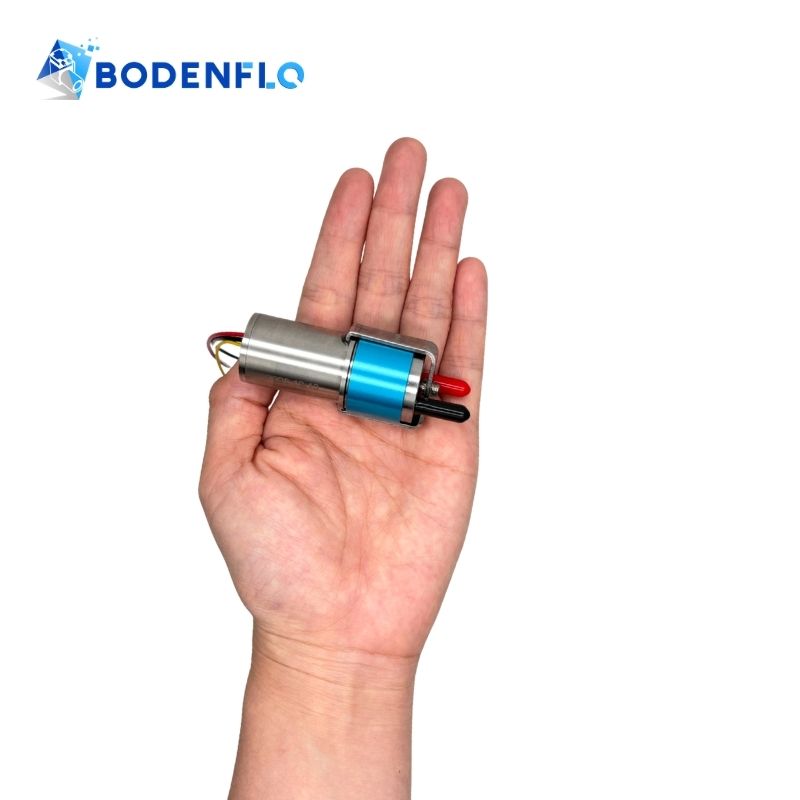

• Dimension: 60 × 30 mm (2.36 × 1.18 inch)
• Weight: 123 g
• Storage Temperature: –40℃ to 60℃
• Operating Environment: 0℃ to 45℃

Product Showcase Video

Video link: BD-05T01HR5LB 6V Micro Rotary Vane Vacuum Pump YouTube Video

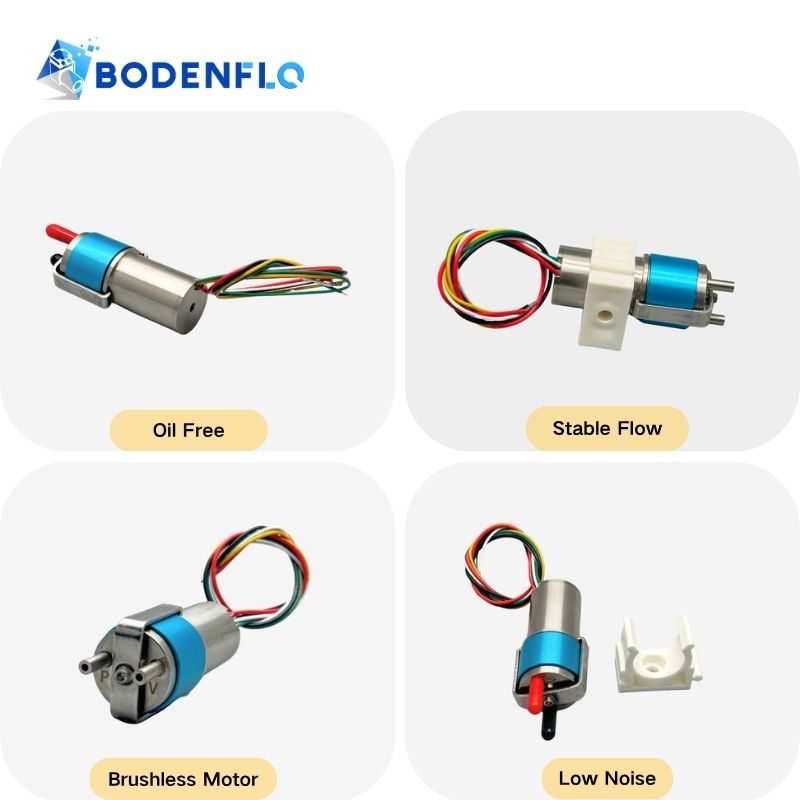

Key Features

• Smooth, Low-Pulsation Flow: Rotary vane mechanism provides smoother airflow than typical reciprocating pump structures, supporting stable gas sampling and analytical systems.
• Vacuum & Positive Pressure: Provides up to –12 kPa vacuum and +12 kPa pressure for suction, gas transfer, and low-pressure delivery.
• 5.5 L/min Airflow: Compact pump delivers up to 5.5 L/min for sampling, circulation, and gas-transfer applications.
• Brushless DC Motor: Reduces motor wear and supports a service life of 6,000–8,000 hours.

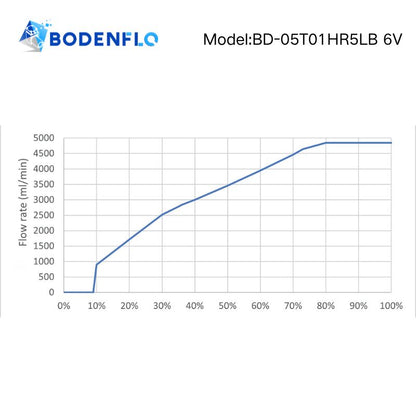

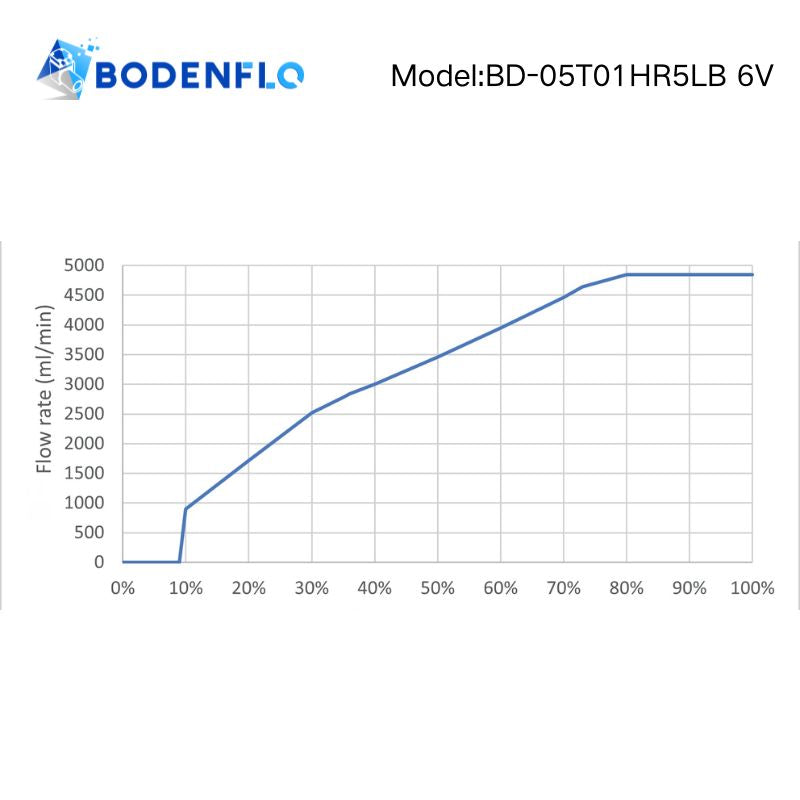

• PWM & FG Control: PWM input enables speed adjustment, while FG output provides motor speed feedback for system monitoring.
• Low Vibration: Balanced rotary operation helps minimize vibration when installed near sensors and sensitive components.
• Oil-Free Gas Path: No lubricating oil is required in the pumping mechanism, helping maintain a clean gas path.
• Stainless Steel Construction: 304 stainless steel pump head and case provide a robust structure for compact OEM equipment.


Applications

• Gas Sampling & Analysis: Provides smooth sample airflow for gas analyzers, sampling modules, and sensor systems.
• Particle Counters: Supports stable air intake through particle measurement and contamination-monitoring instruments.
• Medical & Diagnostic Equipment: Provides compact suction, airflow, or gas circulation for compatible medical and diagnostic systems.
• Environmental Monitoring: Suitable for air quality monitors, gas detection equipment, and portable sampling instruments.
• Laboratory Instruments: Provides low-vibration gas transfer and circulation for compact analytical and laboratory equipment.

Why Choose a Rotary Vane Pump?

Compared with reciprocating diaphragm pumps, a rotary vane design can provide smoother airflow and lower pulsation, making it well suited to sampling, particle measurement, and analytical equipment where airflow stability and vibration are important.

The BD-05T01HR5LB is best suited to applications requiring moderate airflow with relatively low vacuum or positive pressure. For applications requiring deeper vacuum or higher pressure, a diaphragm pump may be more appropriate.

Package & Shipping

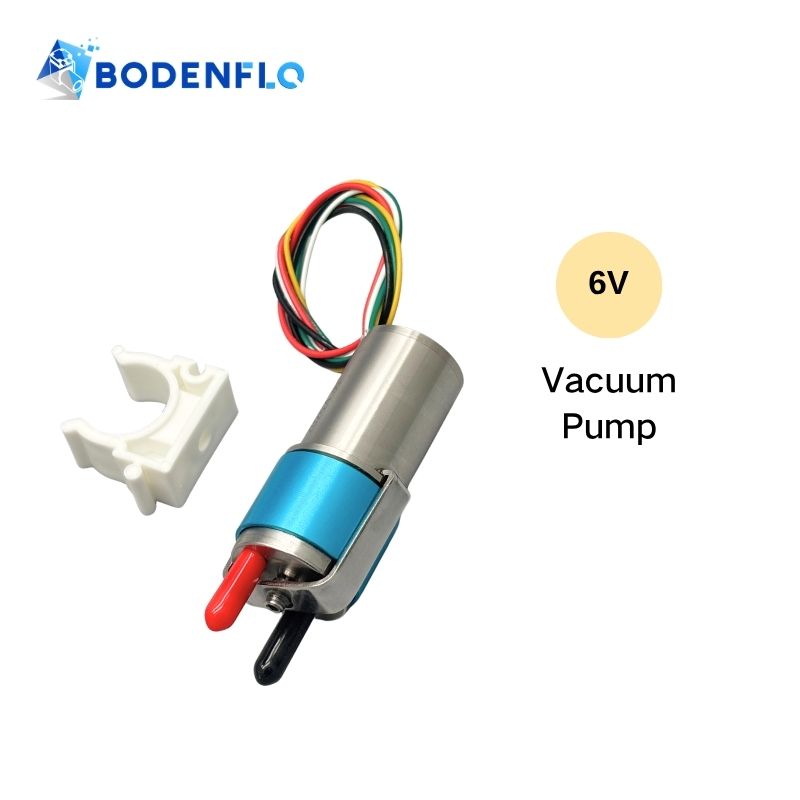

• Package Includes: 1 × Micro Rotary Vane Pump + 1 × White Plastic Mounting Bracket
• Lead Time: Typically 3–5 working days for standard orders.
• Shipping: DHL or FedEx express shipping available.

Manufacturer Information:

Brand: BODENFLO
Manufacturer: Shenzhen Boden Technology Development Co., Ltd.
Country of Origin: China

Engineered for Your Application. Built by BODENFLO.

Founded in Shenzhen in 2013, BODENFLO specializes in the development and manufacturing of miniature air pumps, vacuum pumps, compressors, rotary vane pumps, and liquid pumps for OEM and industrial equipment.

Beyond standard pump specifications, our engineering team supports customers with pump selection, performance customization, prototype development, and volume production based on actual flow, pressure, vacuum, duty cycle, electrical, and installation requirements.

Our manufacturing operations follow an ISO 9001:2015-certified quality management system, with CE and RoHS documentation available for applicable products.

For technical consultation or custom pump development, visit BODENFLO
