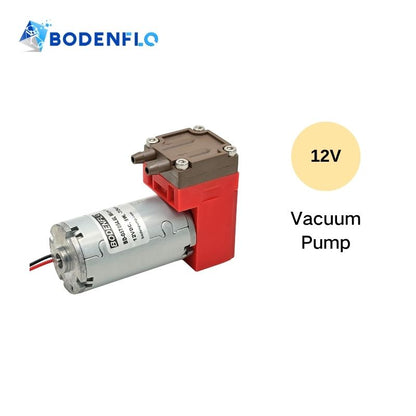

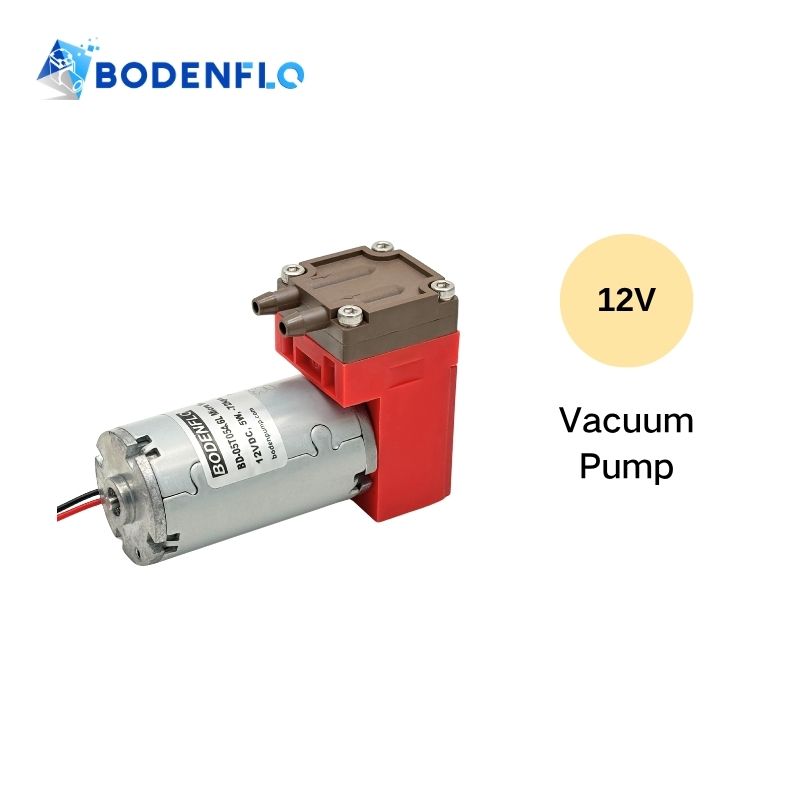

Miniature Diaphragm Pumps 12V Vacuum Pump -75kpa BD-05T054.6L BODENFLO

Optimize your system with the BD-05T054.6L Miniature Diaphragm Pump, a compact 12V vacuum pump delivering –72 kPa vacuum and 4.6 L/min flow. Designed for precision instruments, environmental monitoring, and compact pneumatic systems, it combines stable airflow, efficient power use, and a durable brushed DC motor with an optimized diaphragm for reliable long-term performance.

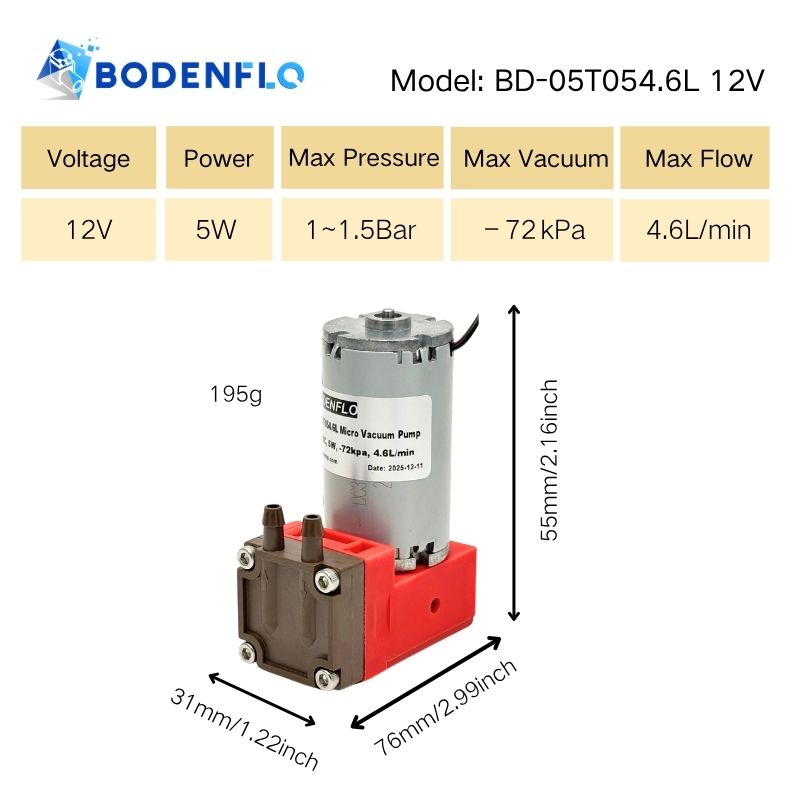

BD-05T054.6L Technical Specifications

• Name: mini diaphragm vacuum pump
• Model: BD-05T054.6L
• Rated Voltage: 12V DC
• Max Power: 5 W
• Max Pressure: 1.0-1.5 bar (100-150 kPa / 0.1-0.15 MPa / 14.5-21.8 psi)
• Max Vacuum: –72 kPa (-540 mmHg/–0.072 MPa)
• Max Flow: 4.6 L/min (4.6 LPM / 276 L/H)

General Specifications

• Medium: Air/Gas
• Motor Type: Brushed DC Motor
• Waterproof Lever: IP40
• Pump Head Material: PPS
• Valve Material: EPDM
• Diaphragm Material: EPDM
• Life Time: 2500 hours
• Noise: 60dB
• Dimensions: 76x31x55 mm（2.99x1.22x2.17 inch）
• Weight: 195g (approx.)
• Storage Temperature: –40 ℃ ~ 60 ℃
• Storage Temperature: –20 ℃ ~ 45 ℃
• Medium Temperature: –10 ℃ ~ 45 ℃

Product Showcase Video

Video link: BD-05T054.6L  Diaphragm Air Pump Youtube video

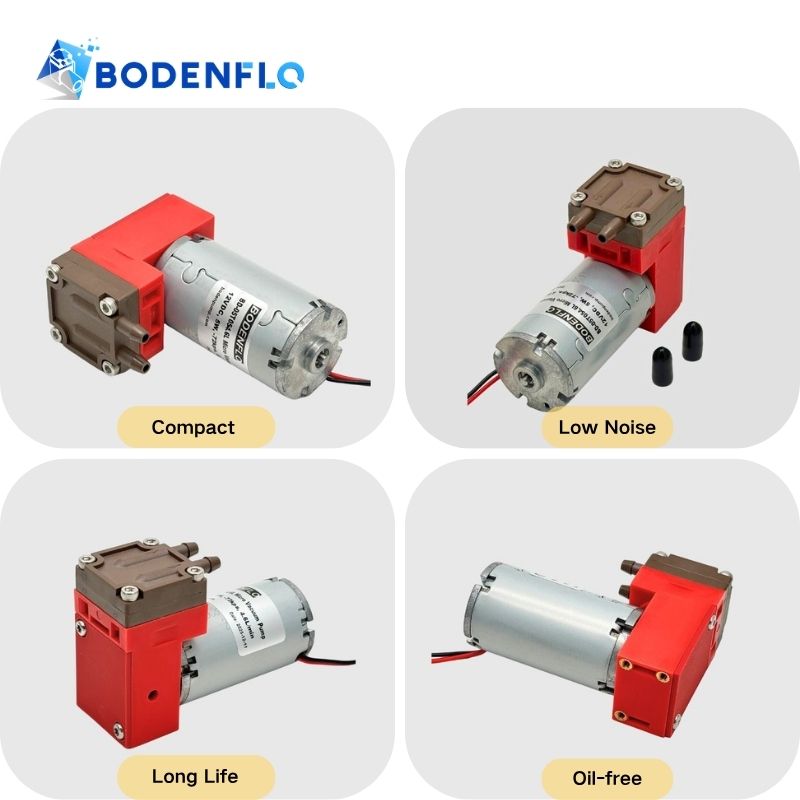

Key Features of 12V Vacuum Pump

• High Vacuum Performance:  Ensures stable suction and reliable air extraction for precision applications.

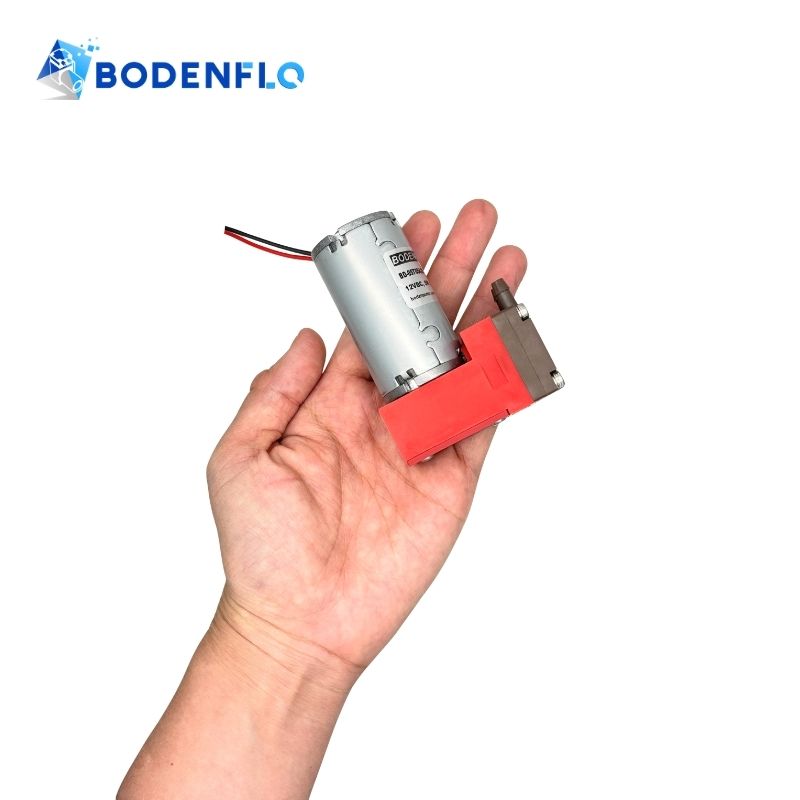

• Compact Design: Small footprint allows easy integration into space-constrained equipment.
• Stable Flow: Delivers consistent airflow for reliable operation in analytical and pneumatic systems.
• Energy Efficient : Low power consumption supports efficient, long-term use.
• Durable & Reliable: Engineered for long service life in demanding conditions.

Applications

•  Environmental Monitoring Equipment: Used in gas sampling systems and portable monitoring instruments requiring stable airflow.
• Analytical Instruments: Suitable for laboratory devices and gas analysis systems where precise vacuum generation is required.
• Automation and Pneumatic Systems: Provides compact vacuum or airflow support for automated equipment and control systems.

Manufacturer Information:

Brand: BODENFLO

Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, ROHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
