Polyurethane Pneumatic Tubing 1m 2.5–8mm ID, 4–12mm OD for Micro Air Pumps & Compressors | BD-PUT BODENFLO

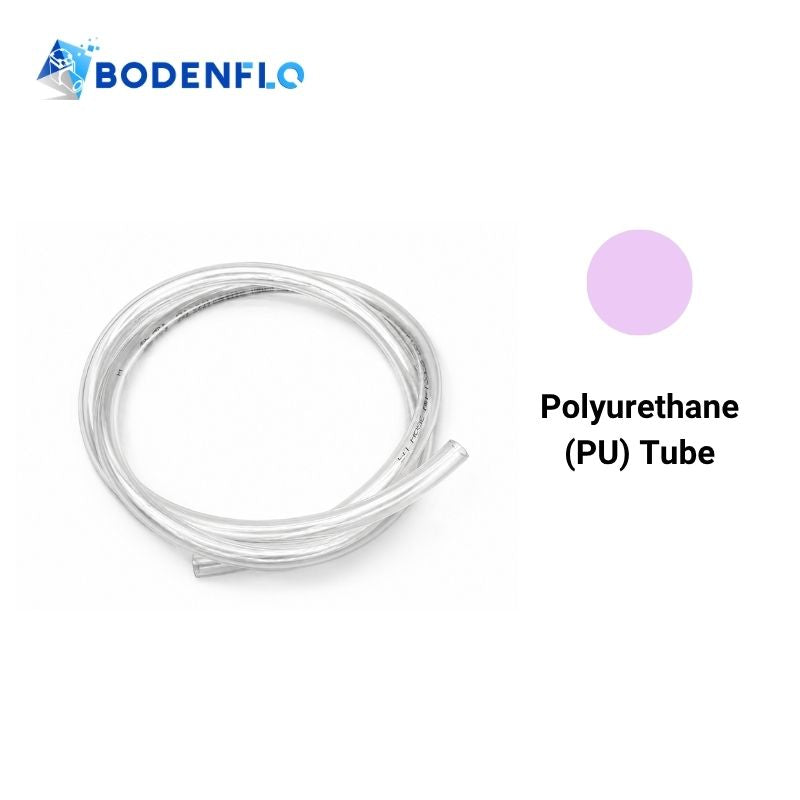

The BD-PUT Polyurethane Pneumatic Tubing Series is designed for compressed air connections in miniature pump and pneumatic systems. Made from flexible polyurethane (PU) with 95 Shore A hardness, this transparent tubing offers good abrasion resistance and convenient installation in compact OEM equipment.

Available in four inner diameter and outer diameter combinations, from 2.5 × 4 mm to 8 × 12 mm (ID × OD), the BD-PUT series supports pneumatic connections for compatible micro air pumps, compressors, and industrial equipment. Each model is supplied in a 1-meter length, with a specified working pressure range of 0–10 bar at 20°C.

Polyurethane Pneumatic Tubing BD-PUT Model Specifications

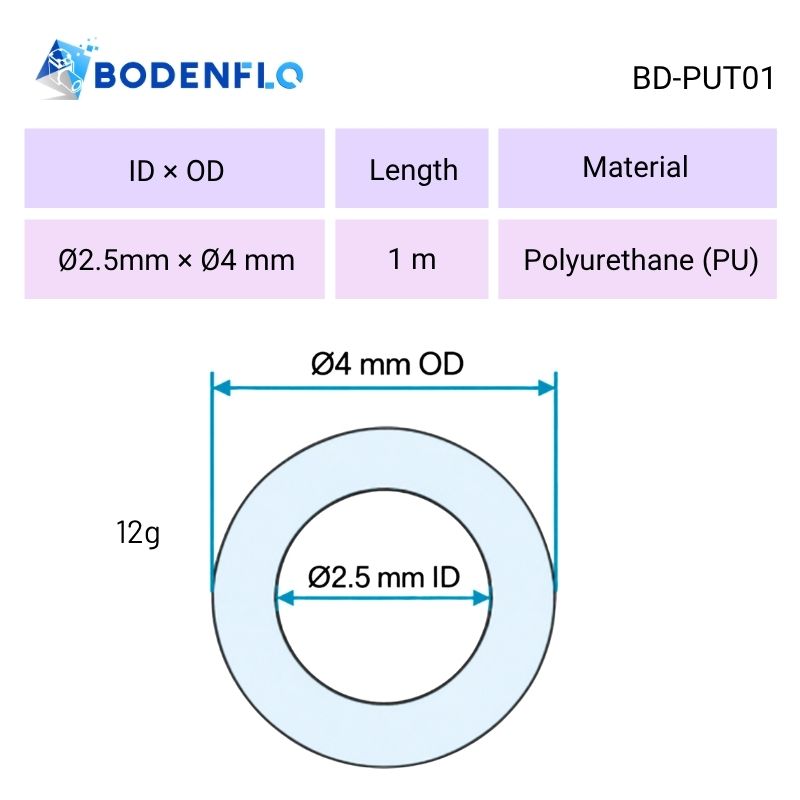

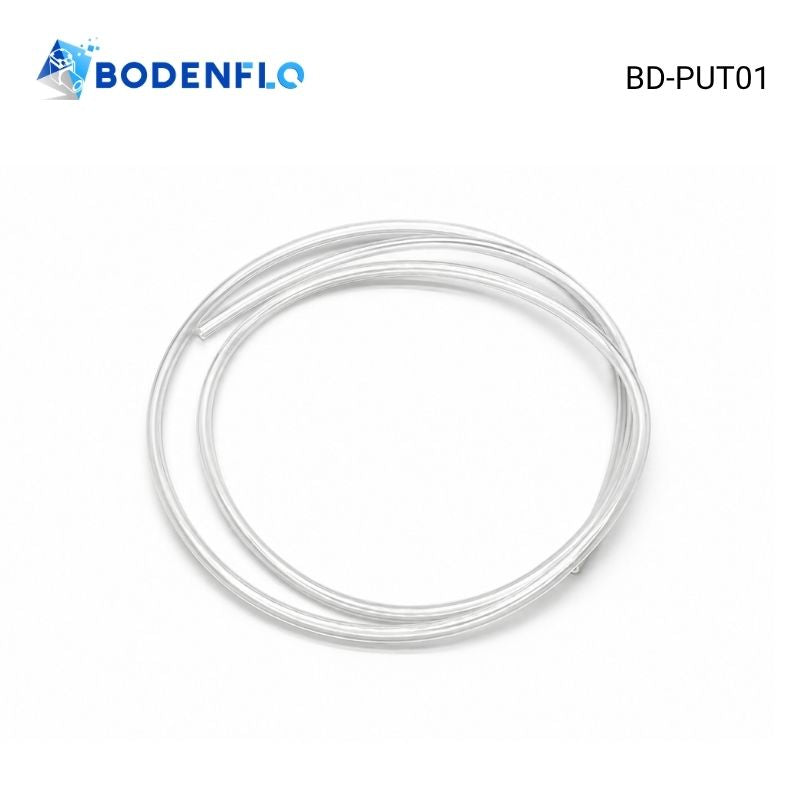

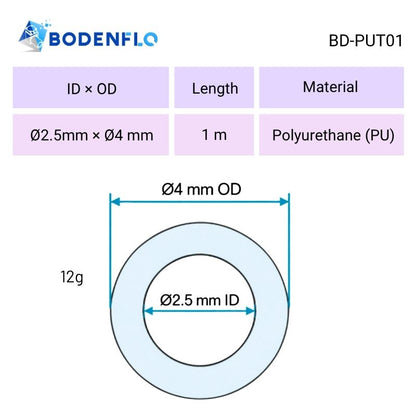

BD-PUT01 – PU Pneumatic Tubing 2.5mm ID × 4mm OD

• Model: BD-PUT01
• Inner Diameter (ID): Ø2.5 mm (0.10 in)
• Outer Diameter (OD): Ø4.0 mm (0.16 in)
• Wall Thickness: 0.75 mm
• Weight: Approx. 12 g

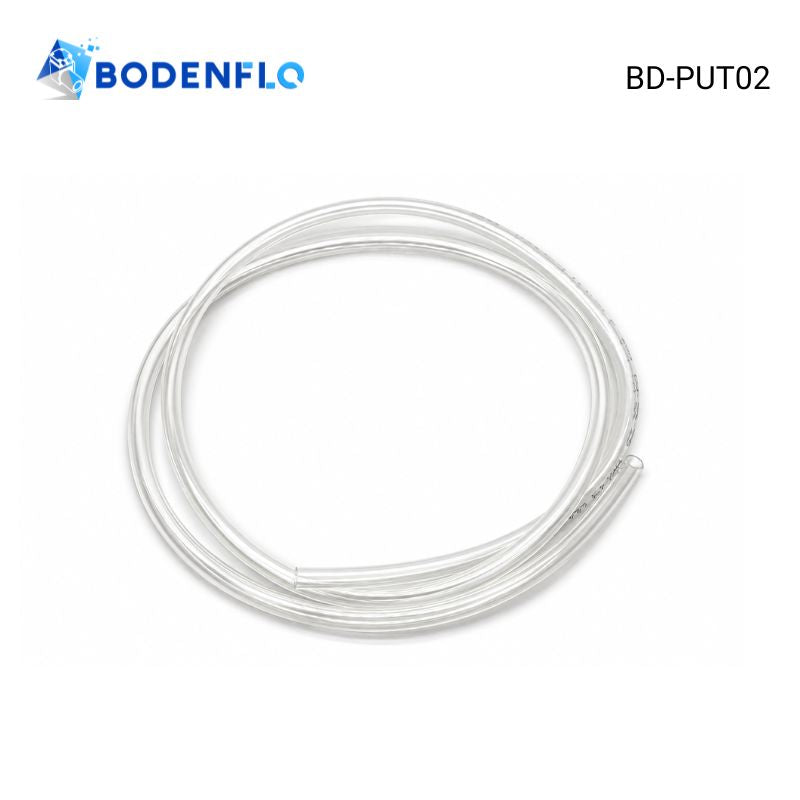

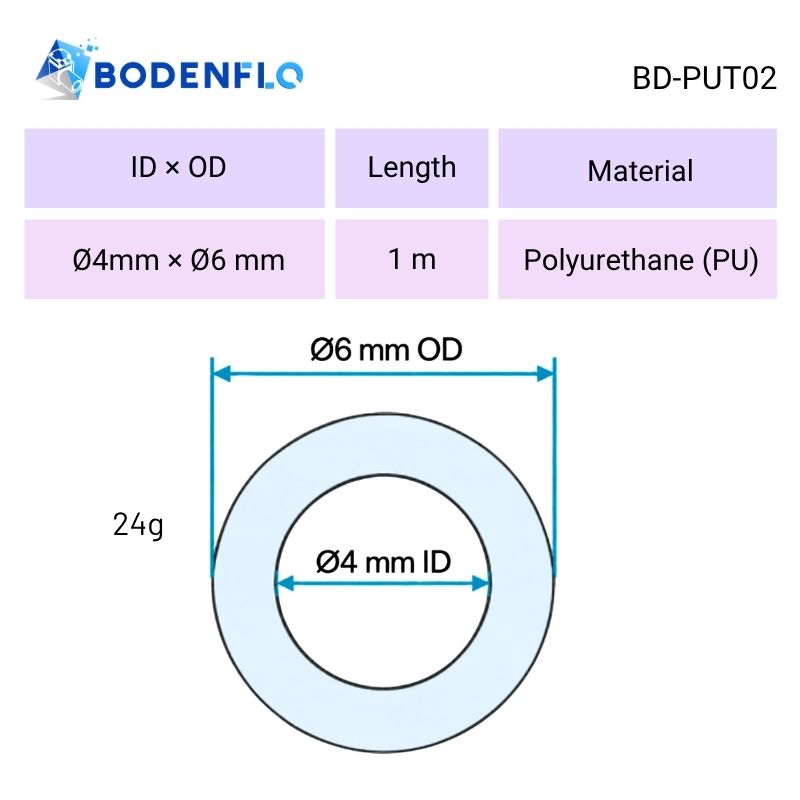

BD-PUT02 – PU Pneumatic Tubing 4mm ID × 6mm OD

• Model: BD-PUT02
• Inner Diameter (ID): Ø4.0 mm (0.16 in)
• Outer Diameter (OD): Ø6.0 mm (0.24 in)
• Wall Thickness: 1.0 mm
• Weight: Approx. 24 g

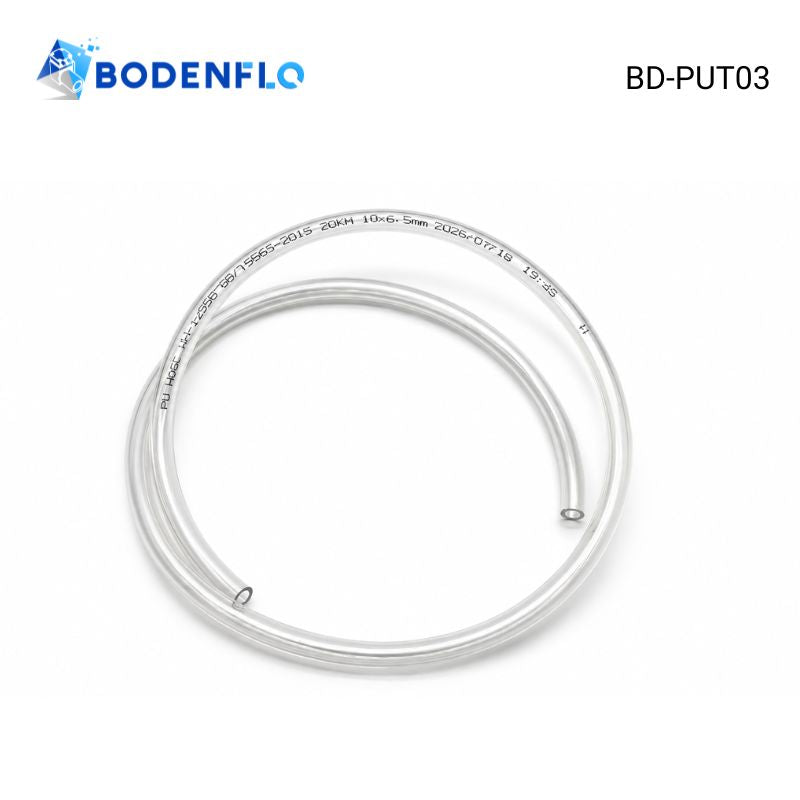

BD-PUT03 – PU Pneumatic Tubing 6.5mm ID × 10mm OD

• Model: BD-PUT03
• Inner Diameter (ID): Ø6.5 mm (0.26 in)
• Outer Diameter (OD): Ø10.0 mm (0.39 in)
• Wall Thickness: 1.75 mm
• Weight: Approx. 55 g

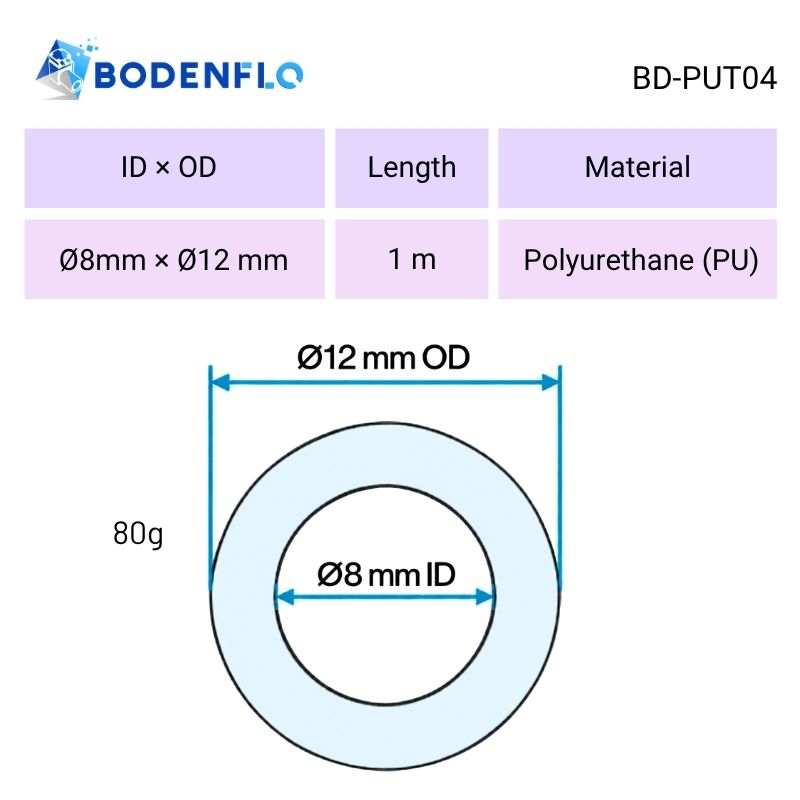

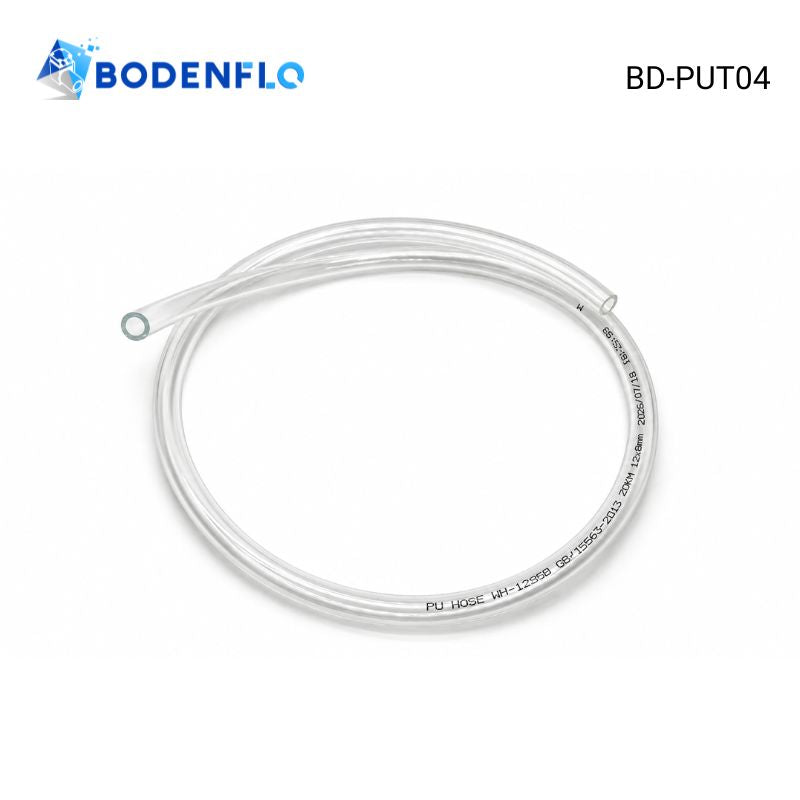

BD-PUT04 – PU Pneumatic Tubing 8mm ID × 12mm OD

• Model: BD-PUT04
• Inner Diameter (ID): Ø8.0 mm (0.31 in)
• Outer Diameter (OD): Ø12.0 mm (0.47 in)
• Wall Thickness: 2.0 mm
• Weight: Approx. 80 g

PU Air Tube General Specifications

• Name: Pneumatic Air Line Tubing
• Series: BD-PUT
• Available Models: BD-PUT01, BD-PUT02, BD-PUT03, BD-PUT04
• Material: Polyurethane (PU)
• Working Medium: Air
• Length: 1 m (3.28 ft) per piece
• Color: Transparent
• Hardness: 95 Shore A
• Temperature Range: –20°C to 70°C (–4°F to 158°F)
• Working Pressure Range at 20°C: 0–10 kgf/cm² (0–1 MPa / 0–10 bar)
• Available Sizes (ID × OD): 2.5 × 4, 4 × 6, 6.5 × 10, 8 × 12 mm

Polyurethane Pneumatic Tubing Key Features

• Flexible PU Construction: Supports convenient tubing routing and installation in compact pneumatic equipment.
• Abrasion Resistance Material: Polyurethane material offers good resistance to surface wear during normal handling and installation.
• Four Size Options: Provides different inner and outer diameter combinations for various pneumatic connection requirements.
• Compressed Air Compatibility: Suitable for compressed air connections in compatible miniature pumps, compressors, and pneumatic systems.
• Specified Working Pressure: Supports a working pressure range of 0–10 bar at 20°C, subject to proper connections and operating conditions.
• Transparent Design: Allows visual inspection of the tubing and air line.
• 1-Meter Length: Each tubing variant is supplied in a 1 m length for equipment assembly and pneumatic connections.

Size Selection & Installation Guidelines

• Inner Diameter Selection: Select the appropriate tubing inner diameter based on the pump port and connection requirements.
• Outer Diameter Selection: Confirm the tubing outer diameter matches the pneumatic fittings or connectors used in the system.
• Model Selection: Choose one of the four available ID × OD combinations. Inner and outer diameters are fixed pairs and cannot be selected independently.
• Tubing Installation: Route the PU tube without excessive bending, twisting, or stretching to avoid restricting airflow.
• Connection Security: Ensure all tubing connections are properly secured and suitable for the intended working pressure.

Important Notes

• Confirm the selected tubing dimensions are compatible with the pump ports, pneumatic fittings, and connection interfaces before ordering.
• The specified 0–10 bar working pressure range applies at 20°C. Allowable pressure may vary with temperature and system conditions.
• The specified temperature range does not guarantee the same pressure capability throughout the entire operating temperature range.
• This tubing is specified for air applications. Confirm material compatibility and operating requirements before using it with other gases or liquids.
• Avoid sharp bends, excessive stretching, abrasion, or mechanical damage that could restrict airflow or weaken the tubing.
• Check tubing connections regularly to ensure secure installation and prevent air leakage.

Package & Shipping

• Package Includes: 1 × BD-PUT Polyurethane Pneumatic Tubing, 1 m length (selected model)
• Minimum Order Quantity: 1 piece (1 m)
• Quantity Options: Single-piece and bulk orders available
• Lead Time: Typically 3–5 working days for in-stock items
• Express Shipping: DHL or FedEx express shipping available


Manufacturer Information

Brand: BODENFLO

Manufacturer: Shenzhen Boden Technology Development Co., Ltd.

Country of Origin: China

Engineered for Your Application. Built by BODENFLO.

Founded in Shenzhen in 2013, BODENFLO specializes in the development and manufacturing of miniature air pumps, vacuum pumps, compressors, rotary vane pumps, and liquid pumps, along with compatible accessories for OEM and industrial equipment.

In addition to our micro pump products, we offer a range of micro pump accessories to support system integration, installation, and reliable operation. Our engineering team assists customers with accessory selection, pump compatibility, connection requirements, and system integration for different applications.

Our manufacturing operations follow an ISO 9001:2015-certified quality management system.

For product compatibility inquiries or technical assistance, visit BODENFLO.
