5V Micro Vacuum Pump Compact Design for Sampling and Medical BD-05T02.53000 BODENFLO

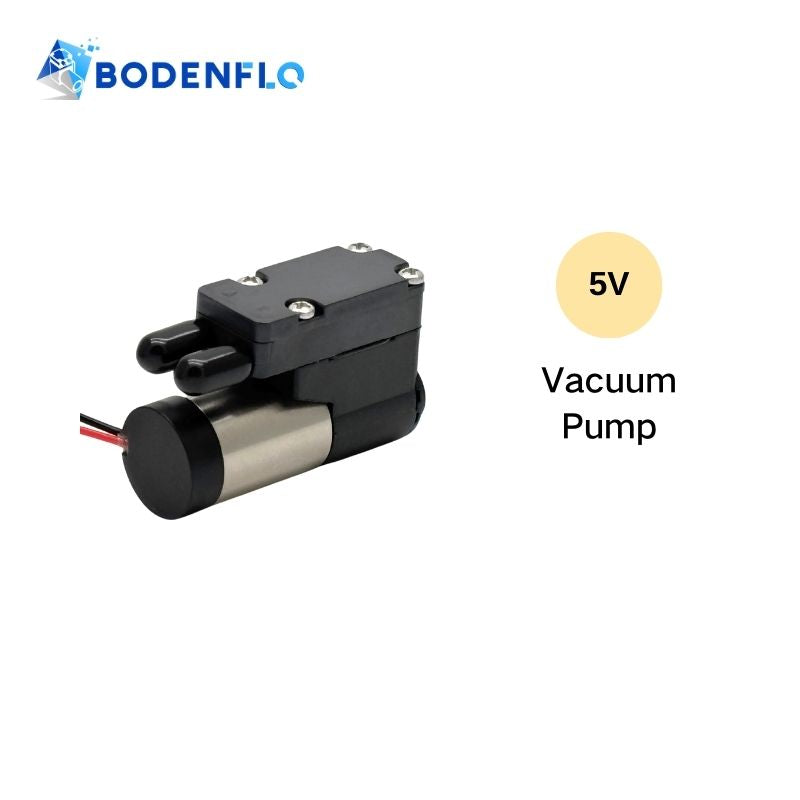

The BD-05T02.53000 5V Micro Diaphragm Pump is a compact micro vacuum pump designed for stable gas handling in portable and embedded systems. Equipped with a brushed coreless motor and EPDM diaphragm, it delivers reliable vacuum and airflow performance with controlled noise levels, suitable for continuous OEM operation.

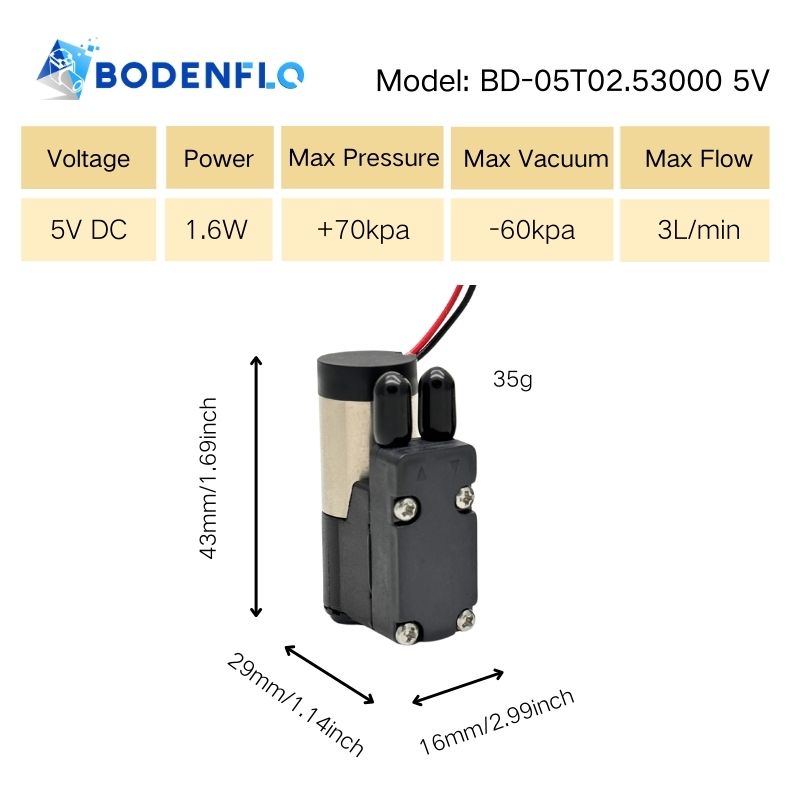

BD-05T02.53000 5V Technical Specifications:

• Name: 5V Diapharagm Vacuum Pump
• Model: BD-05T02.53000 5V
• Rated Voltage: 5V DC
• Power : 1.6W
• Max Pressure: >70 kPa ( 0.7 bar/ 0.07 MPa / 10.1526 psi)
• Max Vacuum: >-60 kPa ( -450mmHg /0.060 MPa )
• Max Flow: > 3L/min ( 3LPM / 180L/H)
• Noise:★

General Specifications

• Motor Type: brushed coreless Motor
• Diaphragm Material: EPDM
• Life time: 6000-8000 Hours
• Noise: ≤60dB(with silencer can be reduce 1-3dB)
• Dimension: 43*29*16mm
• Weight: 35G(approx.)
• Storage temperature: -40℃~60℃
• Medium environment: -10℃~45℃

Key Features of Diaphragm Vacuum Pump:

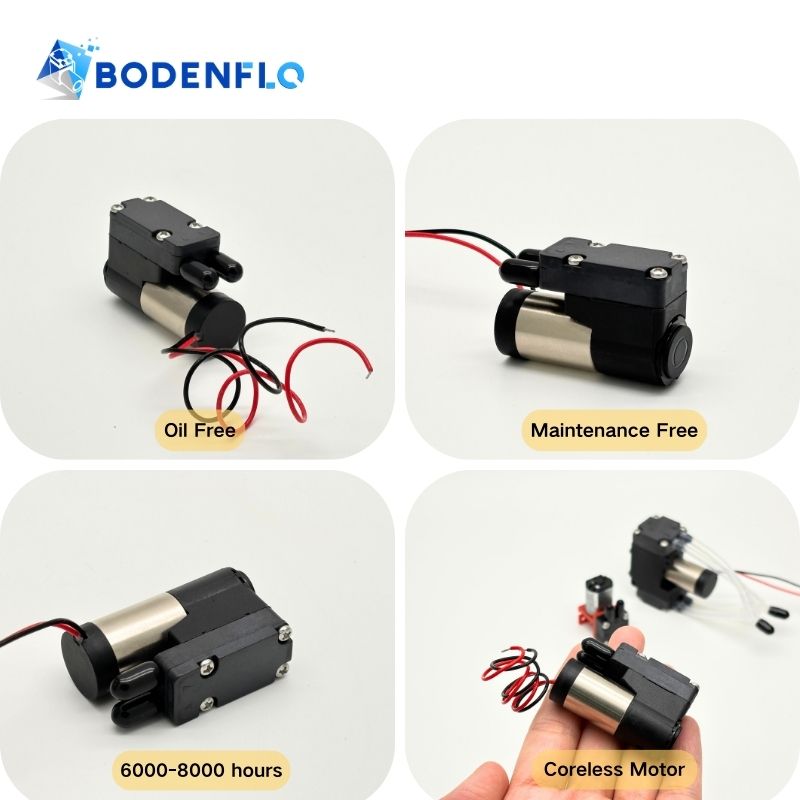

• Oil-Free Diaphragm Structure: Ensures clean gas handling without risk of oil contamination.

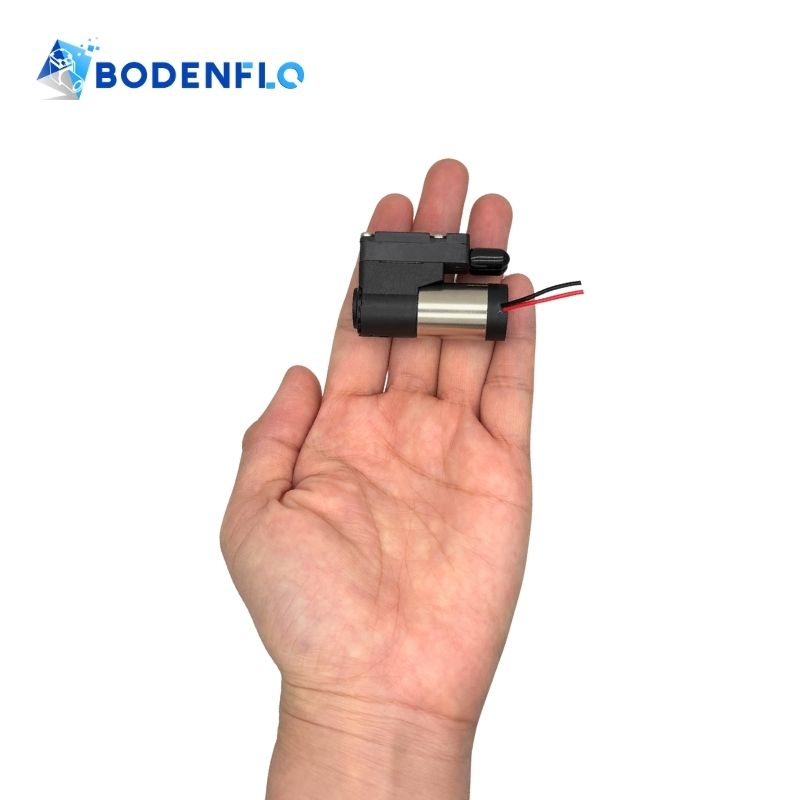

• Ultra-Compact Design: Small footprint for easy integration into portable and space-limited devices.
• Long Service Life: Designed for continuous operation with reduced maintenance.
• Stable Vacuum Output: Provides consistent suction for accurate sensing and sampling.
• Low Noise Operation: Suitable for medical, laboratory, and indoor environments.

Common Applications:

• Portable Gas Analyzers: Provides stable suction for environmental and industrial analysis.
• Medical Diagnostic Devices: Generates controlled vacuum for sample transfer and aspiration.
• Industrial Intelligent Equipment: Used for internal gas sampling or pressure control in smart industrial devices.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
