Silicone Pump Mount Bracket 23mm ID for BD-02 Mini Pumps | BD-S104 BODENFLO

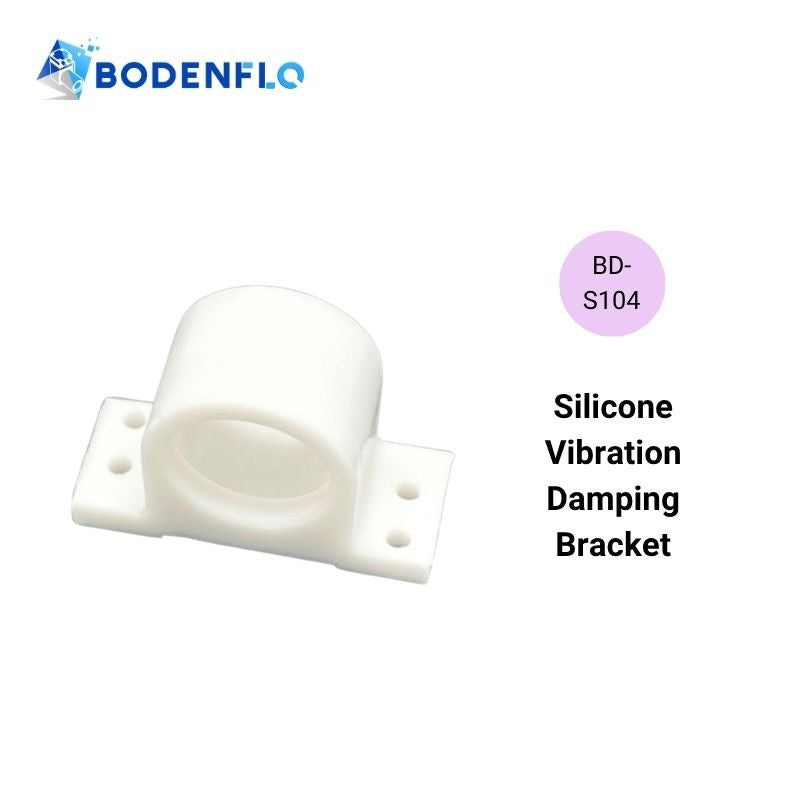

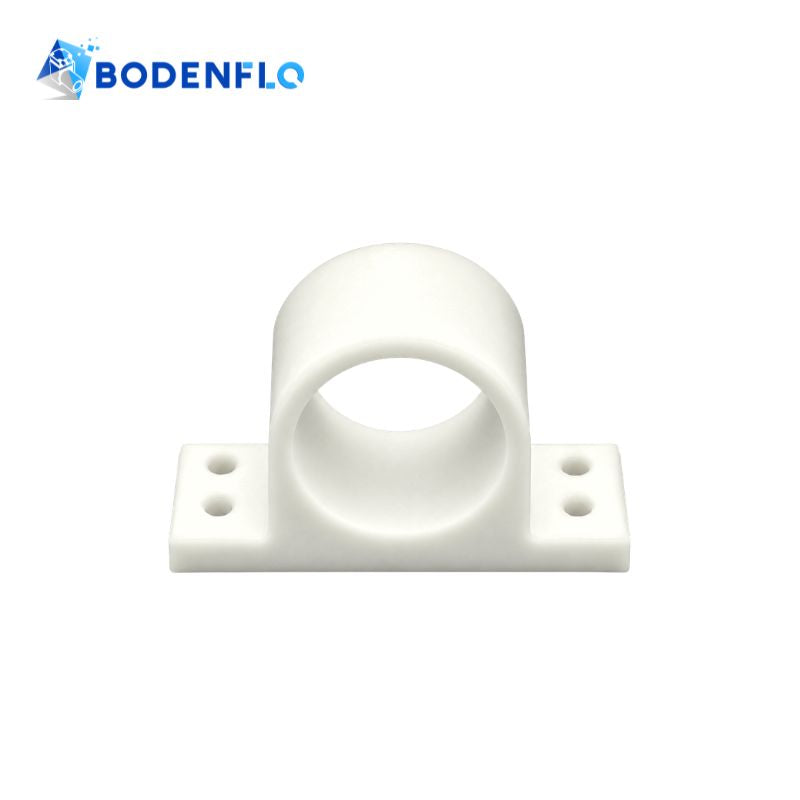

The BD-S104 Silicone Pump Mount is designed to support secure installation and vibration reduction for BODENFLO BD-02 series miniature pumps. Made from flexible silicone with a 23 mm inner diameter, this lightweight mounting bracket helps absorb operating vibration, reduce structure-borne noise, and minimize mechanical impact. Its compact design makes it suitable for integrating mini pumps into OEM equipment and compact pneumatic systems.

Silicone Pump Mount BD-S104 Specifications

• Name: Micro Pump Vibration Isolator
• Model: BD-S104
• Inner Diameter: Ø23 mm (0.91 in)

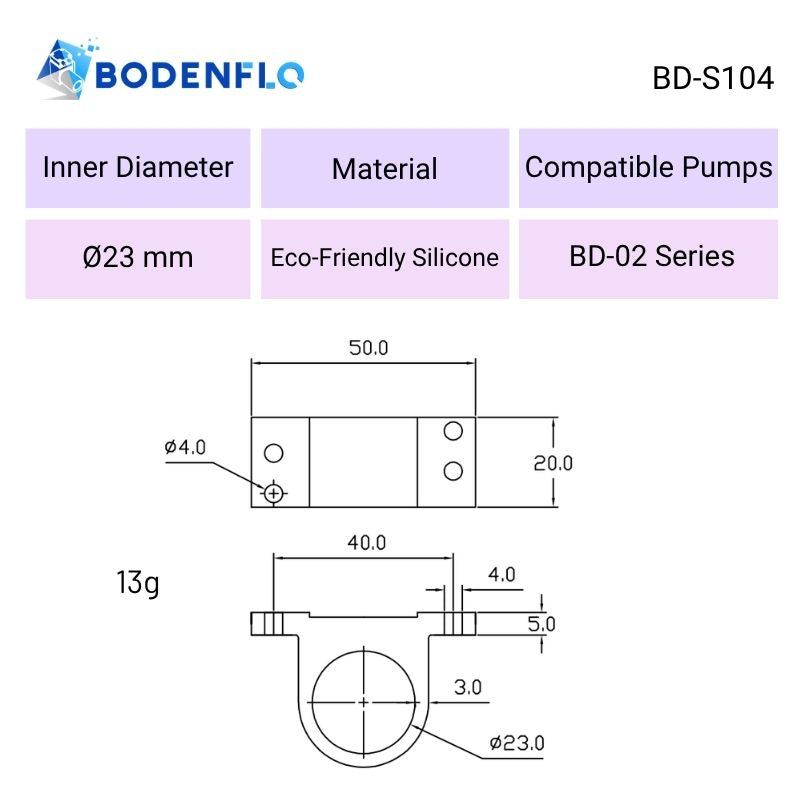

• Overall Dimensions: Approx. 50 × 20 × 33 mm (1.97 × 0.79 × 1.30 in)
• Weight: Approx. 13 g
• Material: Eco-Friendly Silicone
• Compatible Pumps: BODENFLO BD-02 Series

Mini Pump Mounting Bracket Features

• Vibration Isolation: Flexible silicone helps reduce vibration transmission from the pump to the equipment structure.
• Reduced Structure-Borne Noise: Helps limit noise caused by mechanical vibration transferred through rigid mounting surfaces.
• Secure Pump Installation: Designed to support compatible BD-02 miniature pumps with a 23 mm mounting diameter.
• Compact and Lightweight: Approx. 50 × 20 × 33 mm in size and 13 g in weight, suitable for space-constrained equipment.
• Easy System Integration: Supports installation of compatible miniature pumps in compact pneumatic assemblies and OEM equipment.


Installation Guidelines

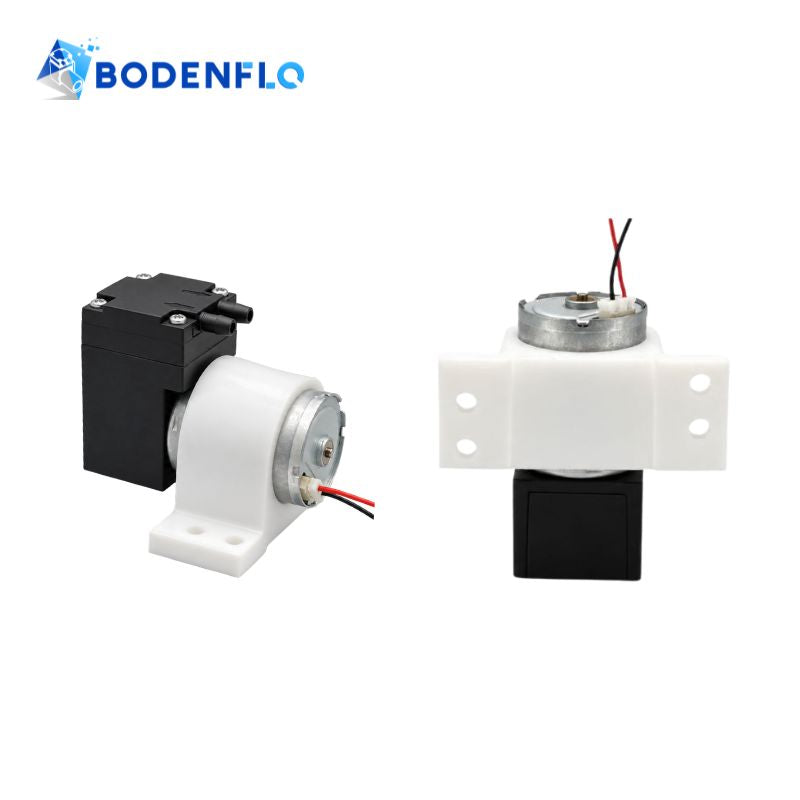

• Motor Housing Compatibility: The BD-S104 silicone bracket features a Ø23 mm inner diameter, designed to fit the Ø24 mm motor housing of BODENFLO BD-02 series pumps.
• Pump Installation: Position the silicone bracket around the motor housing to ensure a snug and secure fit.
• Bracket Mounting: Secure the bracket to the equipment mounting surface using suitable mounting hardware. Verify the available installation space and mounting-hole positions before assembly.
• Vibration Isolation: Avoid excessive compression or deformation of the silicone bracket to maintain effective vibration damping.

Compatibility with Other Miniature Pumps: For other miniature pumps, refer to the Ø24 mm motor housing diameter and Ø23 mm bracket inner diameter when evaluating compatibility. Confirm the mounting dimensions and installation space before use.

Important Notes

• Designed for BODENFLO BD-02 series miniature pumps. Confirm mounting dimensions before use with other pump models.
• Actual vibration and noise reduction depend on pump operating conditions, mounting configuration, and equipment structure.
• Avoid excessive compression, stretching, or deformation of the silicone bracket during installation.
• Keep the bracket away from sharp edges and excessive mechanical stress that may damage the silicone material.
• Check the mounting connections periodically to ensure the pump remains securely installed.

Ordering & Shipping Information

• Package Includes: 1 × BD-S104 Silicone Pump Mount Bracket
• Minimum Order Quantity: 1 piece
• Quantity Options: Single-piece and bulk orders available
• Lead Time: Typically 3–5 working days for in-stock items
• Express Shipping: DHL or FedEx express shipping available

Manufacturer Information

Brand: BODENFLO

Manufacturer: Shenzhen Boden Technology Development Co., Ltd.

Country of Origin: China

Engineered for Your Application. Built by BODENFLO.

Founded in Shenzhen in 2013, BODENFLO specializes in the development and manufacturing of miniature air pumps, vacuum pumps, compressors, rotary vane pumps, and liquid pumps, along with compatible accessories for OEM and industrial equipment.

In addition to our micro pump products, we offer a range of micro pump accessories to support system integration, installation, and reliable operation. Our engineering team assists customers with accessory selection, pump compatibility, connection requirements, and system integration for different applications.

Our manufacturing operations follow an ISO 9001:2015-certified quality management system.

For product compatibility inquiries or technical assistance, visit BODENFLO.
