Silicone Pump Mounting Bracket 29mm ID for BD-04 Brushless Micro Pumps | BD-S404 BODENFLO

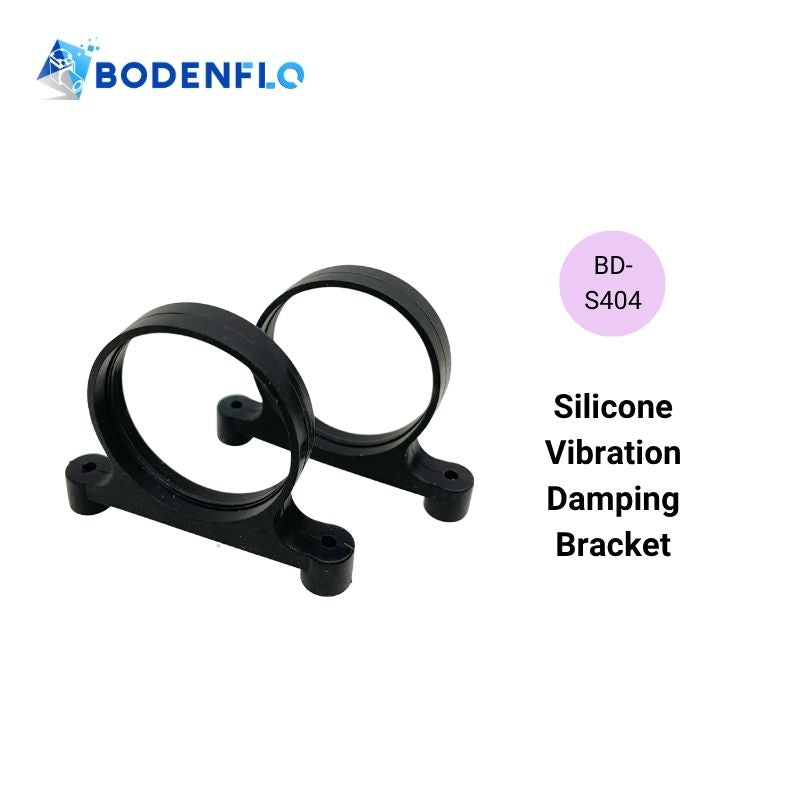

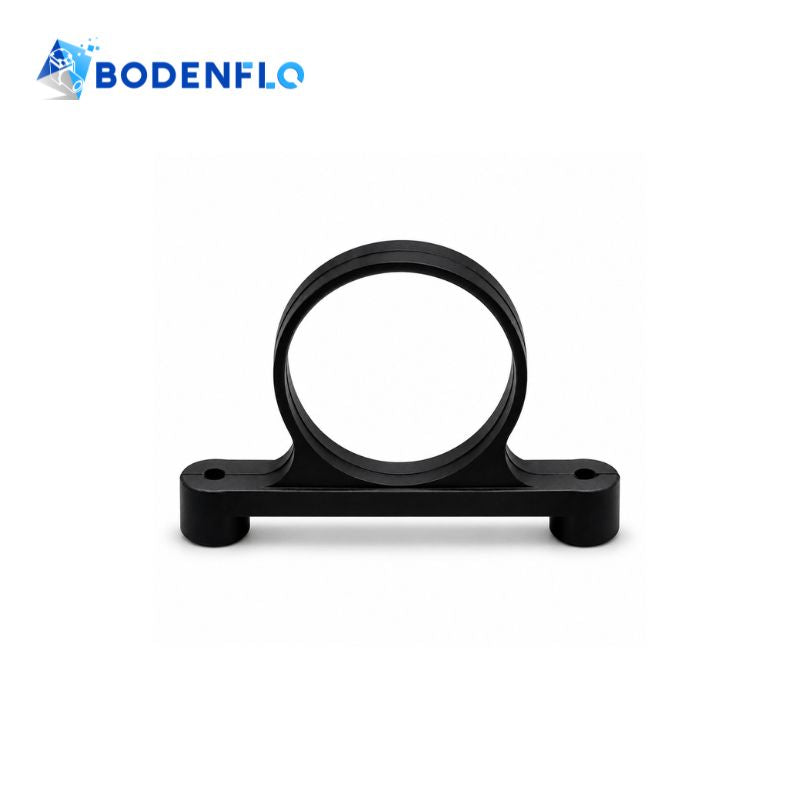

The BD-S404 Silicone Pump Mounting Bracket is designed to support secure installation and vibration reduction for compatible BODENFLO BD-04 brushless micro pumps. Made from flexible silicone with a 29 mm inner diameter, this lightweight brushless pump mount helps absorb operating vibration, reduce structure-borne noise, and minimize mechanical impact. Each set includes two silicone brackets designed to work together for stable pump mounting. Its compact design is suitable for BD-04 brushless series models without side mounting holes in OEM equipment and compact pneumatic systems.

Silicone Pump Mounting Bracket BD-S404 Specifications

• Name: Micro Pump Vibration Isolator
• Model: BD-S404
• Inner Diameter: Ø29 mm (1.14 in)
• Overall Dimensions: Approx. 56 × 8 × 38 mm (2.20 × 0.31 × 1.50 in)
• Weight: Approx. 4 g per bracket
• Material: Eco-Friendly Silicone
• Compatible Pumps: BODENFLO BD-04 Brushless Series (Models Without Side Mounting Holes)
• Brackets per Pump: 2 pcs (1 Pair)

Brushless Pump Mount Features

• BD-04 Brushless Pump Compatibility: Designed for compatible BD-04 brushless micro pumps without side mounting holes, providing a flexible motor mounting solution.
• Highly Elastic Silicone Design: The thin, flexible silicone structure allows the Ø29 mm opening to stretch around the Ø35.5 mm motor housing for a secure fit.
• Dual-Bracket Support: Two silicone brackets work together to support the pump and help maintain its position within the equipment.
• Vibration and Noise Reduction: Flexible silicone helps cushion motor vibration and reduce structure-borne noise transmitted to mounting surfaces.
• Compact and Lightweight: Each bracket measures approximately 56 × 8 × 38 mm and weighs only 4 g, making the pair suitable for space-limited OEM equipment.

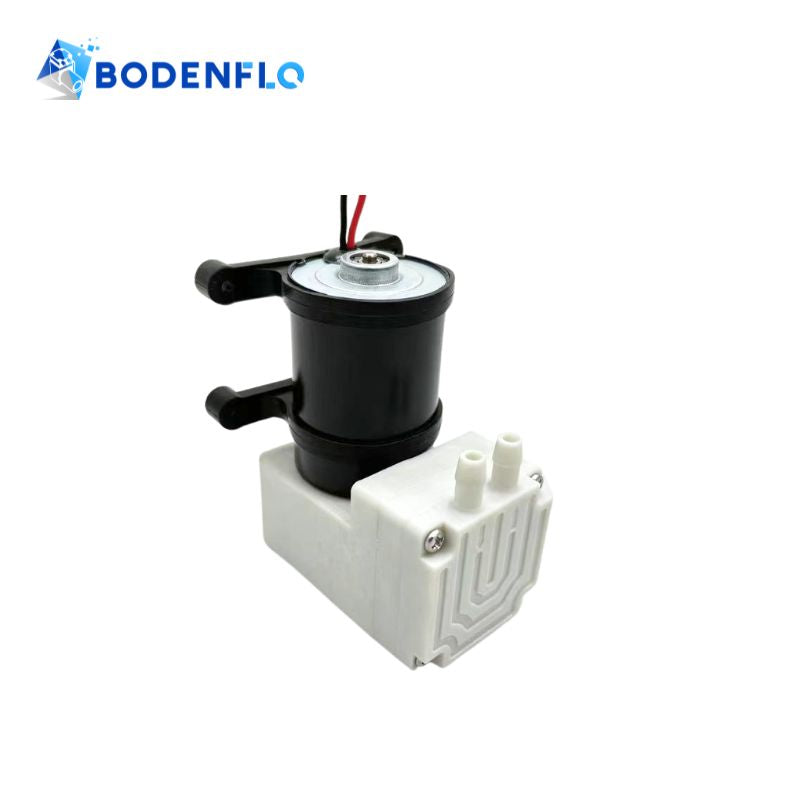

Installation Guidelines

• Motor Housing Compatibility: The BD-S404 silicone bracket features a Ø29 mm inner diameter and is designed to fit the Ø35.5 mm motor housing of compatible BODENFLO BD-04 brushless pumps.
• Pump Installation: Carefully stretch the two silicone brackets around the designated motor mounting sections to provide stable support.
• Bracket Mounting: Secure both brackets to the equipment mounting surface using suitable mounting hardware. Verify the available installation space and mounting-hole positions before assembly.
• Vibration Isolation: Ensure the silicone brackets are properly positioned without twisting, excessive localized stretching, or interference with other pump components.

Compatibility with Other Miniature Pumps: For other miniature pumps, refer to the Ø35.5 mm motor housing diameter and Ø29 mm unstretched bracket inner diameter when evaluating compatibility. Confirm the motor dimensions, mounting configuration, and installation space before use.

Important Notes

• Designed for BODENFLO BD-04 brushless series models without side mounting holes. Not all BD-04 pump configurations are compatible.
• One complete mounting set includes two BD-S404 brackets (1 pair) for the intended pump installation.
• Confirm the pump's mounting diameter and installation dimensions before ordering.
• Actual vibration and noise reduction depend on pump operating conditions, mounting configuration, and equipment structure.
• Avoid excessive compression, stretching, or deformation of the silicone brackets during installation.
• Keep the brackets away from sharp edges and excessive mechanical stress that may damage the silicone material.
• Check the mounting connections periodically to ensure the pump remains securely installed.

Package & Shipping

• Package Includes: 1 Pair (2 × BD-S404 Silicone Pump Mounting Brackets)
• Minimum Order Quantity: 1 Pair (2 pcs)
• Quantity Options: Single-pair and bulk orders available
• Lead Time: Typically 3–5 working days for in-stock items
• Express Shipping: DHL or FedEx express shipping available

Manufacturer Information

Brand: BODENFLO

Manufacturer: Shenzhen Boden Technology Development Co., Ltd.

Country of Origin: China
