Silicone Vibration Damping Bracket 36mm ID for BD-04 Brushed Micro Pumps | BD-S304 BODENFLO

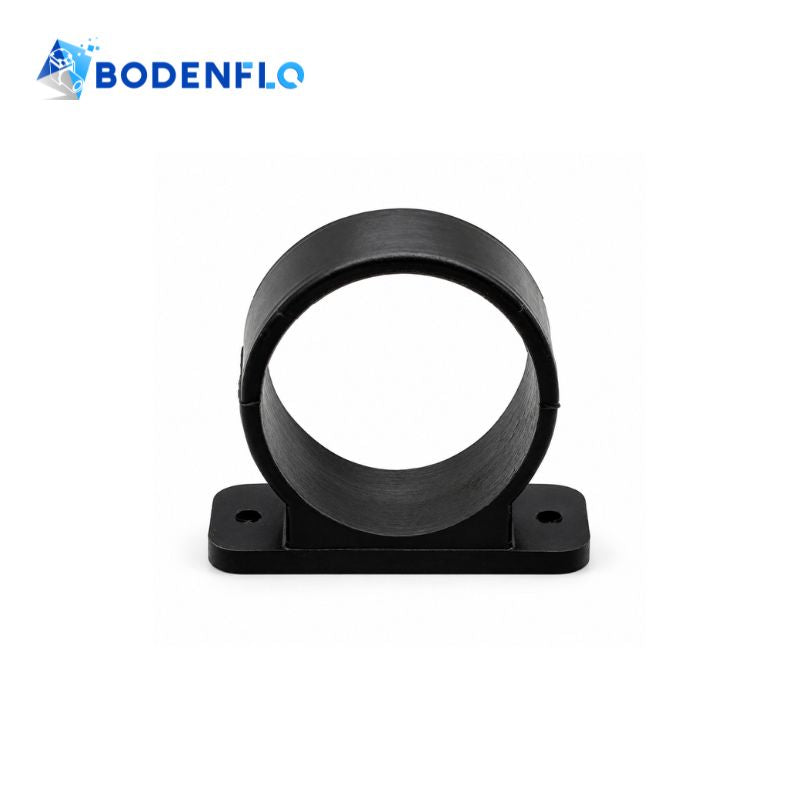

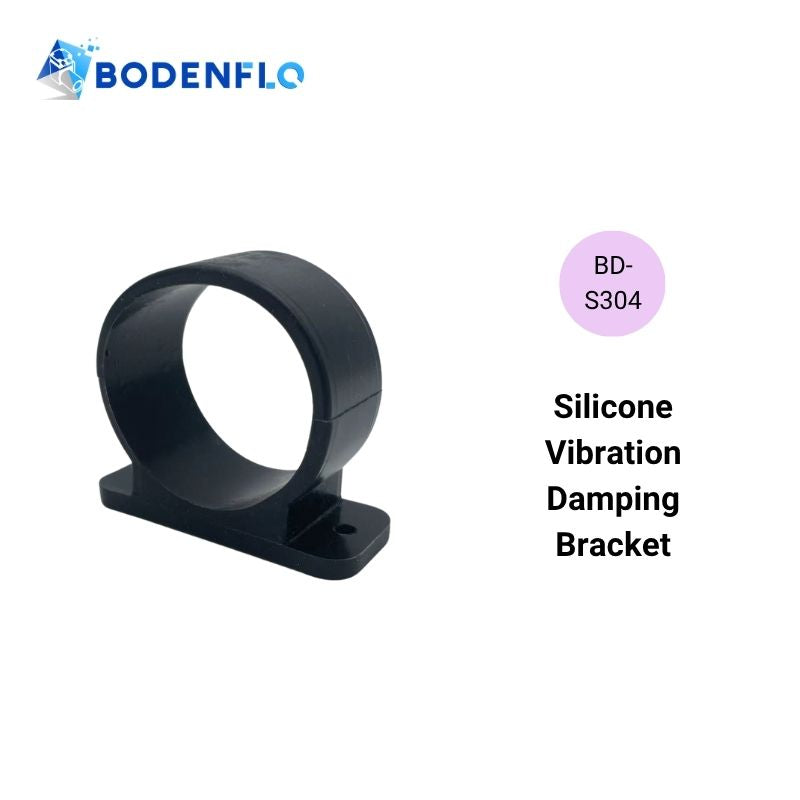

The BD-S304 Silicone Vibration Damping Bracket is designed to support secure installation and vibration reduction for compatible BODENFLO BD-04 brushed micro pumps. Made from flexible silicone with a 36 mm inner diameter, this lightweight pump vibration mount helps absorb operating vibration, reduce structure-borne noise, and minimize mechanical impact. Its compact design is suitable for BD-04 brushed series models without side mounting holes in OEM equipment and compact pneumatic systems.

Silicone Vibration Damping Bracket BD-S304 Specifications

• Name: Anti Vibration Silicone Mount
• Model: BD-S304

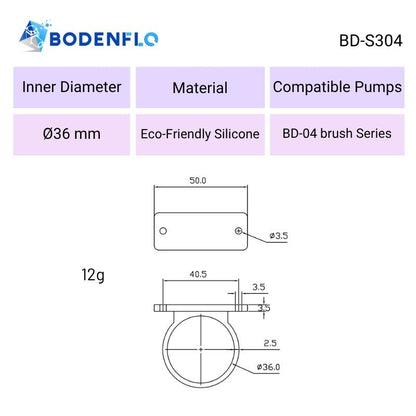

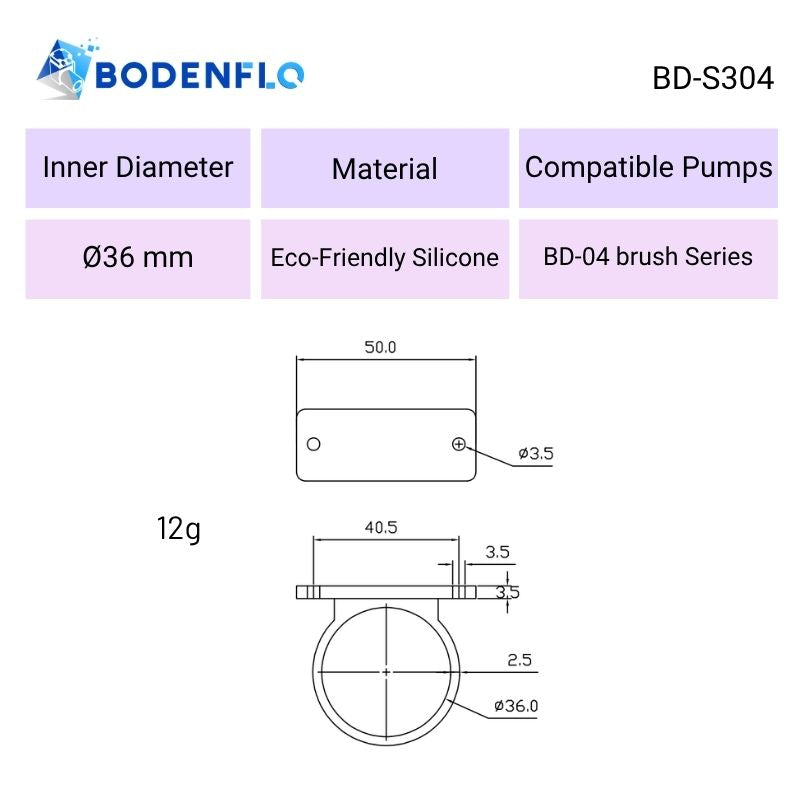

• Inner Diameter: Ø36 mm (1.42 in)
• Overall Dimensions: Approx. 50 × 20 × 44 mm (1.97 × 0.79 × 1.73 in)
• Weight: Approx. 12 g
• Material: Eco-Friendly Silicone
• Compatible Pumps: BODENFLO BD-04 Brushed Series (Models Without Side Mounting Holes)

Mini Pump Vibration Mount Features

• BD-04 Brushed Pump Compatibility: Designed for compatible BD-04 brushed micro pumps without side mounting holes, providing a practical motor mounting solution.
• Elastic Motor Housing Fit: The Ø36 mm silicone opening stretches around the Ø37.5 mm motor housing to provide a secure fit.
• Effective Vibration Damping: Flexible silicone helps absorb motor vibration and reduce structure-borne noise during pump operation.
• Compact and Lightweight: Measures approximately 50 × 20 × 44 mm and weighs 12 g, making it suitable for space-limited equipment.
• Convenient OEM Integration: Provides a mounting interface for BD-04 brushed pumps in compact pneumatic systems and industrial equipment.

Installation Guidelines

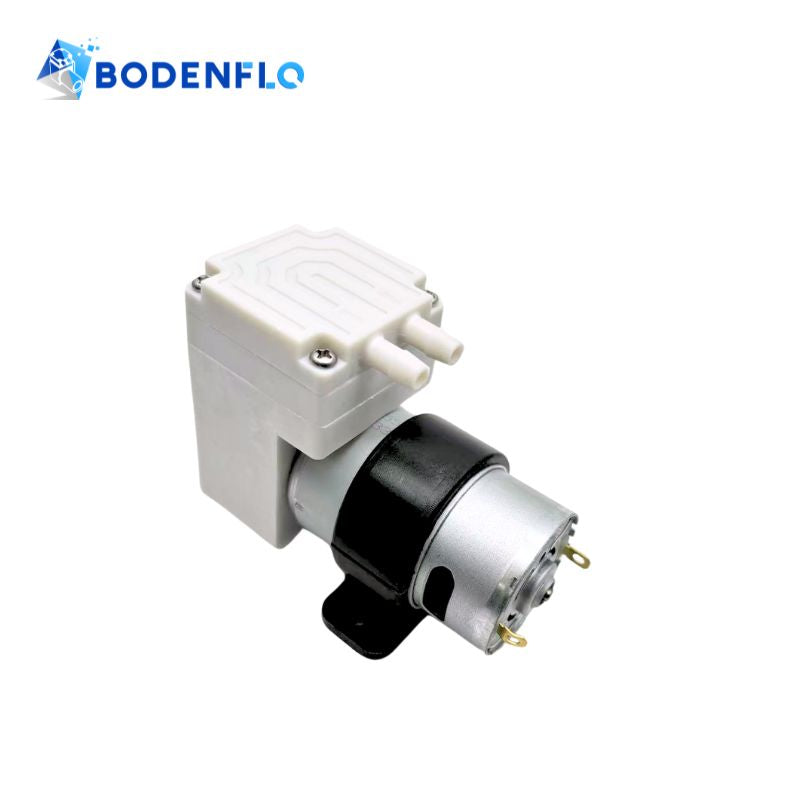

• Motor Housing Compatibility: The BD-S304 silicone bracket features a Ø36 mm inner diameter and is designed to fit the Ø37.5 mm motor housing of compatible BODENFLO BD-04 brushed series pumps.
• Pump Installation: Carefully position the silicone bracket around the motor housing. The flexible silicone material allows the bracket to stretch around the motor housing for a secure fit.
• Bracket Mounting: Secure the bracket to the equipment mounting surface using suitable mounting hardware. Verify the available installation space and mounting-hole positions before assembly.
• Vibration Isolation: Avoid excessive stretching, compression, or deformation of the silicone bracket to maintain effective vibration damping.

Compatibility with Other Miniature Pumps: For other miniature pumps, refer to the Ø37.5 mm motor housing diameter and Ø36 mm bracket inner diameter when evaluating compatibility. Confirm the motor dimensions, mounting configuration, and installation space before use.

Important Notes

• Designed for BODENFLO BD-04 brushed series models without side mounting holes. Not all BD-04 pump configurations are compatible.
• Confirm the pump's mounting diameter and installation dimensions before ordering.
• Actual vibration and noise reduction depend on pump operating conditions, mounting configuration, and equipment structure.
• Avoid excessive compression, stretching, or deformation of the silicone bracket during installation.
• Keep the bracket away from sharp edges and excessive mechanical stress that may damage the silicone material.
• Check the mounting connections periodically to ensure the pump remains securely installed.

Package & Shipping

• Package Includes: 1 × BD-S304 Silicone Vibration Damping Bracket
• Minimum Order Quantity: 1 piece
• Quantity Options: Single-piece and bulk orders available
• Lead Time: Typically 3–5 working days for in-stock items
• Express Shipping: DHL or FedEx express shipping available

Manufacturer Information

Brand: BODENFLO

Manufacturer: Shenzhen Boden Technology Development Co., Ltd.

Country of Origin: China

Engineered for Your Application. Built by BODENFLO.

Founded in Shenzhen in 2013, BODENFLO specializes in the development and manufacturing of miniature air pumps, vacuum pumps, compressors, rotary vane pumps, and liquid pumps, along with compatible accessories for OEM and industrial equipment.

In addition to our micro pump products, we offer a range of micro pump accessories to support system integration, installation, and reliable operation. Our engineering team assists customers with accessory selection, pump compatibility, connection requirements, and system integration for different applications.

Our manufacturing operations follow an ISO 9001:2015-certified quality management system.

For product compatibility inquiries or technical assistance, visit BODENFLO.
