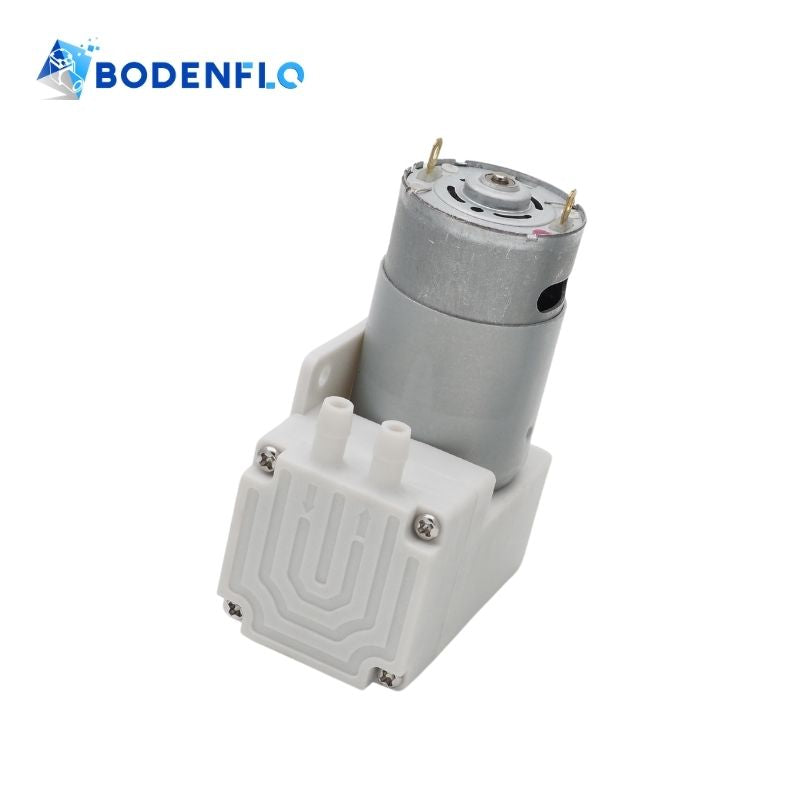

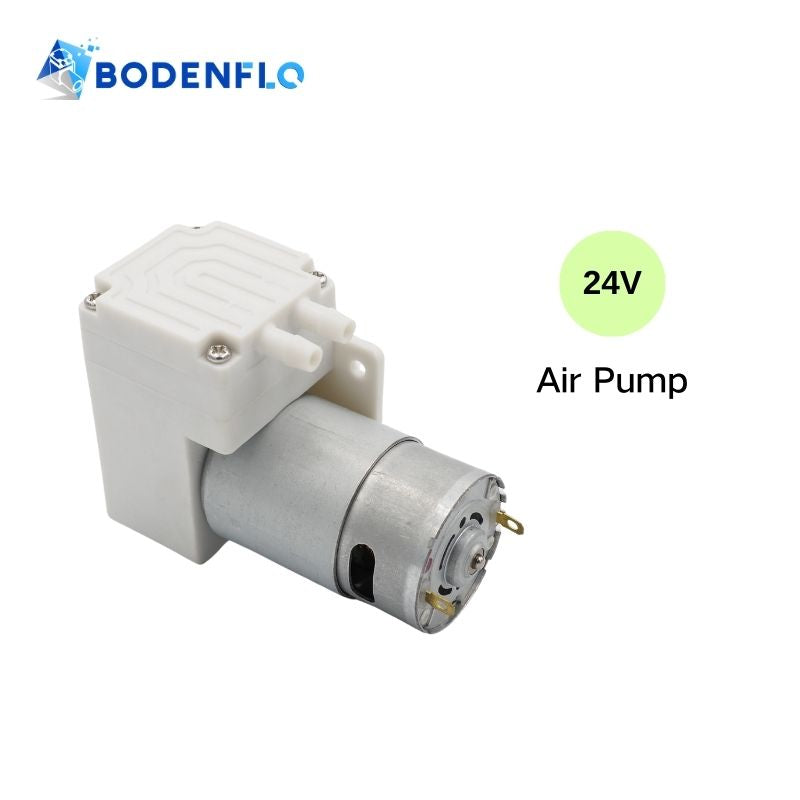

24V Small Diaphragm Air Pump 3Bar 20L for Air Purifiers Use BD-04A BODENFLO

BD-04A series is a high-performance small diaphragm air pump designed to deliver exceptional flow rates and high pressure in a compact form factor. Available in three models—BD-04A11L, BD-04A15L, and BD-04A20L—this 24V DC pump is ideal for a wide range of applications requiring efficient air pressure generation. With noise-reduction features and a durable DC brush motor, it is engineered for reliability and long-term use.

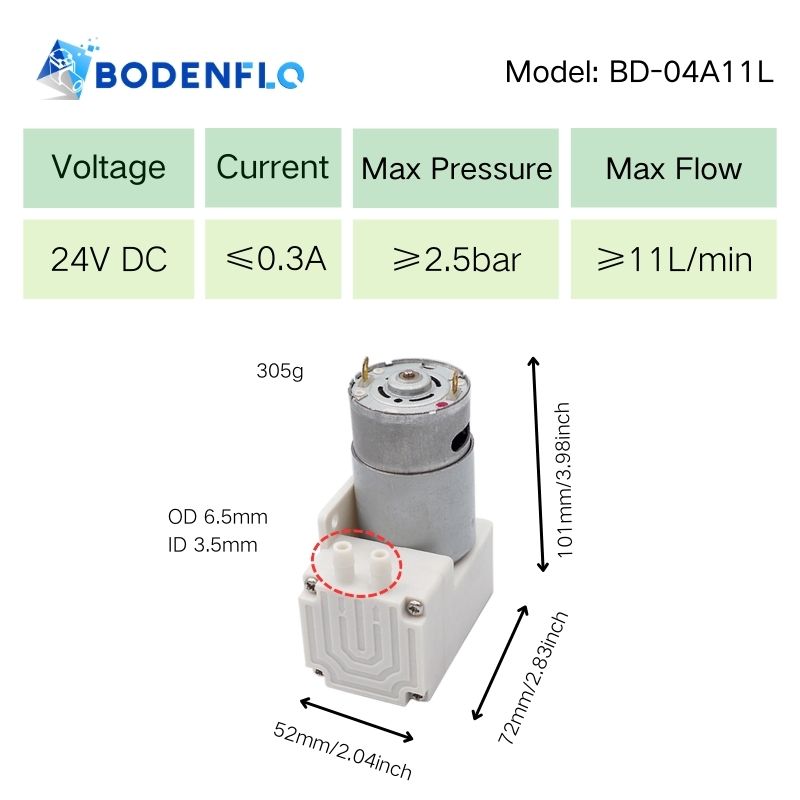

BD-04A11L Technical Specifications:

• Name: Mini Air Pump
• Model: BD-04A11L
• Rated Voltage: 24V DC
• Current : ≤0.3A
• Max Pressure: ≥2.5 bar (250 kPa / 0.25 MPa / 36.2594 psi)
• Max Flow: ≥11 L/min (11 LPM / 660 L/H)
• Noise:★

BD-04A15L Technical Specifications:

• Name: Diaphragm Air Pump
• Model: BD-04A15L
• Rated Voltage: 24V DC
• Current : ≤0.4A
• Max Pressure: ≥3 bar (300 kPa / 0.3 MPa / 43.5114 psi)
• Max Flow: ≥15 L/min (15 LPM / 900 L/H)
• Noise:★★

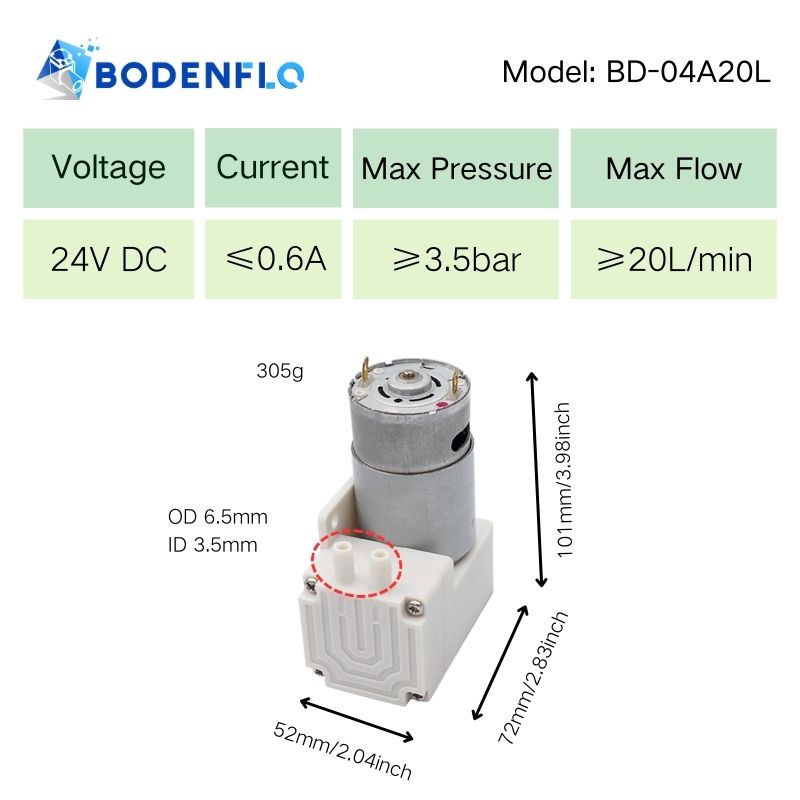

BD-04A20L Technical Specifications:

• Name: Micro Air Pump 24V
• Model: BD-04A20L
• Rated Voltage: 24V DC
• Current : ≤0.6A
• Max Pressure: ≥3.5 bar (350 kPa / 0.35 MPa / 50.7632 psi)
• Max Flow: ≥20 L/min (20 LPM / 1200 L/H)
• Noise:★★★

General Specifications

• Motor Type: DC Brush Motor
• Diaphragm Material: EPDM
• Life time: 800-1000 Hours
• Noise: ≤60-65dB(with silencer can be reduce 1-3dB)
• Dimension: 101x72x52mm
• Weight: 305g(approx.)
• Environment temperature range: 0~40℃
• Ambient humidity range: ＜80%

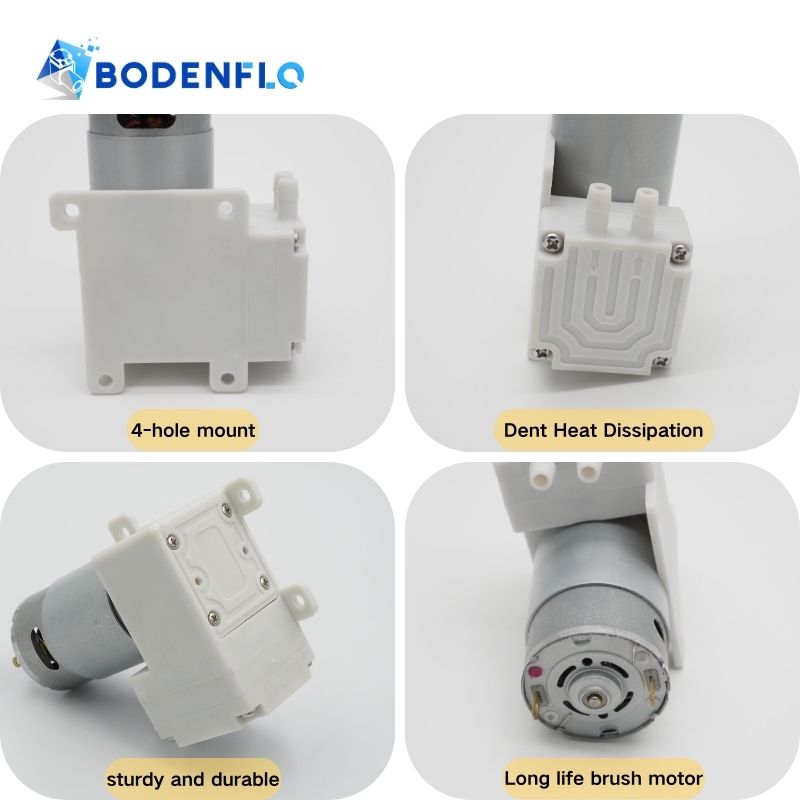

Key Features Micro Pressure Pump:

• High Pressure Capability: Capable of delivering high air pressure, suitable for precision applications.
• Long Service Life: Built for extended operational life, reducing the need for frequent maintenance.
• Stable Airflow: Delivers a consistent and reliable flow of air, ensuring optimal performance in applications.
• Wide Temperature Range: Operates effectively across a broad range of temperatures.
• Durable Construction: Made from robust materials, ensuring reliable performance in demanding conditions.

Common Applications:

• Air Purifiers: Provides steady airflow in air purifying systems, enhancing filtration efficiency.
• Filling Equipment: Controls air flow for accurate gas or liquid filling in packaging and production lines.
• Sprayers: Used in agriculture or beauty industries for precision-controlled spraying systems.

Manufacturer Information:

• Brand: BODENFLO
• Place of Origin: China

At BODENFLO, we focus on the research, development, and production of innovative micro pumps tailored to various industrial needs. With over 15 years of experience, we provide advanced solutions for automation, manufacturing, and precision industries. Our products are certified under ISO9001 standards and meet CE, RoHS, REACH, and FCC certifications, ensuring top-quality performance and safety in demanding applications.

For custom solutions or OEM services, visit our main website at bodenpump.com. Our expert team offers tailored micro pump solutions to elevate the efficiency and accuracy of your projects.
