Two micro diaphragm pumps may both be rated at 10 L/min, but why does one deliver noticeably smoother airflow than the other? The answer lies beyond the datasheet's average flow rating.

Pulsating flow is inherent to a diaphragm pump's mechanics, but its severity is not. The smoothness of the flow is determined by the pump's architecture, motor, materials, mechanical precision, and the pneumatic system it's part of. Understanding these factors is key to selecting the right pump.

As an engineer at BODENFLO, I frequently explain to clients why two pumps with identical flow ratings can perform so differently in their devices. The 10 L/min specification tells you the average throughput, but it doesn't describe the quality or stability of that flow. The real performance depends on a combination of factors: the pump's structure, motor type, diaphragm and valve materials, bearing quality, manufacturing precision, operating speed, and the pneumatic system itself. Let's break it down.

Why Does a Micro Diaphragm Pump Naturally Produce Pulsating Flow?

Before we can reduce pulsation, we must understand its origin. Why is it a fundamental characteristic of this pump type?

Pulsation is a direct result of the pump's mechanical design: a reciprocating diaphragm driven by an eccentric mechanism, which creates distinct suction and discharge strokes. The flow is delivered in pulses, not a continuous stream.

The process is cyclical: the motor's rotation is converted into back-and-forth motion, driving the diaphragm through two phases:

1. Suction Stroke: The diaphragm pulls back, creating a vacuum that draws air into the pump chamber. During this phase, there is no flow at the outlet.
2. Discharge Stroke: The diaphragm pushes forward, compressing the air and forcing it out. This creates a "pulse" of flow.

Because flow is only delivered during half of the cycle, the output is inherently uneven. To analyze this, we use these terms:

• Average Flow: The total volume over time (the 10 L/min rating).
• Instantaneous Flow: The real flow rate at any given moment.
• Flow Ripple (or Pulsation Amplitude): The difference between the peak and minimum instantaneous flow. This is the primary measure of pulsation severity.
• Pulsation Frequency: The number of pulses per second, determined by the motor's RPM.

Why Can Two 10 L/min Micro Diaphragm Pumps Have Different Pulsation?

This is a critical point. Both datasheets list the same average flow. Why does one feel smooth and the other choppy?

The rated flow specification does not describe the instantaneous flow waveform. Two pumps can have the same average flow but vastly different pulsation characteristics due to differences in their internal design and component quality.

When you select a pump based only on its 10 L/min rating, you are missing crucial information that determines its real-world performance:

• Instantaneous flow waveform: Is it a smooth wave or a sharp spike?
• Pulsation amplitude: How large is the difference between peak and minimum flow?
• Motor speed stability: Does the motor speed vary during operation?
• Pressure ripple: How much does the outlet pressure fluctuate?
• Vibration and noise level: How much mechanical instability is generated?

The key takeaway is this: Rated flow tells you how much air the pump delivers on average, but not how smoothly that air is delivered. This is often the primary reason for the performance and cost difference between a basic pump and a high-performance one.

How Do Single-Head and Dual-Head Diaphragm Pumps Differ in Pulsation?

One of the biggest architectural choices affecting pulsation is the number of pump heads. How do they compare?

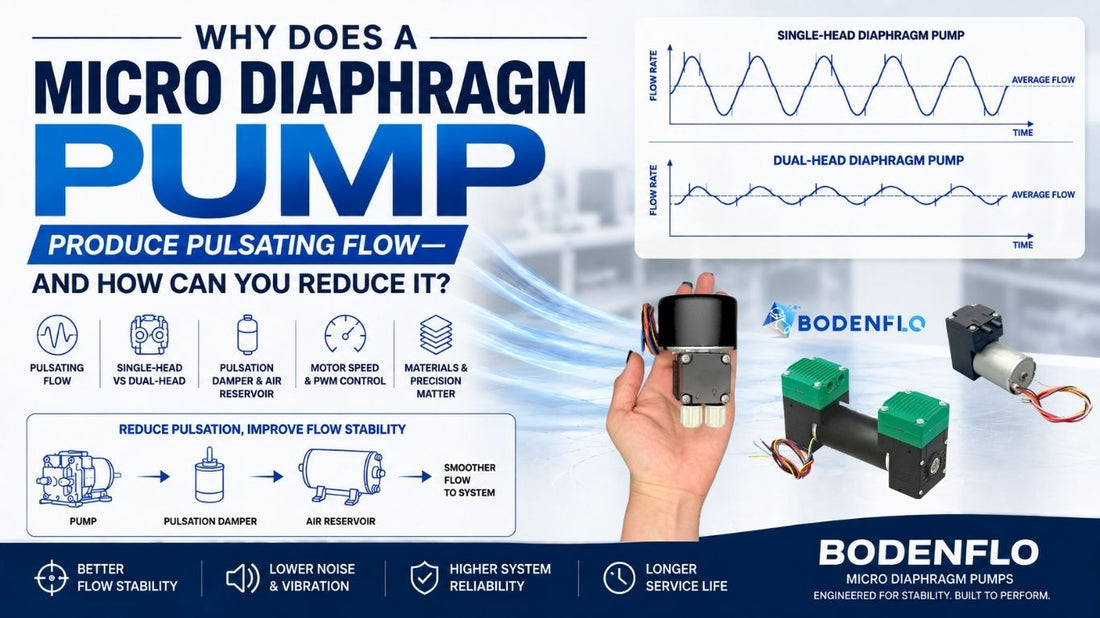

A properly designed dual-head diaphragm pump can produce significantly smoother flow than a single-head pump by phasing the discharge cycles of its two chambers to fill in each other's flow gaps.

In a single-head diaphragm pump, one chamber performs the entire suction-discharge cycle, resulting in a flow profile with distinct peaks and valleys. In a dual-head diaphragm pump, two chambers are driven by the same motor, but their eccentric mechanisms are set out of phase (typically by 180 degrees). This means while one head is discharging, the other is in its suction stroke. By combining their outputs, the valley from one head is filled by the peak from the other.

Feature	Single-Head Diaphragm Pump	Dual-Head Diaphragm Pump
Pumping Chambers	1	2 (often phased)
Flow Ripple	Generally higher	Can be significantly lower
Flow Smoothness	Moderate	Better
Size	More compact for a given flow	Larger, but often more efficient
Cost	Lower	Higher
Typical Use	General inflation, basic transfer	Higher flow, stability-critical applications

For applications where flow stability is critical, starting with a dual-head architecture is often the most effective design choice.

How Do Motor, Bearings, and Mechanical Precision Affect Flow Stability?

Beyond the number of heads, what "hidden" components differentiate a stable pump from an unstable one?

The stability and consistency of the flow are deeply linked to the quality of the motor, the precision of the bearings, and the tolerances of the entire mechanical assembly. These factors separate a high-performance pump from a basic one.

• Motor: A motor's speed stability is crucial. A low-cost brushed motor may exhibit RPM fluctuations under load or due to brush contact variations. This makes each pumping cycle slightly different, creating inconsistent flow. A high-quality brushless diaphragm pump (BLDC) with a closed-loop controller provides a much more stable speed, improving cycle-to-cycle consistency.
• Bearings: High-quality bearings are essential for stable motion. Low-precision bearings can have "play" or clearance, causing the eccentric mechanism to wobble. This tiny instability translates into inconsistent diaphragm stroke length, which directly causes flow variation. The value of a premium bearing lies in its tight tolerances, low friction, and long-term durability, ensuring repeatable mechanical motion over millions of cycles.
• Eccentric Mechanism & Precision: The entire mechanical linkage from motor to diaphragm must be precise. Any play, poor concentricity, or variation in assembly will result in inconsistent diaphragm motion and, therefore, unstable flow.

How Do Diaphragm and Valve Materials Affect Pump Pulsation?

Can the rubber and plastic parts inside the pump really make a difference in flow stability?

Absolutely. The properties of the elastomers used for the diaphragm and valves are critical for both initial performance and long-term stability.

We don't choose materials like EPDM or FKM just for chemical resistance. We analyze properties that directly impact flow dynamics:

• Elasticity & Hardness: Determines how the diaphragm deforms and how the valves respond.
• Fatigue Resistance: The ability to withstand millions of bending cycles without cracking or changing properties.
• Compression Set: A material's tendency to permanently deform under pressure. A valve with high compression set will no longer seal properly, causing leakage and reducing efficiency.

A key difference between a basic pump and a performance-oriented one is the focus on long-term flow stability. A pump with low-cost elastomers might perform well initially, but after thousands of cycles, the diaphragm can fatigue and the valves can deform. This leads to a gradual change in the flow waveform and a decrease in performance. High-performance materials are chosen for their ability to maintain their properties over the pump's entire service life.

Why Do Low-Cost and Performance-Oriented Micro Diaphragm Pumps Behave Differently?

After considering all these factors, what is the fundamental difference between a cheap pump and an expensive one with the same flow rating?

The difference lies in a complete engineering philosophy. A performance-oriented pump is designed and built with superior architecture, higher-quality components, and tighter manufacturing tolerances to achieve not just a target flow rate, but also superior stability, efficiency, and reliability.

Here is a summary of the trade-offs:

Factor	Cost-Optimized Pump	Performance-Oriented Pump
Pump Architecture	Often a simpler single-head design.	Optimized for the application (e.g., phased dual-head).
Motor	Basic motor, may have speed variance.	More stable motor system (e.g., quality BLDC).
Bearing	Standard grade.	Higher precision, more durable.
Diaphragm/Valves	Basic elastomer.	Higher-performance, long-life elastomer.
Mechanical Tolerance	Wider, allowing more part-to-part variation.	Tighter, ensuring consistent performance.
Flow Stability	Higher pulsation is common.	Designed and tested for better flow control.
Long-Term Consistency	Performance may vary over time.	Greater focus on maintaining stability.

The key purchasing insight is this: Two pumps with the same 10 L/min specification may have very different internal designs, component quality, manufacturing tolerances, and long-term flow stability.

How Do Motor Speed and Operating Pressure Affect Pump Pulsation?

Does the way you run the pump change its pulsation characteristics?

Yes. Both the motor speed (RPM) and the system's back pressure significantly influence the pump's flow pulsation.

• Motor Speed: Changing the RPM alters the pulsation frequency. However, there is no simple rule that "faster is smoother" or "slower is smoother." Each pump has an optimal operating speed range where it is most stable. Running it too fast can increase vibration and valve flutter, while running it too slow can make the individual pulses more distinct. Using PWM control on a brushless motor allows you to fine-tune the speed to find this sweet spot.
• Operating Pressure: A pump's pulsation characteristics will change under load. The flow profile at free flow (0 kPa) can be very different from the profile when working against 100 kPa of back pressure. The increased load affects the diaphragm's motion, valve dynamics, and motor current draw. Therefore, you must evaluate flow stability under your actual operating conditions, not just at free flow.

How Can You Reduce Pulsation in a Micro Diaphragm Pump System?

You've selected a pump, but the pulsation is still too high. What are your options?

You can reduce pulsation through a combination of pump selection, intelligent control, and system-level pneumatic design.

Here are the most effective methods:

1. Choose the Right Pump Architecture: If flow stability is a top priority, start with a dual-head diaphragm pump. Solving the problem at the source is often the most elegant solution.
2. Optimize Motor Speed: Use a pump with a controllable BLDC motor and PWM to operate it within its most stable speed range.
3. Add a Pulsation Damper: Install a purpose-built damper at the pump's outlet. This is highly effective for absorbing pressure spikes in a compact form factor.
4. Add a Small Air Reservoir: Placing a small, rigid tank between the pump and the application acts as a pneumatic buffer to smooth the output flow.
5. Optimize Tubing: The diameter, length, and elasticity of your tubing can influence pulsation. Experiment with different configurations, but avoid adding excessive flow restriction, which will reduce overall performance.

When Does Flow Pulsation Actually Matter?

Do all applications require ultra-smooth flow? Or is pulsation sometimes acceptable?

The need for low pulsation is entirely application-dependent. The best pump is not the one with the lowest pulsation, but the one whose characteristics match the application's needs.

• Pulsation May Be Less Critical In:
  • General inflation tasks (e.g., air cuffs, bladders).
  • Simple air transfer or circulation.
  • Basic vacuum generation for pick-and-place.
• Pulsation Can Be Critical In:
  • Gas analyzers and environmental samplers where flow stability affects measurements.
  • Medical equipment like nebulizers or ventilators.
  • Precision pressure control systems.
  • Laboratory instruments requiring stable reagent delivery.

Understanding your application's sensitivity to pulsation is the first step toward making a cost-effective and appropriate pump selection.

How Should Engineers Select a Low-Pulsation Micro Diaphragm Pump?

What questions should you ask to ensure you get a pump that meets your stability requirements?

To select the right pump, you must move beyond a single flow rate specification and define your complete set of performance requirements.

Instead of just asking, "How many L/min?" provide your supplier with a comprehensive list:

• Required average flow and operating pressure/vacuum.
• Acceptable flow pulsation or pressure ripple (if known).
• Architectural preference (single-head or dual-head).
• Motor type and speed control requirements (brushed, BLDC, PWM).
• Noise and vibration limits.
• Duty cycle and expected service life.
• A description of your application and system (tubing size, volume).

At BODENFLO, our selection process is based on this holistic view: Flow + Pressure/Vacuum + Pulsation + Motor + Architecture + Materials + System Design.

Conclusion

Pulsation is inherent to micro diaphragm pump operation, but its magnitude depends on far more than the pumping principle itself. Pump head architecture, motor stability, bearing precision, material science, manufacturing tolerances, and system design all play a crucial role. By understanding these factors, you can select a pump that delivers not just the right quantity of flow, but the right quality of flow for your application.

BODENFLO provides a wide range of micro diaphragm pumps, including single-head and dual-head designs, brushed and brushless motor options, and customized pump solutions for applications requiring stable airflow, pressure, vacuum, and long service life.

If your application requires better flow stability or lower pulsation, send us your flow rate, operating pressure or vacuum, voltage, duty cycle, and application requirements. Our engineering team can help evaluate the appropriate pump architecture and system configuration.
